8AB36-2420-LJ-PR datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8AB36-2420-LJ-PR

8AB36-2420-LJ-PR: Description36 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size702KB，8 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

8AB36-2420-LJ-PR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8AB36-2420-LJ-PR	-	-	View	Buy Now

8AB36-2420-LJ-PR Overview

36 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, ROHS COMPLIANT

8AB36-2420-LJ-PR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	3M
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8AB36
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

™

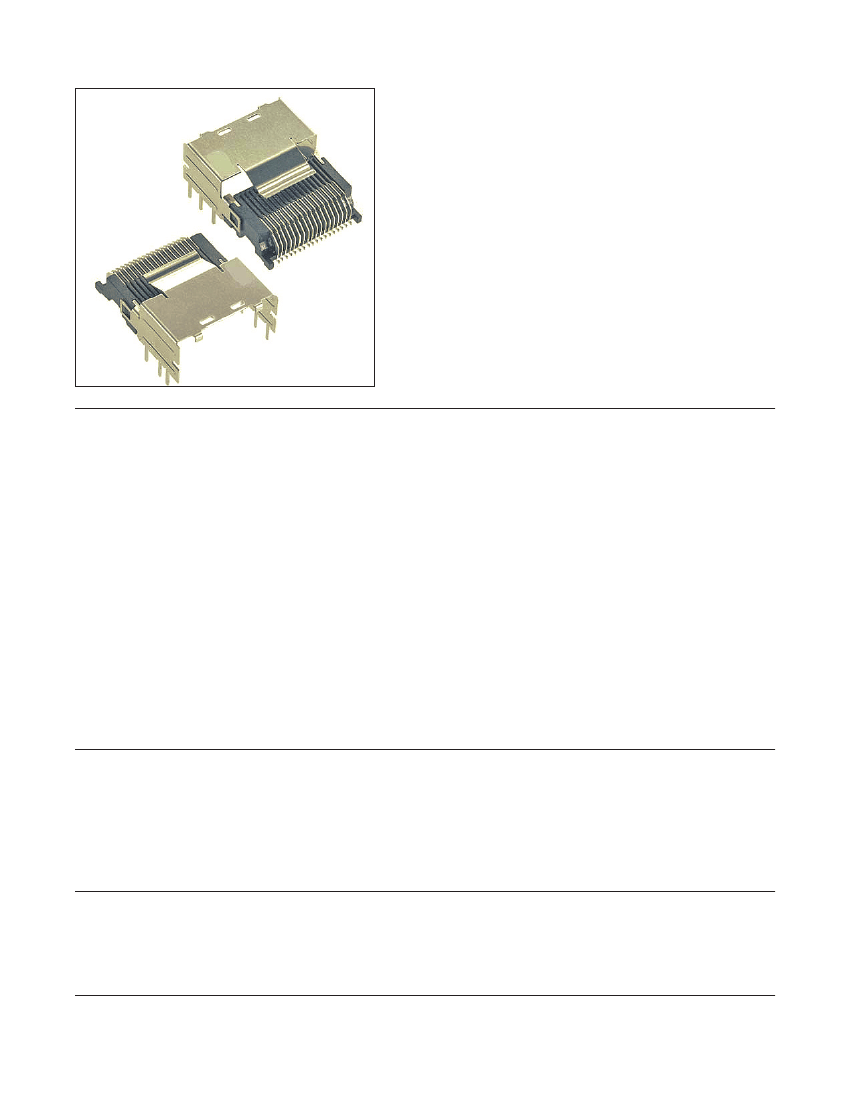

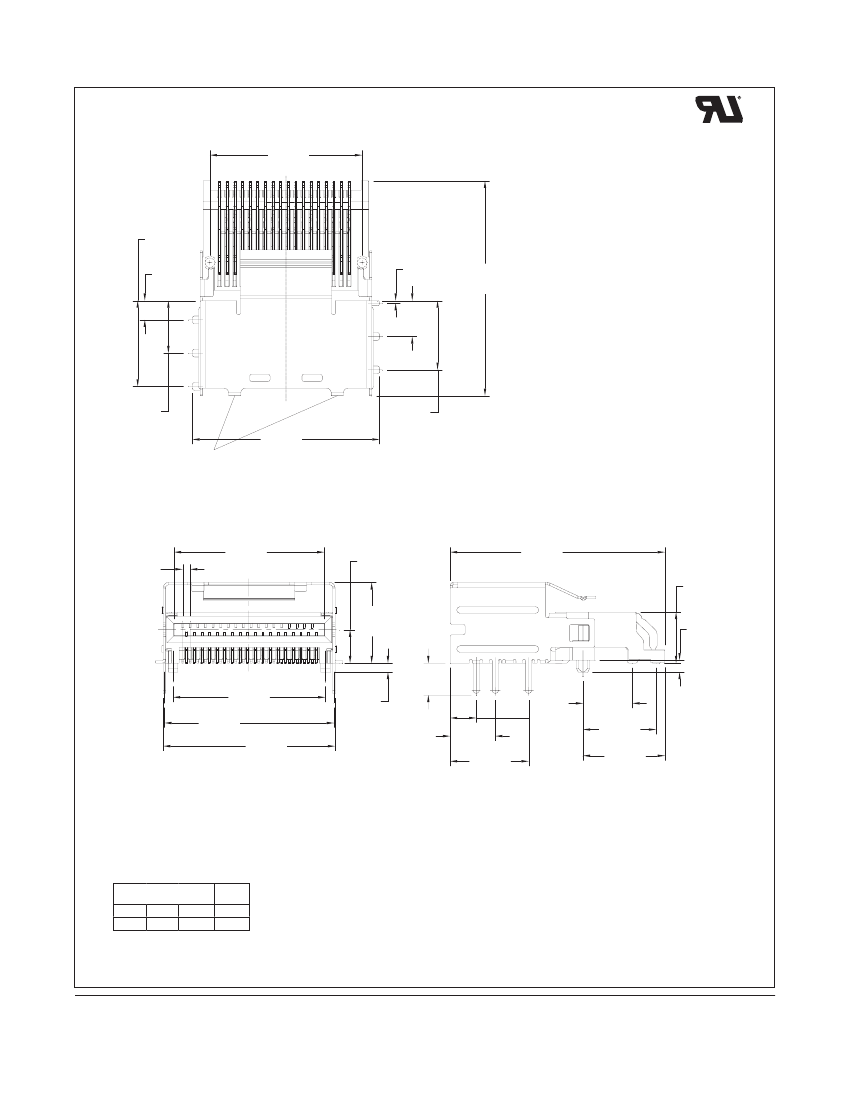

Mini Serial Attached SCSI (miniSAS) Connector Assembly

Internal Right Angle Combo Connector

8AB36 Series

• Capable of 6 Gbps per channel data rate

• Combination receptacle/shell assembly to facilitate

board assembly

• Available with pre-positioning housing to facilitate

automated pick-and-place

• Multiple tail types and lengths available on shell

guide

• Multiple keying options available

• Meets SFF-8086 Specification

• Meets SAS Specification, SAS-2

• See Regulatory Information Appendix (RIA) for

chemical compliance information

Date Modified: February 22, 2008

TS-2208-D

Sheet 1 of 5

Physical

Insulation:

Material: High Temperature Thermoplastic

Flammability: UL 94V-0

Color: Black

Contact:

Material: Copper Alloy

Plating:

Underplating: 50 μ” min. [ 1.27 μm ] Nickel

Wiping Area: 30 μ” min. [ 0.76 μm ] Gold

Solder Tails: 100 μ” min. [ 2.54 μm ] Matte Tin

Backshell:

Material: Stainless Steel

Wiping Area: 30 μ” min. [ 0.76 μm ] Nickel

Electrical

Connector:

Current Rating:

Per Contact: 0.5 A

Insulation Resistance:

MΩ min.

Withstanding Voltage:

300 V

min. for 1 minute

Environmental

Operating Temperature:

-20°C to +85°C (connector and shell)

UL File No.: E68080

Electronic Solutions Division

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

8AB36-2420-LJ-PR Related Products

	8AB36-2420-LJ-PR	8AB36-2331-LJ-PR	8AB36-2332-LJ-PR	8AB36-2332-LJ-PP	8AB36-2421-LJ-PR	8AB36-2421-LJ-PP	8AB36-2422-LJ-PP
Description	36 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, ROHS COMPLIANT	36 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT	36 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT	36 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT	36 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, ROHS COMPLIANT	36 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, ROHS COMPLIANT	36 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	3M	3M	3M	3M	3M	3M	3M
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN OVER NICKEL	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Termination type	SOLDER	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SOLDER	SOLDER	SOLDER
Total number of contacts	36	36	36	36	36	36	36
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	3M	-	3M	3M	3M	-	-
Manufacturer's serial number	8AB36	-	8AB36	8AB36	8AB36	8AB36	8AB36
