HI05-1A71: DescriptionDRY REED RELAY, SPST, MOMENTARY, 0.008A (COIL), 5VDC (COIL), 40mW (COIL), 0.5A (CONTACT), 200VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size122KB，2 Pages; ManufacturerMEDER electronic ( Standex ); Websitehttps://standexelectronics.com

Download Datasheet Parametric View All

HI05-1A71 Overview

DRY REED RELAY, SPST, MOMENTARY, 0.008A (COIL), 5VDC (COIL), 40mW (COIL), 0.5A (CONTACT), 200VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

HI05-1A71 Parametric

Parameter Name	Attribute value
Minimum operating temperature	-20 Cel
Maximum operating temperature	70 Cel
state	Active
Relay type	DRY REED RELAY
width	7.5 mm
high	7.9 mm
length or diameter	28 mm
Maximum DC coil current	0.0080 A
coil_input_supply_type	DC
DC coil operating voltage	3.5 V
coil_power__mw_	40
DC coil release voltage	0.7500 V
Coil resistance	660 ohm
Maximum DC coil voltage	5 V
contact_ac_max_rating_r_load	.5A@200VAC
Maximum AC contact current	0.5000 A
Maximum DC contact current	0.5000 A
contact_dc_max_rating_r_load	.5A@200VDC
contact_output_supply_type	AC/DC
Maximum AC contact voltage	200 V
Maximum DC contact voltage	200 V
Electrical life	1.00E9 Cycle(s)
Manufacturer Series	HI
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.5000 ms
Dimensions	28mm x 7.5mm x 7.9mm
Relay action	MOMENTARY
Relay function	SPST
release time	0.1000 ms
Terminal type	SOLDER

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

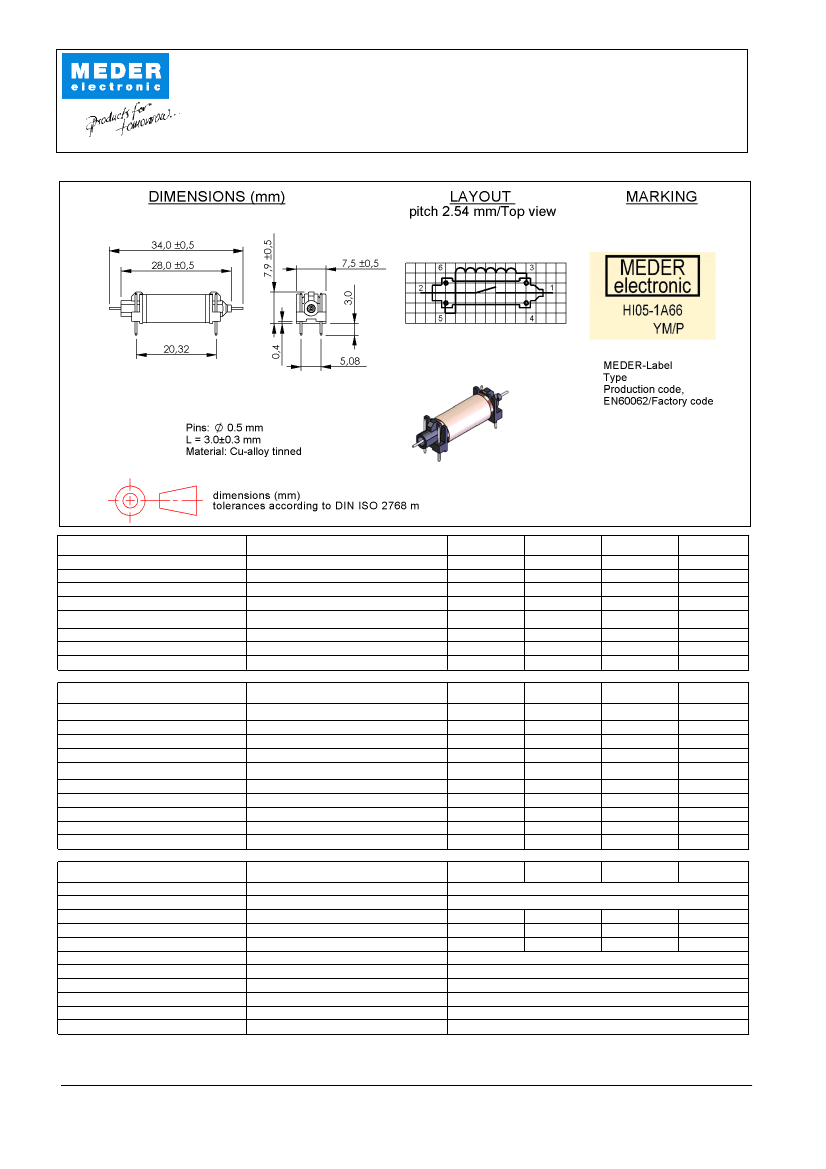

Item No.:

3905171000

Item:

HI05-1A66

HI05-1A71

Coil Data at 20 °

C

Coil resistance

Coil voltage

Rated power

Coil current

Thermal resistance

Inductance

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

=

operating temperature + self heating

!

"

Contact data 66/3

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage ( < 20 AT )

Operate time incl. bounce

Release time

Capacity

Conditions

#

$% &'# '%# %( )

not to exceed their individual max.'s

Min

Typ

Max

!

Unit

DC or Peak AC

* + , -'

Start Value

!

"

0

+

1

. %/ , '/

RH <45 %, 100 V test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

Special Product Data

Number of contacts

Contact - form

Dielectric Strength Coil/Contact

Insulation resistance Coil/Contact

Capacity Coil/Contact

Case colour

Housing material

Sealing compound

Connection pins

Magnetic Shield

Reach / RoHS conformity

Conditions

according to IEC 255-5

RH <45%, 100 VDC test voltage

@ 10 kHz

Min

Typ

1

A - NO

Max

2

0

Unit

!

black

PPE + PS

Silicon

CuSn6, tinned

no

yes

1

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

12.11.08

08.03.10

Designed by:

Last Change by:

MPOTUZAK

KOLBRICH

Approval at:

27.11.08

08.03.10

Approval by:

DSTASTNY

KOLBRICH

Version:

05
