2SD1898I datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> 2SD1898I

2SD1898I: Description80V,1A,Medium Power NPN Bipolar Transistor, Diodes, NPN, 80V, 1A, 82, 390, 3V; CategoryDiscrete semiconductor; File Size190KB，5 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

2SD1898I Overview

80V,1A,Medium Power NPN Bipolar Transistor, Diodes, NPN, 80V, 1A, 82, 390, 3V

2SD1898I Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
package instruction	,
Reach Compliance Code	unknown
category
polarity	NPN
V(BR)CEO (V) min.	80
IC (A)	1
hFE min	82
hFE max	390
Condition1_VCE (V)	3
Condition1_IC (mA)	500
VCE (sat) (V)	0.4
Condition2_IC (mA)	500
Condition2_IB (mA)	20
fT (MHz) min.	100(typ)
PD (W) max.	1
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	3
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	TO-251

Preview

Download Datasheet

View All

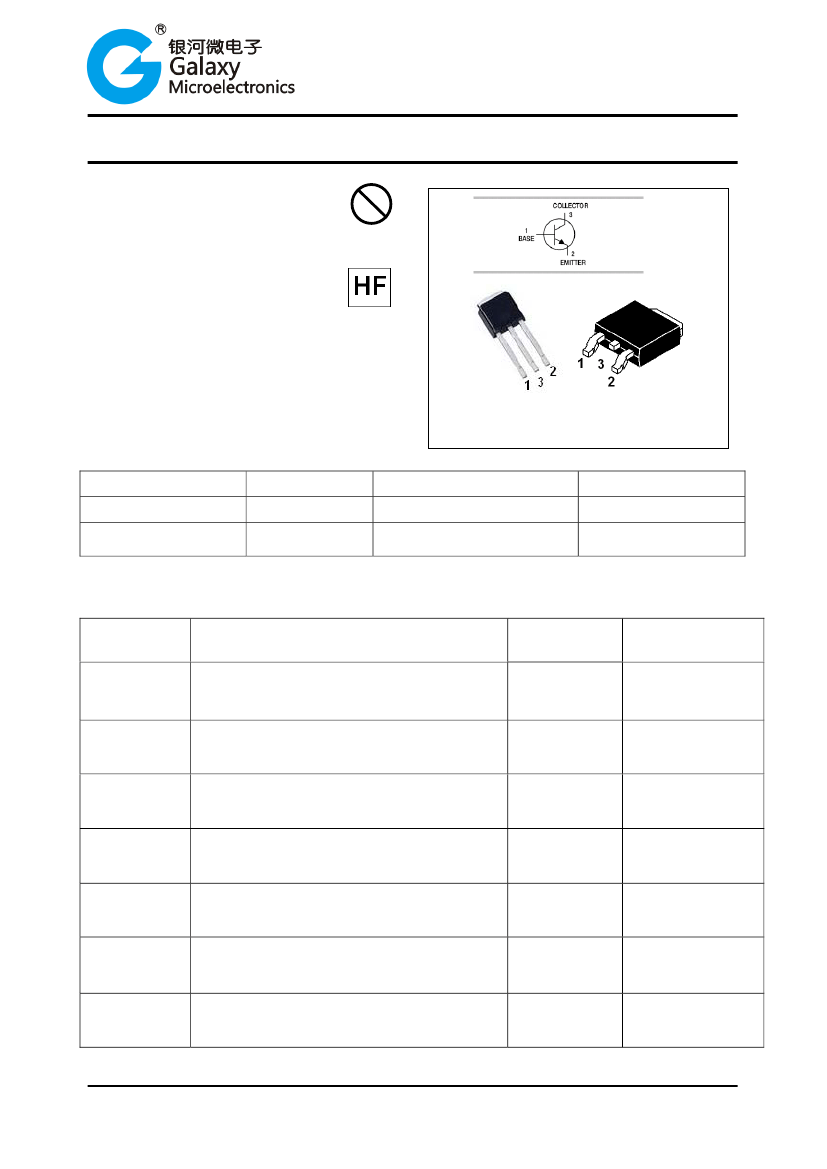

Product specification

Power Transistor(80V,1A)

FEATURES



High V

CEO

=80V.

High I

=1A(DC)

Good H

Linearity.

Low V

CE(sat).

Complement the 2SB1260.

2SD1898

Lead-free

APPLICATIONS



NPN silicon transistor.

2SD1898I

TO-251

2SD1898D

TO-252

Ordering Information

Part Number

Package

Shipping

Marking Code

2SD1898I□

2SD1898D□

□:

none is for Lead Free package;

TO-251

TO-252

80/Tube

80/Tube or2500/Tape Reel

D1898I

D1898D

“G” is for Halogen Free package.

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Symbol

Parameter

Collector-Base Voltage

Value

Units

CBO

120

CEO

Collector-Emitter Voltage

EBO

Emitter-Base Voltage

Collector Current -Continuous

Collector Current -pulse

1.0

1.3

Note1

℃

Collector Dissipation

stg

Junction and Storage Temperature

-55 to +150

Note1:Mounted on ceramic substrate(250mm

*0.8t)

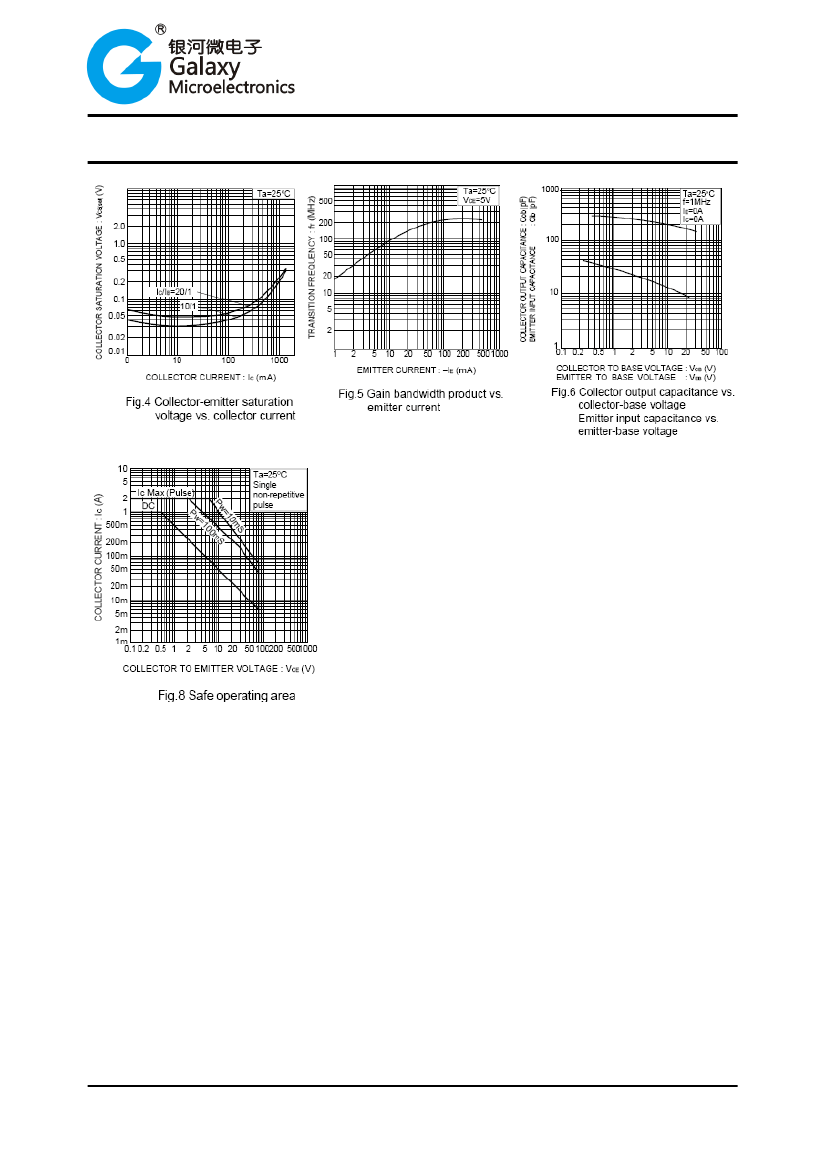

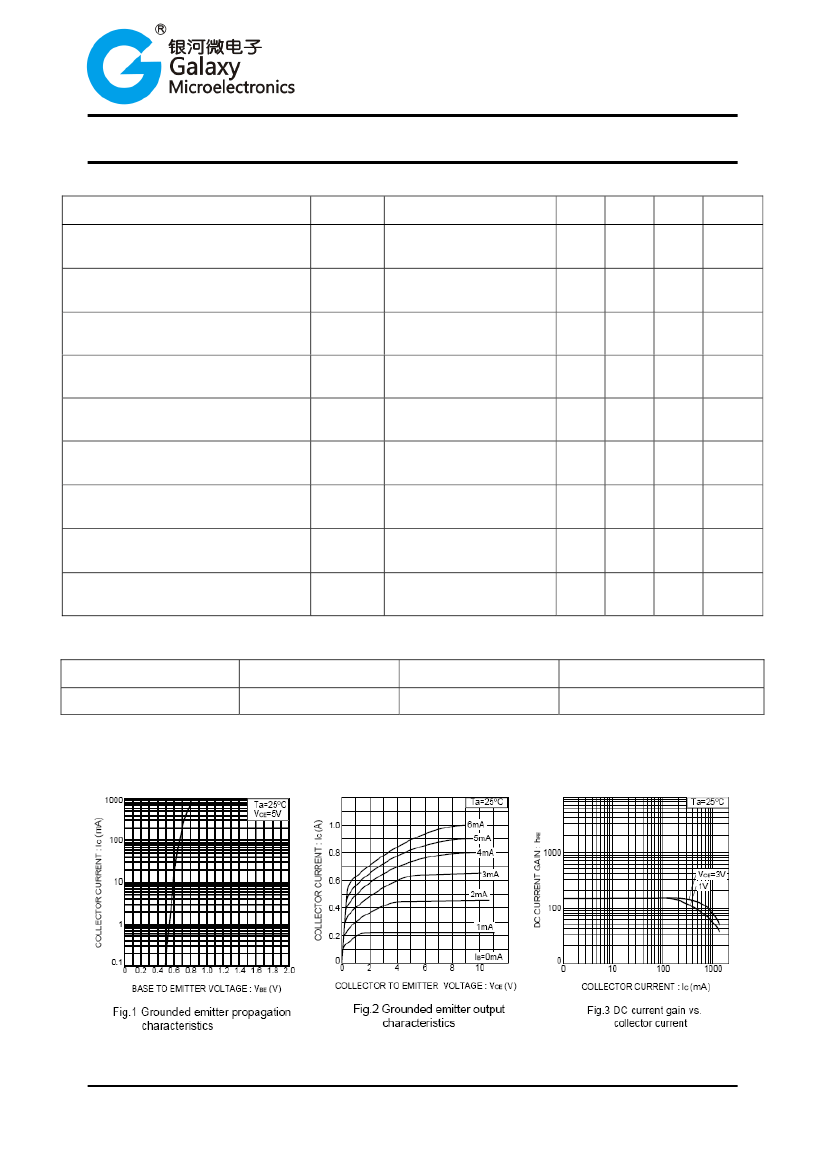

STM0256A

www.gmesemi.com
