BLA1117-5.0 datasheet, PDF - EEWORLD Datasheet

BLA1117-5.0: Description5V,800mA,Low Dropout Voltage Regulator (LDO), 5V, 800mA, 20V, 1.2V, 5mA, 500mW, NO; File Size283KB，6 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

BLA1117-5.0 Overview

5V,800mA,Low Dropout Voltage Regulator (LDO), 5V, 800mA, 20V, 1.2V, 5mA, 500mW, NO

BLA1117-5.0 Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Reach Compliance Code	unknown
VO (V)	5
IO (mA) typ.	800
VI (V) max.	20
VDO (V) typ.	1.2
Iq (mA) typ.	5
PD (mW)	500
AEC Qualified	NO
Maximum operating temperature	125
Minimum operating temperature	0
MSL level	3
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOT-89

Preview

Download Datasheet

View All

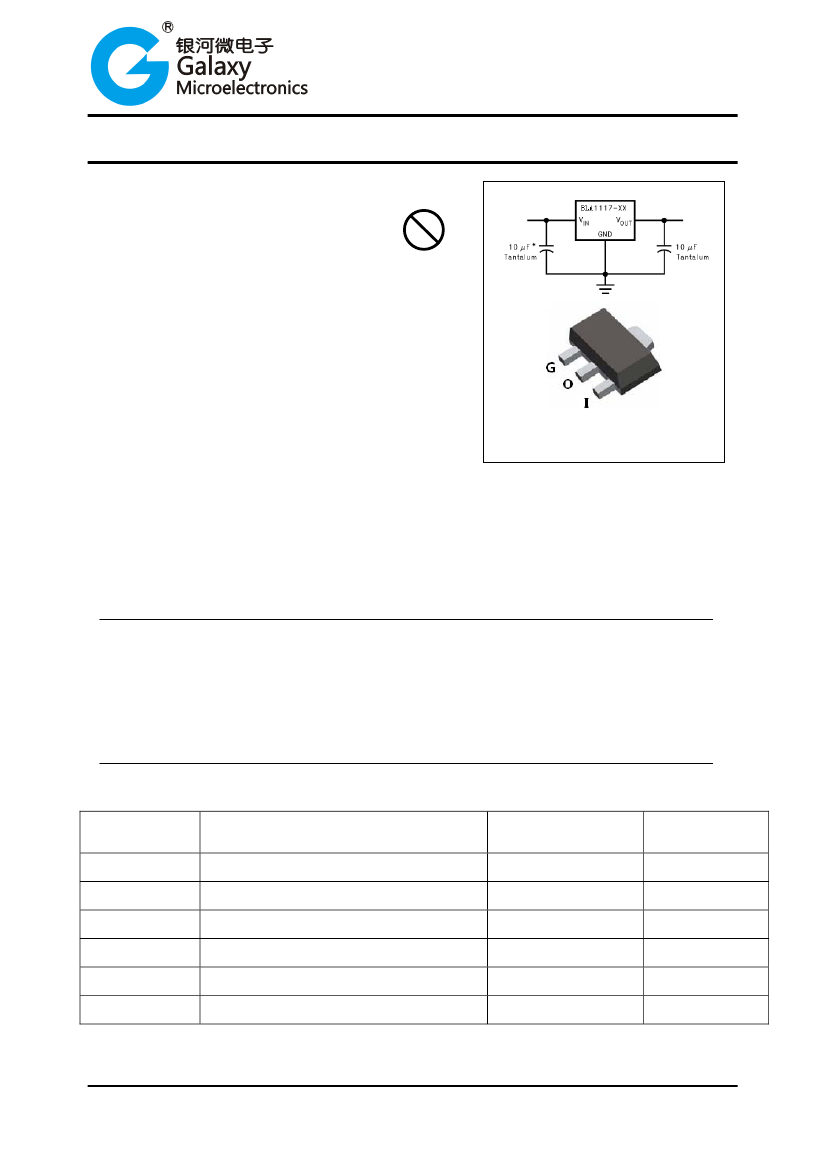

Production specification

800 mA Low-Dropout Linear Regulator

FEATURES

Available in 1.5V,1.8V,2.5V,2.85V,3.3V

5V,and Adjustable Versions.

Current Limiting and Thermal Protection.

Output Current(800mA).

Line Regulation(0.2%Max).

Load Regulation(0.4%Max).

BLA1117-XX

Lead-free

APPLICATIONS

Post Regualtor for Switching DC/DC Converter.

High Efficiency Linear Regulators.

Battery Charger.

Batterty Powered Instrumentation.

SOT-89

ORDERING INFORMATION

Type No.

BLA1117-ADJ

BLA1117-1.5

BLA1117-1.8

BLA1117-2.5

BLA1117-2.85

BLA1117-3.3

BLA1117-5.0

Marking

1117-ADJ

1117-1.5

1117-1.8

1117-2.5

1117-2.85

1117-3.3

1117-5.0

Package Code

SOT-89

MAXIMUM RATING

operating temperature range applies unless otherwise specified

Symbol

stg

Parameter

Input voltage

Maximum output current

Power dissipation

Storage temperature range

Value

800

500

-65 to +150

11.5

Units

℃

Thermal Resistance Junction-case

Thermal Resistance Junction-lead

°C

E091

Rev.A

www.gmesemi.com

BLA1117-5.0 Related Products

	BLA1117-5.0	BLA1117-1.5	BLA1117-1.8	BLA1117-2.5	BLA1117-2.85	BLA1117-3.3	BLA1117-ADJ
Description	5V,800mA,Low Dropout Voltage Regulator (LDO), 5V, 800mA, 20V, 1.2V, 5mA, 500mW, NO	1.5V,800mA,Low Dropout Voltage Regulator (LDO), 1.5V, 800mA, 20V, 1.2V, 5mA, 500mW, NO	1.8V,800mA,Low Dropout Voltage Regulator (LDO), 1.8V, 800mA, 20V, 1.2V, 5mA, 500mW, NO	2.5V,800mA,Low Dropout Voltage Regulator (LDO), 2.5V, 800mA, 20V, 1.2V, 5mA, 500mW, NO	2.85V,800mA,Low Dropout Voltage Regulator (LDO), 2.85V, 800mA, 20V, 1.2V, 5mA, 500mW, NO	3.3V,800mA,Low Dropout Voltage Regulator (LDO), 3.3V, 800mA, 20V, 1.2V, 5mA, 500mW, NO	Adjustable,800mA,Low Dropout Voltage Regulator (LDO), ADJV, 800mA, 20V, 1.2V, 1.7mA, 350mW, NO
Maker	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
VO (V)	5	1.5	1.8	2.5	2.85	3.3	ADJ
IO (mA) typ.	800	800	800	800	800	800	800
VI (V) max.	20	20	20	20	20	20	20
VDO (V) typ.	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Iq (mA) typ.	5	5	5	5	5	5	1.7
PD (mW)	500	500	500	500	500	500	350
AEC Qualified	NO	NO	NO	NO	NO	NO	NO
Maximum operating temperature	125	125	125	125	125	125	125
MSL level	3	3	3	3	3	3	1
Is it lead-free?	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Comply with Reach	Yes	Yes	Yes	Yes	Yes	Yes	Yes
RoHS compliant	Yes	Yes	Yes	Yes	Yes	Yes	Yes
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Package Outlines	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-23
Parts packaging code	-	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89
Contacts	-	3	3	3	3	3	3
