DLC03 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> DLC03

DLC03: Description3.3V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 3.3V, 4V, -V, 5uA; CategoryDiscrete semiconductor; File Size227KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

DLC03 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DLC03	-	-	View	Buy Now

DLC03 Overview

3.3V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 3.3V, 4V, -V, 5uA

DLC03 Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Reach Compliance Code	unknown
category
Condition	8×20us
PPK (W)	350
VRWM (V) max.	3.3
VBR (V) min.	4
VBR (V) max.	-
IR (uA) max.	5
VC (V) max.	19
Condition1_IPP (A)	20
C (pF) max.	1(typ)
AEC Qualified	NO
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	1
Is it lead-free?	YES
Comply with Reach	YES
RoHS compliant	YES
ECCN code	EAR99
Package Outlines	SOD-323

Preview

Download Datasheet

View All

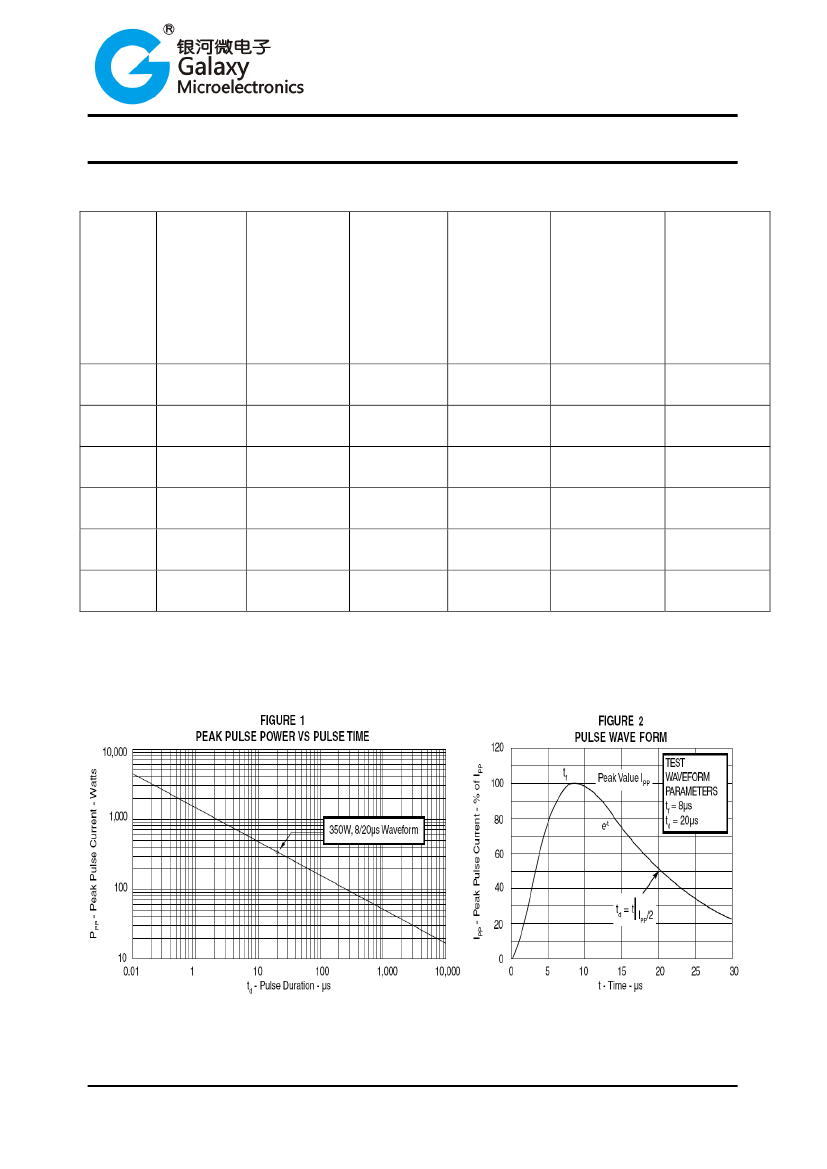

Product specification

Ultralow Capacitance TVS Array

FEATURES

350 Watts Peak Pulse Power per Line (tp = 8/20μs)

Unidirectional & Bidirectional Configurations

Replacement for MLV (0805)

Protects One Power or I/O Port

ESD Protection > 40 kilovolts

Low Clamping Voltage

Available in Multiple Voltage Types Ranging from 3V to 24V

DLC03-24

Lead-free

SOD-323

MSL 1

APPLICATIONS

Ethernet - 10/100/1000 Base T

Cellular Phones

Handheld - Wireless Systems

Personnal Digital Assistant (PDA)

USB Interface

ORDERING INFORMATION

Type No.

DLC03

□

DLC05

□

DLC08

□

DLC12

□

DLC15

□

DLC24

□

□:

none is for Lead Free package;

“G” is for Halogen Free package.

Marking

Package Code

SOD-323

MAXIMUM RATING

@ Ta=25℃

Parameter

unless otherwise specified

Symbol

-SeeFigure 1

STG

Limits

350

-55 to+150

Unit

℃

Peak pulse power dissipation(t

=8/20μs)

Operating temperature

Storage temperature

TVM0501A

www.gmesemi.com

DLC03 Related Products

	DLC03	DLC15	DLC12	DLC05	DLC08	DLC24
Description	3.3V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 3.3V, 4V, -V, 5uA	15V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 15V, 16.7V, -V, 1uA	12V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 12V, 13.3V, -V, 1uA	5V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 5V, 6V, -V, 5uA	8V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 8V, 8.5V, -V, 2uA	24V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 24V, 26.7V, -V, 1uA
Maker	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Condition	8×20us	8×20us	8×20us	8×20us	8×20us	8×20us
PPK (W)	350	350	350	350	350	350
VRWM (V) max.	3.3	15	12	5	8	24
VBR (V) min.	4	16.7	13.3	6	8.5	26.7
IR (uA) max.	5	1	1	5	2	1
VC (V) max.	19	31.8	28.6	20	18.5	56
Condition1_IPP (A)	20	10	11	20	17	6
C (pF) max.	1(typ)	1(typ)	1(typ)	1(typ)	1(typ)	1(typ)
AEC Qualified	NO	NO	NO	NO	NO	NO
Maximum operating temperature	150	150	150	150	150	150
Minimum operating temperature	-55	-55	-55	-55	-55	-55
MSL level	1	1	1	1	1	1
Is it lead-free?	YES	YES	YES	YES	YES	YES
Comply with Reach	YES	YES	YES	YES	YES	YES
RoHS compliant	YES	YES	YES	YES	YES	YES
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Package Outlines	SOD-323	SOD-323	SOD-323	SOD-323	SOD-323	SOD-323
