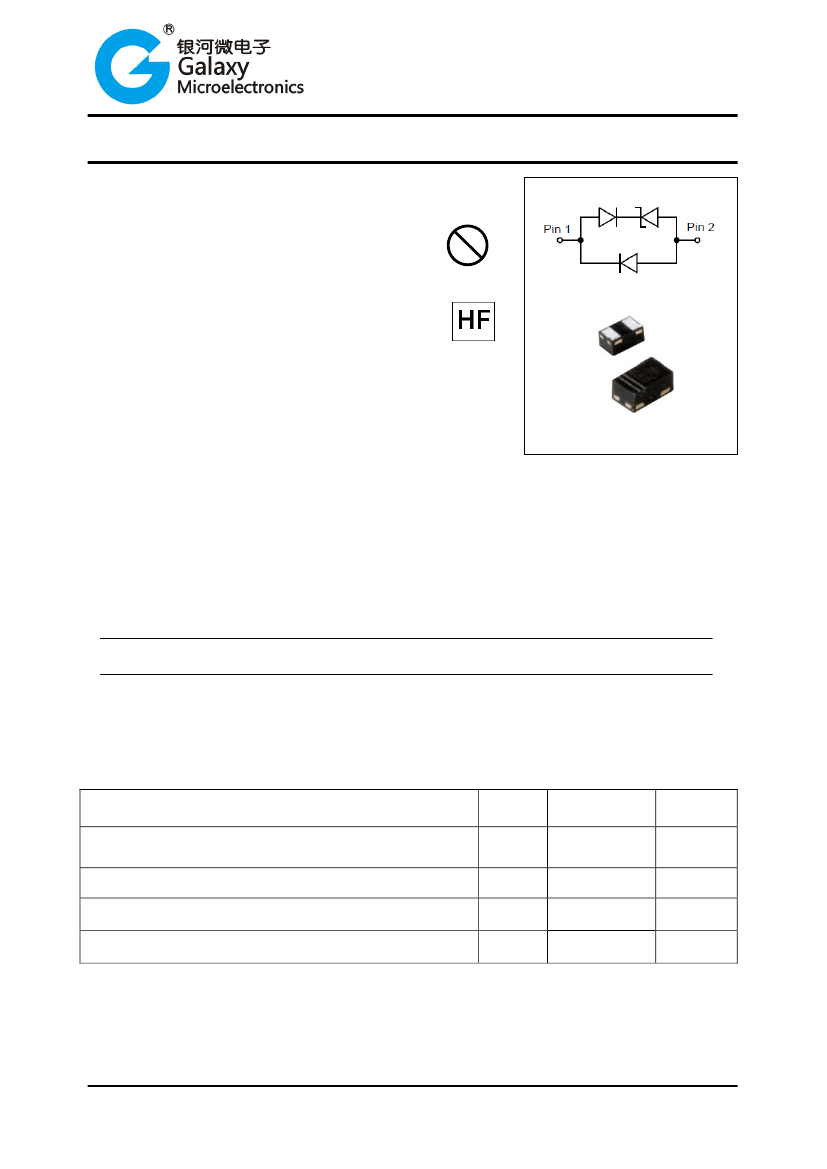

Product specification
Ultralow Capacitance TVS Array
FEATURES
ESD / Transient protection of high speed data lines exceeding
– IEC61000-4-2 (ESD): ±20 kV (air / contact)
– IEC61000-4-4 (EFT): 2.5 kV / 50 A (5/50 ns)
– IEC61000-4-5 (surge): 3 A (8/20
μs)
Maximum working voltage: VRWM = 5.3 V
Ultra low capacitance: CL = 0.4 pF (typical)
DLC05-L
Pb
Lead-free
Low clamping voltage, low dynamic resistance
RDYN = 0.6
Ω
(typical)
Pb-free (RoHS compliant) and halogen free package
MSL 1
DFN1006-2
APPLICATIONS
USB 2.0, Mobile HDMI Link, MDDI, MIPI, etc
HDMI, DisplayPort, DVI, Ethernet, Firewire, S-ATA
ORDERING INFORMATION
Type No.
DLC05-L
□
□:
none is for Lead Free package;
“G” is for Halogen Free package.
Marking
C05
Package Code
DFN1006-2
MAXIMUM RATING
@ Ta=25℃
Parameter
ESD (air / contact) discharge
unless otherwise specified
Symbol
Limits
20
3
-55+125
-65+150
Unit
KV
A
℃
℃
IEC61000-4-2
V
ESD
I
PP
T
OP
T
STG
Peak pulse current (tp = 8/20
μs)
IEC61000-4-5
Operating temperature range
Storage temperature
TVM0088A
www.gmesemi.com
1
Product specification
Ultralow Capacitance TVS Array
DLC05-L
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Rated
Stand-off
PART
NUMBER
Voltage
V
WM
VOLTS
Minimum
Breakdown
Voltage
@ 1mA
V
(BR)
VOLTS
DLC05-L
5.3
6.0
15V @ 3A
0.1
0.4
MAX
Clamping Voltage
V
C
@ I
PP
IEC61000-4-5
Maximum
LeakageCurrent
@V
WM
I
D
μA
Typical
Capacitance
@0V，1MHz
C
pF

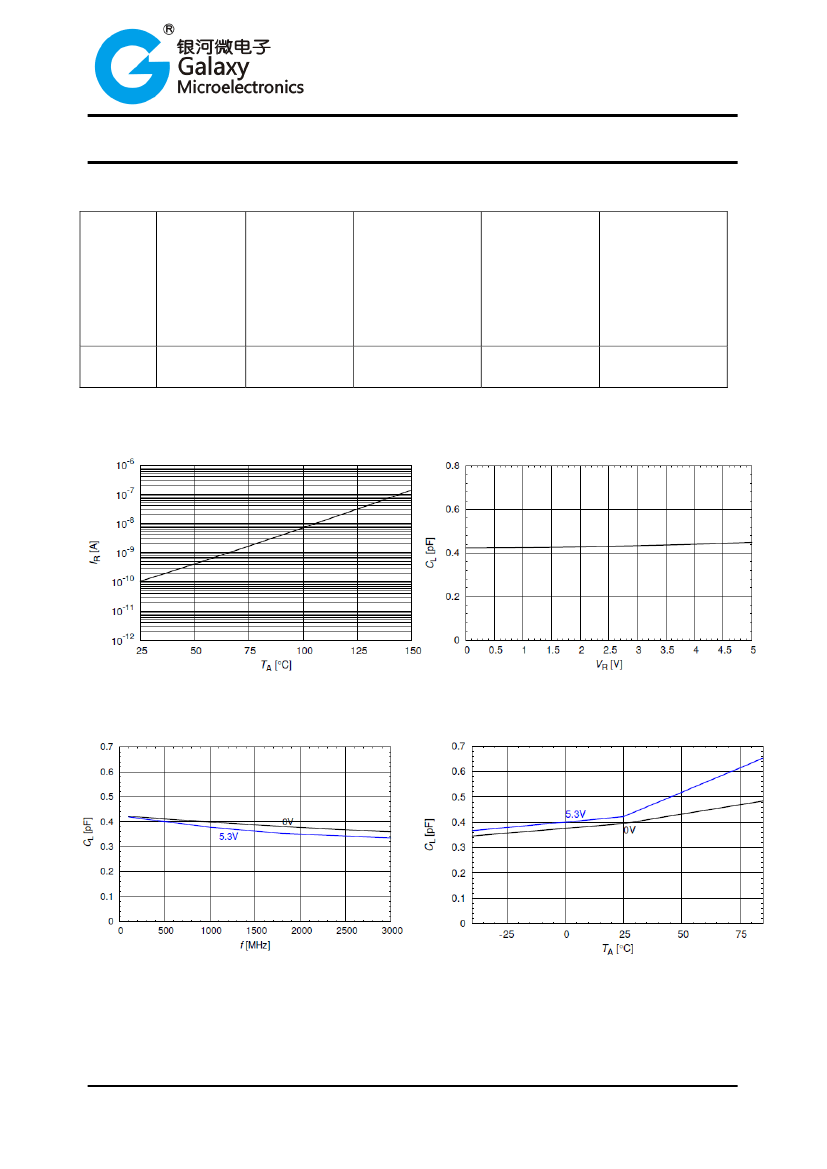

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Figure 1
Reverse current IR = f(TA) , VR = 5.3 V, from pin 1 to pin 2
Figure 2
Line capacitance CL = f(VR), f = 1MHz, from pin 1 to pin 2
Figure 3
Line capacitance CL = f(f), from pin 1 to pin 2
Figure 4
Line capacitance CL = f(TA), from pin 1 to pin 2
TVM0088A
www.gmesemi.com
2
