DLC08C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> DLC08C

DLC08C: Description8V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 8V, 8.5V, -V, 2uA; CategoryDiscrete semiconductor; File Size254KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

DLC08C Overview

8V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 8V, 8.5V, -V, 2uA

DLC08C Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Reach Compliance Code	unknown
category
Condition	8×20us
PPK (W)	350
VRWM (V) max.	8
VBR (V) min.	8.5
VBR (V) max.	-
IR (uA) max.	2
VC (V) max.	18.5
Condition1_IPP (A)	17
C (pF) max.	1(typ)
AEC Qualified	NO
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	1
Is it lead-free?	YES
Comply with Reach	YES
RoHS compliant	YES
ECCN code	EAR99

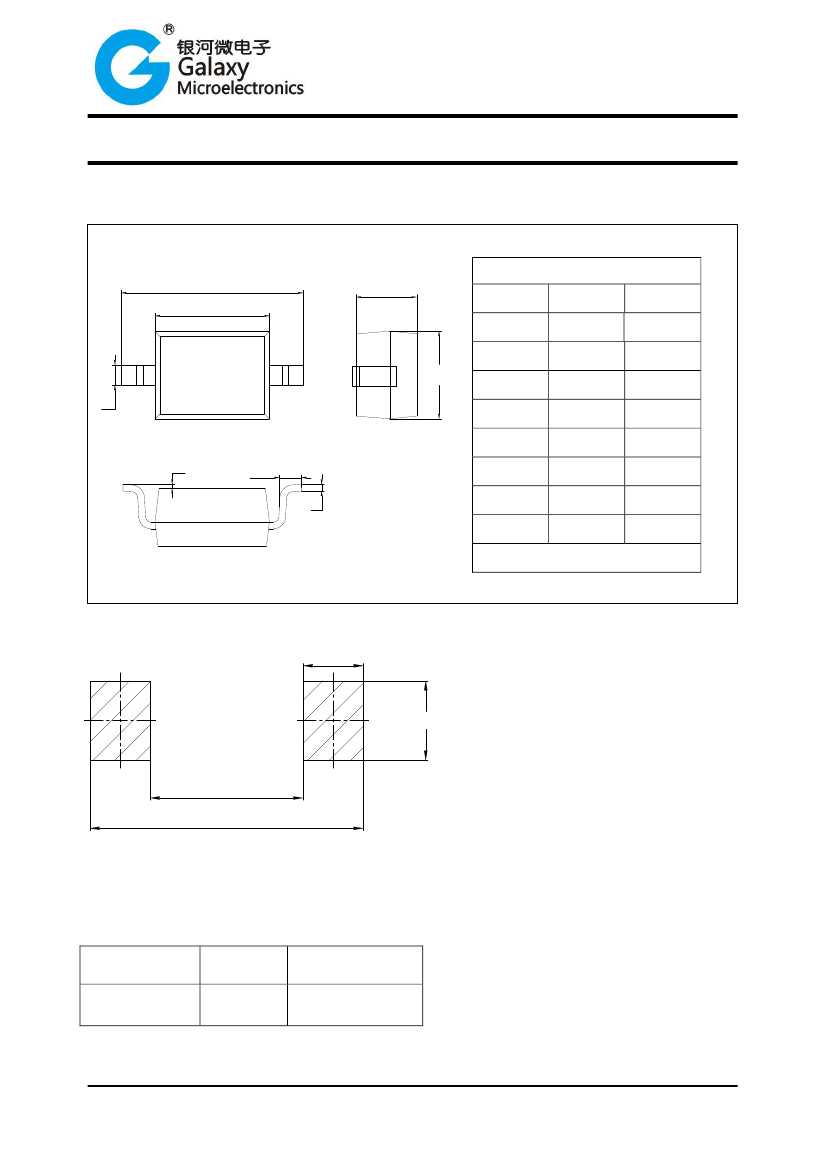

Package Outlines	SOD-323

Preview

Download Datasheet

View All

Product specification

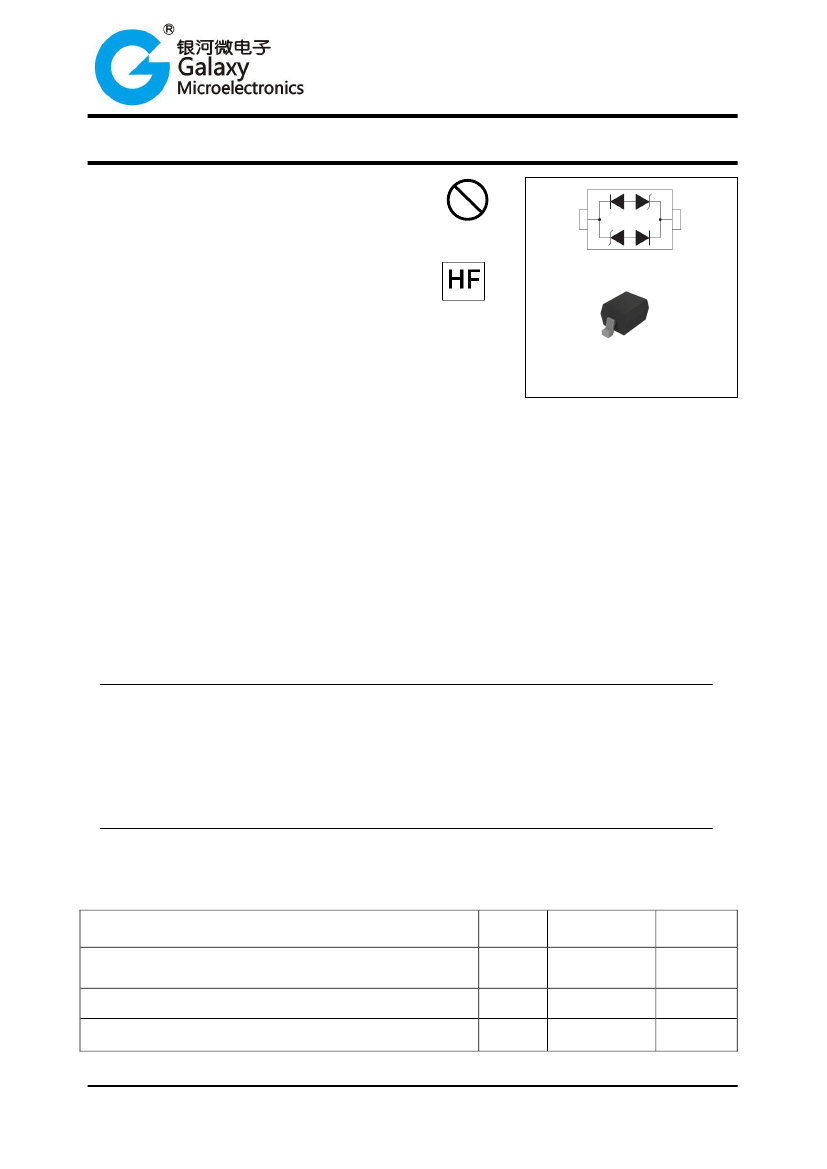

Ultralow Capacitance TVS Array

FEATURES



350 Watts Peak Pulse Power per Line (tp = 8/20μs)

Unidirectional & Bidirectional Configurations

Replacement for MLV (0805)

Protects One Power or I/O Port

ESD Protection > 40 kilovolts

Low Clamping Voltage

Available in Multiple Voltage Types Ranging from 3V to 36V

DLC03C-36C

Lead-free

SOD-323

MSL 1

APPLICATIONS



Ethernet - 10/100/1000 Base T

Cellular Phones

Handheld - Wireless Systems

Personnal Digital Assistant (PDA)

USB Interface

ORDERING INFORMATION

Type No.

DLC03C

□

DLC05C

□

DLC08C

□

DLC12C

□

DLC15C

□

DLC24C

□

DLC36C

□

□:

none is for Lead Free package;

“G” is for Halogen Free package.

Marking

03C

C05C

36C

Package Code

SOD-323

MAXIMUM RATING

@ Ta=25℃

Parameter

unless otherwise specified

Symbol

STG

Limits

350

-55 to+150

Unit

℃

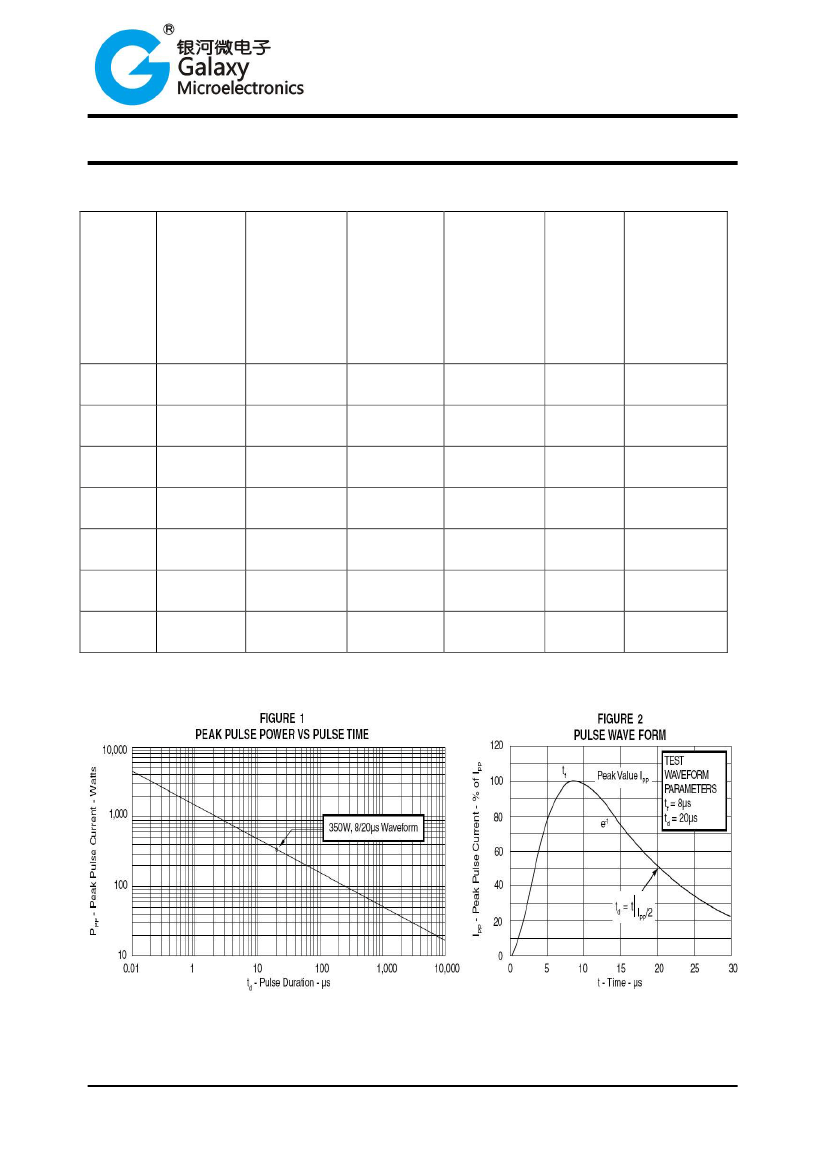

Peak pulse power dissipation(t

=8/20μs) -SeeFigure 1

Operating temperature

Storage temperature

TVM0002A

www.gmesemi.com

DLC08C Related Products

	DLC08C	DLC15C	DLC12C	DLC03C	DLC05C	DLC24C	DLC36C
Description	8V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 8V, 8.5V, -V, 2uA	15V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 15V, 16.7V, -V, 1uA	12V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 12V, 13.3V, -V, 1uA	3.3V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 3.3V, 4V, -V, 5uA	5V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 5V, 6V, -V, 5uA	24V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 24V, 26.7V, -V, 1uA	36V,350W,Surface Mount TVS, Diodes, 8×20us, 350W, 36V, 40V, -V, 1uA
Maker	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Condition	8×20us	8×20us	8×20us	8×20us	8×20us	8×20us	8×20us
PPK (W)	350	350	350	350	350	350	350
VRWM (V) max.	8	15	12	3.3	5	24	36
VBR (V) min.	8.5	16.7	13.3	4	6	26.7	40
IR (uA) max.	2	1	1	5	5	1	1
VC (V) max.	18.5	31.8	28.6	19	20	56	90
Condition1_IPP (A)	17	10	11	20	20	6	4
C (pF) max.	1(typ)	1(typ)	1(typ)	1(typ)	1(typ)	1(typ)	1.5(typ)
AEC Qualified	NO	NO	NO	NO	NO	NO	NO
Maximum operating temperature	150	150	150	150	150	150	150
Minimum operating temperature	-55	-55	-55	-55	-55	-55	-55
MSL level	1	1	1	1	1	1	1
Is it lead-free?	YES	YES	YES	YES	YES	YES	YES
Comply with Reach	YES	YES	YES	YES	YES	YES	YES
RoHS compliant	YES	YES	YES	YES	YES	YES	YES
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Package Outlines	SOD-323	SOD-323	SOD-323	SOD-323	SOD-323	SOD-323	SOD-323
