HM24-1A83-150 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> HM24-1A83-150

Preview

HM24-1A83-150: DescriptionDRY REED RELAY, SPST, MOMENTARY, 0.024A (COIL), 24VDC (COIL), 576mW (COIL), 3A (CONTACT), 7500VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size81KB，2 Pages; ManufacturerMEDER electronic ( Standex ); Websitehttps://standexelectronics.com

Download Datasheet Parametric View All

HM24-1A83-150 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM24-1A83-150	-	-	View	Buy Now

HM24-1A83-150 Overview

DRY REED RELAY, SPST, MOMENTARY, 0.024A (COIL), 24VDC (COIL), 576mW (COIL), 3A (CONTACT), 7500VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

HM24-1A83-150 Parametric

Parameter Name	Attribute value
Minimum operating temperature	-20 Cel
Maximum operating temperature	70 Cel
Processing package description	ROHS AND REACH COMPLIANT
state	Active
Relay type	DRY REED RELAY
width	19.1 mm
high	19.9 mm
length or diameter	68.1 mm
Maximum DC coil current	0.0240 A
coil_input_supply_type	DC
DC coil operating voltage	18 V
coil_power__mw_	576
DC coil release voltage	2 V
Coil resistance	1000 ohm
Maximum DC coil voltage	24 V
contact_ac_max_rating_r_load	3A@7500VAC
Maximum AC contact current	3 A
Maximum DC contact current	3 A
contact_dc_max_rating_r_load	3A@7500VDC
contact_output_supply_type	AC/DC
Maximum AC contact voltage	7500 V
Maximum DC contact voltage	7500 V
Electrical life	5.00E7 Cycle(s)
Manufacturer Series	HM24-1A83-150
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	3.2 ms
cking_method	BOX
Dimensions	68.1mm x 19.1mm x 19.9mm
Relay action	MOMENTARY
Relay function	SPST
release time	1.5 ms
seal	WATER PROOF
terminal coating	TIN
Terminal type	SOLDER AND WIRE

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

Item No.:

8424183150

Item:

HM24-1A83-150

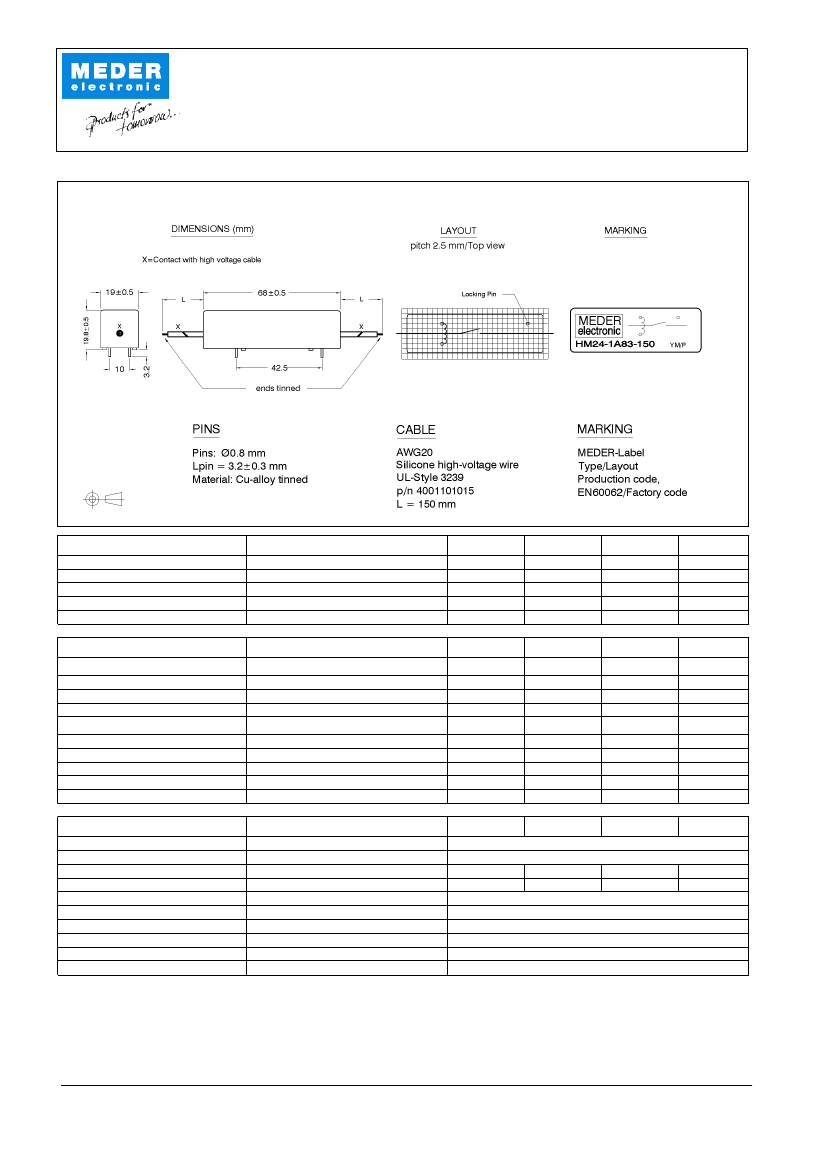

Coil Data at 20 °

C

Coil resistance

Coil voltage

Rated power

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact data 83

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage

Operate time incl. bounce

Release time

Capacitance

Conditions

not to exceed their individual max.'s

Min

Typ

Max

Unit

DC or Peak AC

!"# $ %

Start Value

& ' #$# '

RH <45 %, 100 V test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

(

)

*

!

+,

Special Product Data

Number of contacts

Contact - form

Dielectric Strength Coil/Contact

Insulation resistance Coil/Contact

Case colour

Housing material

Sealing compound

Connection pins

Magnetic Shield

Reach / RoHS conformity

Conditions

according to IEC 255-5

RH <45%, 200 VDC test voltage

Min

Typ

1

A - NO

Max

)

(

Unit

Polycarbonat

Polyurethan

Copper alloy tin plated

yes

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

01.07.04

20.07.11

Designed by:

Last Change by:

EBUNKE

CRUF

Approval at:

11.06.07

20.07.11

Approval by:

KOLBRICH

CRUF

Version:

05
