351-10-122-00-009 datasheet, PDF

Datasheet> All Categories > The connector> socket> 351-10-122-00-009

351-10-122-00-009: DescriptionIC Socket, SIP22, 22 Contact(s); CategoryThe connector socket; File Size114KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

351-10-122-00-009 Overview

IC Socket, SIP22, 22 Contact(s)

351-10-122-00-009 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP22
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	351
Number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

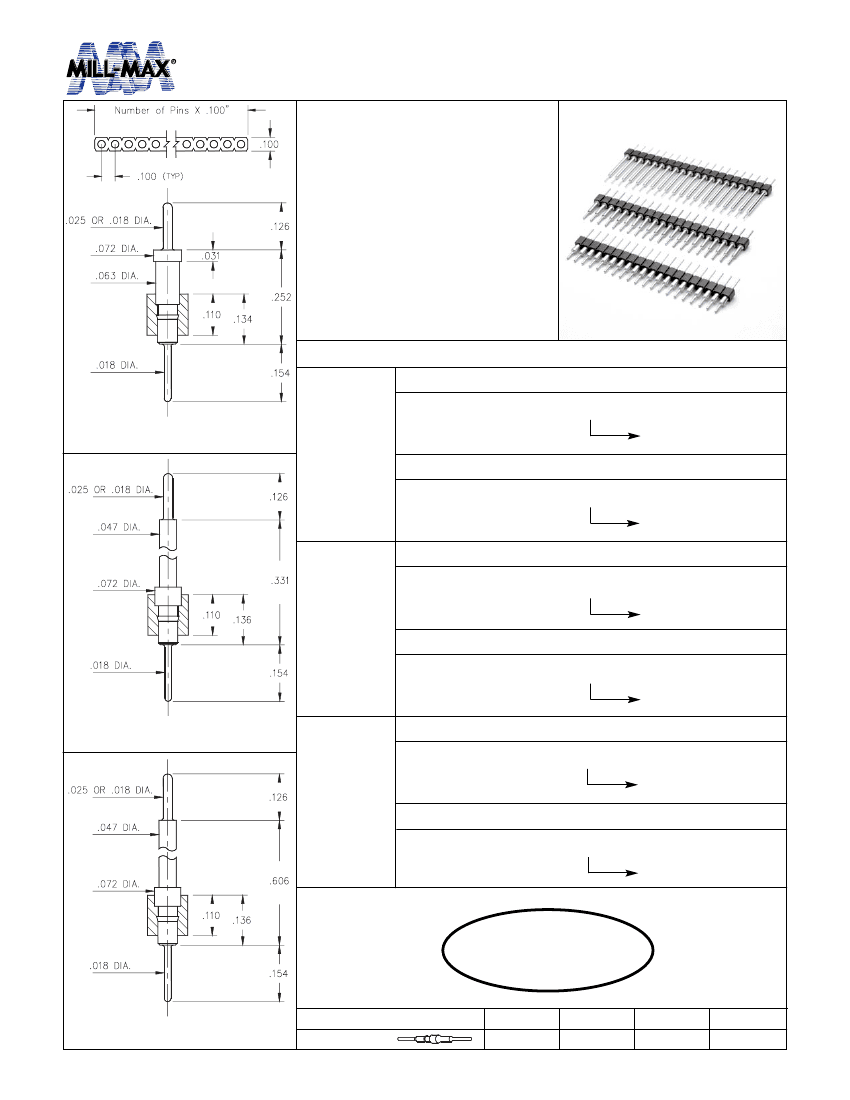

HEADER STRIPS

Interconnect

Single Row

•

Series 351 Interconnect Header

Strips come in three lengths with

.018” dia. pluggable solder tails at

one end and .025” dia. pins at the

other. (M-M# 5503, 5504 or 5505

see page 172 for details).

•

.018” pluggable solder tails are

available at both ends, see series:

351...009

351...010

351...011

(using M-M# 5509, 5510, 5511

pins respectively, see page 170

& 172 for details).

Series 351

Ordering Information

Series 351...003

Fig. 1

.018 / .025 Solder Tails

01-64

.018 / .018 Solder Tails

01-64

.018 / .025 Solder Tails

01-64

.018 / .018 Solder Tails

01-64

.018 / .025 Solder Tails

01-64

.018 / .018 Solder Tails

01-64

351-XX-1_ _-00-003

Fig. 1

Specify # of pins

Series 351...009

Specify # of pins

Series 351...004

Specify # of pins

Series 351...010

Specify # of pins

351-XX-1_ _-00-010

351-XX-1_ _-00-009

351-XX-1_ _-00-004

Fig. 2

Series 351...005

Specify # of pins

351-XX-1_ _-00-005

Fig. 3

Series 351...011

Specify # of pins

351-XX-1_ _-00-011

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10µ” Au

200µ”Sn/Pb

Fig. 3

Pin Plating

w w w. m i l l - m a x . c o m

516-922-6000
