Part Number

Search

890-004

Description
FEMALE, D NANOMINIATURE CONNECTOR, CRIMP, RECEPTACLE
CategoryThe connector    The connector
File Size115KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric Compare View All

890-004 Overview

FEMALE, D NANOMINIATURE CONNECTOR, CRIMP, RECEPTACLE

890-004 Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codecompli
Other featuresSTANDARD: MIL-DTL-32139, MAX CONTACTS (SERIES)=51
Body/casing typeRECEPTACLE
Connector typeD NANOMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT SPECIFIED
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
MIL complianceYES
Manufacturer's serial number890-004
Mixed contactsNO
Installation typeCABLE AND PANEL
OptionsWITH CABLE ASSEMBLY
Shell surfaceCADMIUM/NICKEL; TITANIUM
Shell materialALUMINUM ALLOY; STAINLESS STEEL
Termination typeCRIMP

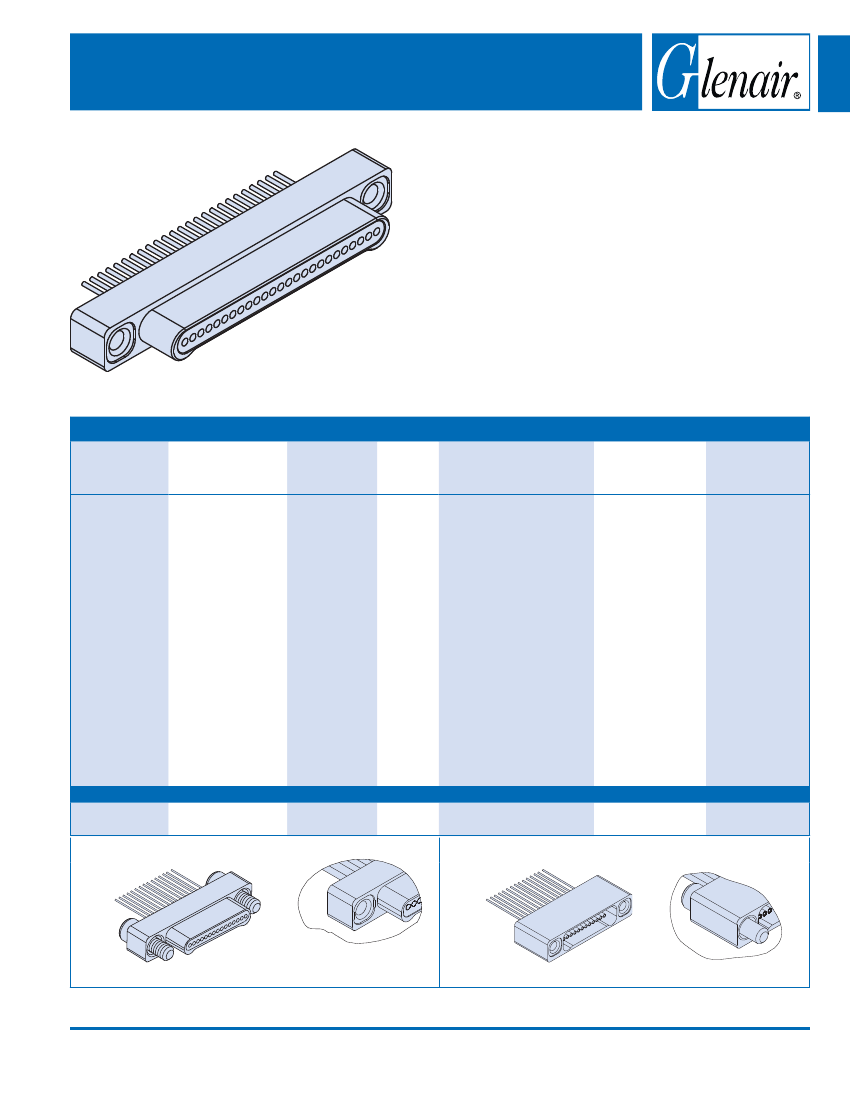

890-003 and -004
Series 89 Nanominiature Connectors
Single Row Uninsulated Wire Pigtail Assemblies
Glenair’s Pigtail Nano Connectors
feature gold alloy
TwistPin contacts. Contacts are precision-crimped
to solid wire. These nanomimiature connectors offer
premium preformance and reliability for demanding
applications. Contact spacing is .025 inches. 1 amp
current rating, DWV rating 300 volts AC. Wire gages #30
and #32 AWG.
TwistPin Contact System
assures premium performance
in demanding environments. The gold/platinum alloy
contacts will stand up to years of exposure without corrosion.
Typical Applications
include UAV's, satellites, missile
systems and geophysical instruments.
HOW TO ORDER NANOMINIATURE CONNECTORS WITH UNINSULATED WIRE
Series
890-003
Plug, Pin
Contacts,
Single Row,
Nanominiature
Insert
Arrangement/
Contact Type
Plugs (890-003)
Shell Material
and Finish
A1
Wire
Gage
0
Wire Type
D3
Single Strand Copper Wire,
Uninsulated, with Gold Plating
Wire Length
.125
.250
.375
.500
Wire Length in Inches
Hardware
J
Jackscrew,
#0-80
890-004
9P
15P
21P
25P
31P
37P
51P
Aluminum Shell, #30 AWG
Cadmium Plating
A2
Aluminum Shell,
Electroless
Nickel Plating
2
#32 AWG
T
#0-80
Female
Thread
Female threads are
available on plug
connectors only if the
shell material is titanium
or stainless steel.
Receptacle,
Socket Contacts, Receptacles (890-004)
Single Row,
9S
Nanominiature
T
Titanium Shell,
Unplated
15S
21S
25S
31S
37S
51S
S
Stainless Steel
Shell, Passivated
Sample Part Number
890-003
– 31P
A2
– 0
D3
– .250
J

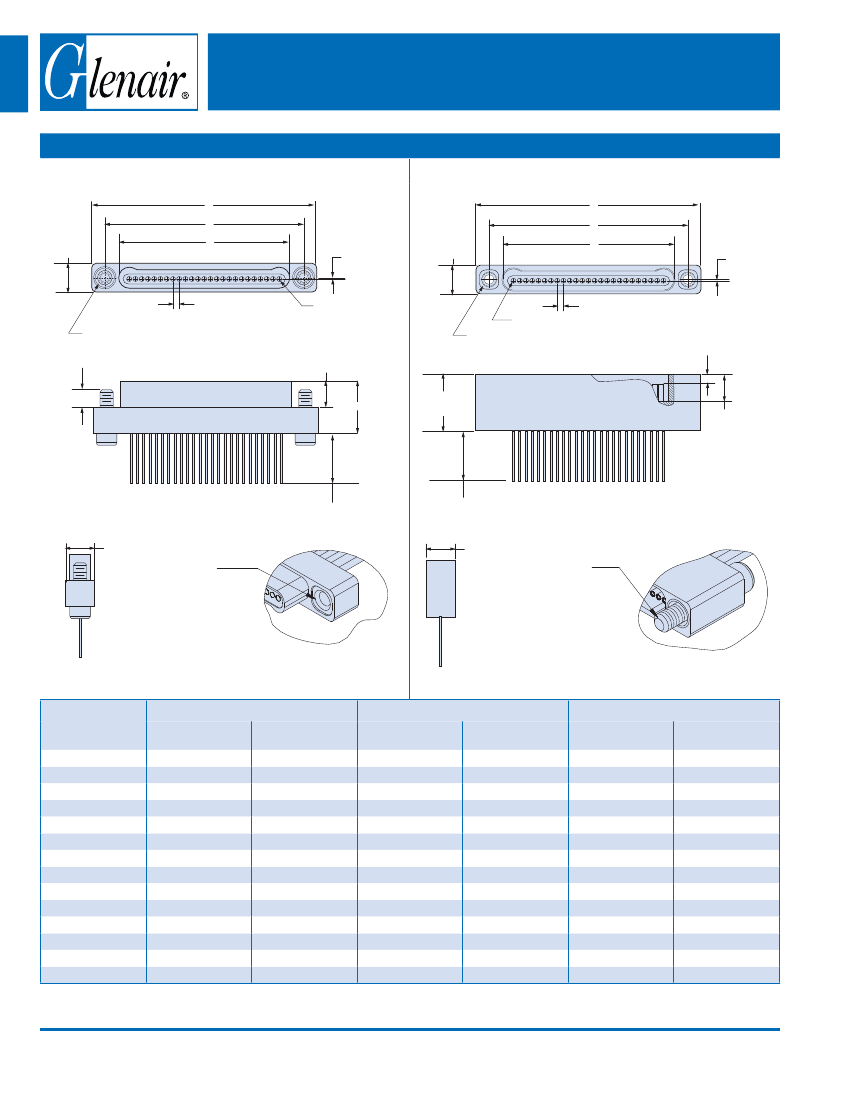

PLUG (PIN) CONNECTOR
RECEPTACLE (SOCKET) CONNECTOR
“J” Jackscrew Option
“T” Female Thread Option
Titanium or Stainless Steel
Shells Only
“T” Female Thread Option
“J” Jackscrew Option
© 2007 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
15
E-Mail: sales@glenair.com
Single Row
Connectors
