DD1B030VA1

Description
Telecom and Datacom Connector, 30 Contact(s), Female, 75 Degree, Surface Mount Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size109KB,2 Pages
ManufacturerJapan Aviation Electronics Industry Limited
Environmental Compliance
Download Datasheet Parametric Compare View All

DD1B030VA1 Online Shopping

Suppliers Part Number Price MOQ In stock
DD1B030VA1 - - View Buy Now

DD1B030VA1 Overview

Telecom and Datacom Connector, 30 Contact(s), Female, 75 Degree, Surface Mount Terminal, Locking, Receptacle

DD1B030VA1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerJapan Aviation Electronics Industry Limited
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
Board mount optionsPEG
body width0.199 inch
body length1.063 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD (4) OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance50 mΩ
DIN complianceNO
Dielectric withstand voltage500VDC V
Durability10000 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
insulator materialNYLON9T
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation option 1LOCKING
Installation method75 DEGREE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of ports1
Maximum operating temperature75 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness4u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialSTAINLESS STEEL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts30
UL Flammability Code94V-0
v2.2

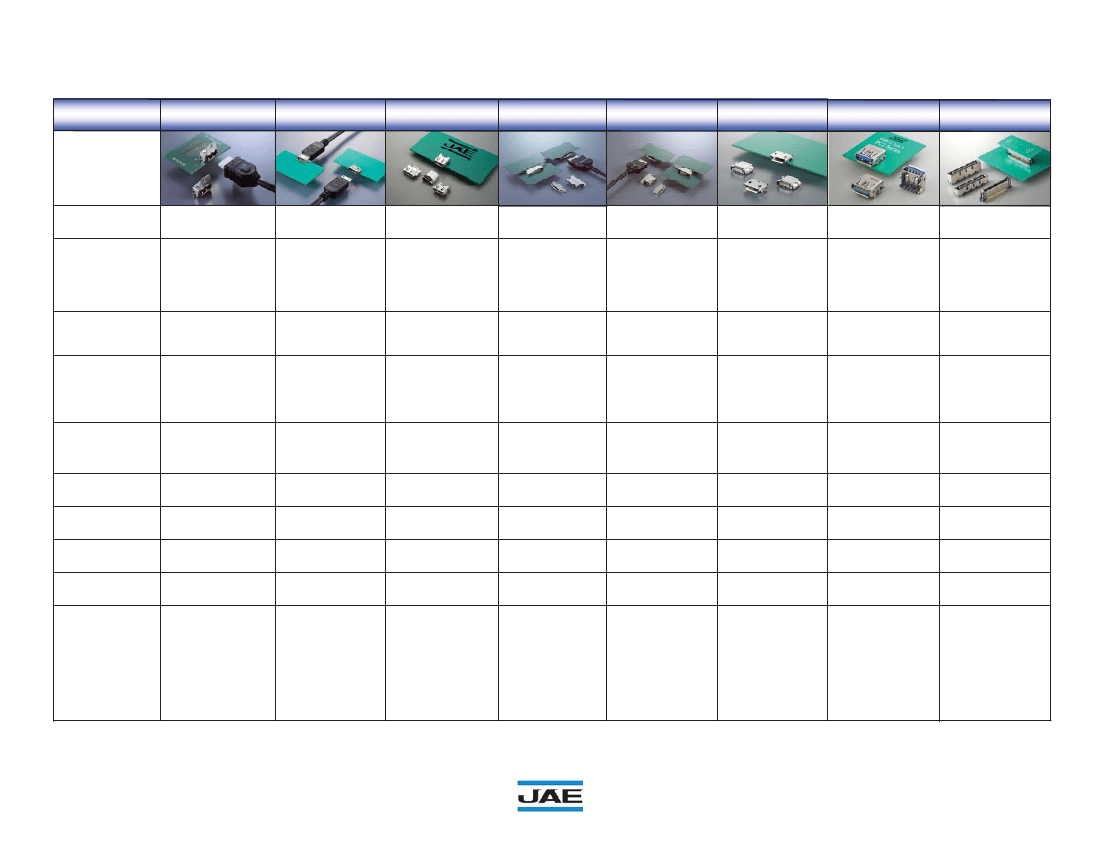

Input/Output Connectors
Receptacle:
DC1R019JA7
Type B Receptacle:
DX4R005 J9 1 R1500
Cable Harness:
DC1P019ST30200B
Restricted to HDMI Adopters
Contact JAE for additional options
Hold Down Type
J9: T/H
H9: SMT
JJ: Mid mount, T/H
Receptacle:
Docking Plug:
4: without flange
B: with flange
DD1R030HA1
DD1R030JA7
DD1B030VA1
DD1B030HA1
DD1P030MA1
Standard mount
Reverse mount
Vertical
Right angle
Receptacle:
DC2R019JA4
Cable Plug:
Receptacle:
PC2RN1SU41B09S1
Board Mount Type
S: Standard
R: Reverse
Terminal Length
09: 0.85mm
17: 1.7mm
Cable Harness:
DC1DC2ST2150B
Restricted to HDMI Adopters
Contact JAE for additional options
Receptacle:
DD2R040HP2
Docking Plug:
DD2B040HA2
Receptacle:
Top Mount
DC3RX19JA2
Modification Code
Hold Down Type
X, J: T/H
0, H: SMT
Modification Code
Restricted to HDMI Adopters
Contact JAE for additional options
Cable Plug:
DD2P040MA1
Receptacle:
WD2F###WB1
Height modification
code
Receptacle:
Mid Mount
DC3R019JA1
Plug (Dock):
WD2M###WB2
1: 4
o
off vertical
2: Vertical

DD1B030VA1 Related Products

DD1B030VA1 DD2R040HP2R1000
Description Telecom and Datacom Connector, 30 Contact(s), Female, 75 Degree, Surface Mount Terminal, Locking, Receptacle Telecom and Datacom Connector, 40 Contact(s), Female, Right Angle, Surface Mount Terminal
Is it Rohs certified? conform to conform to
Reach Compliance Code unknown unknown
Connector type TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation GOLD (4) OVER NICKEL NOT SPECIFIED
Contact point gender FEMALE FEMALE
Contact material COPPER ALLOY NOT SPECIFIED
DIN compliance NO NO
empty shell NO NO
Filter function NO NO
IEC compliance NO NO
insulator material NYLON9T SYNTHETIC RESIN
MIL compliance NO NO
Mixed contacts NO NO
Installation method 75 DEGREE RIGHT ANGLE
Installation type BOARD BOARD
Options GENERAL PURPOSE GENERAL PURPOSE
Shell surface NICKEL NICKEL
Shell material STAINLESS STEEL STAINLESS STEEL
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 30 40
UL Flammability Code 94V-0 94V-0
