PS-40PE-D4LT1-LP2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS-40PE-D4LT1-LP2

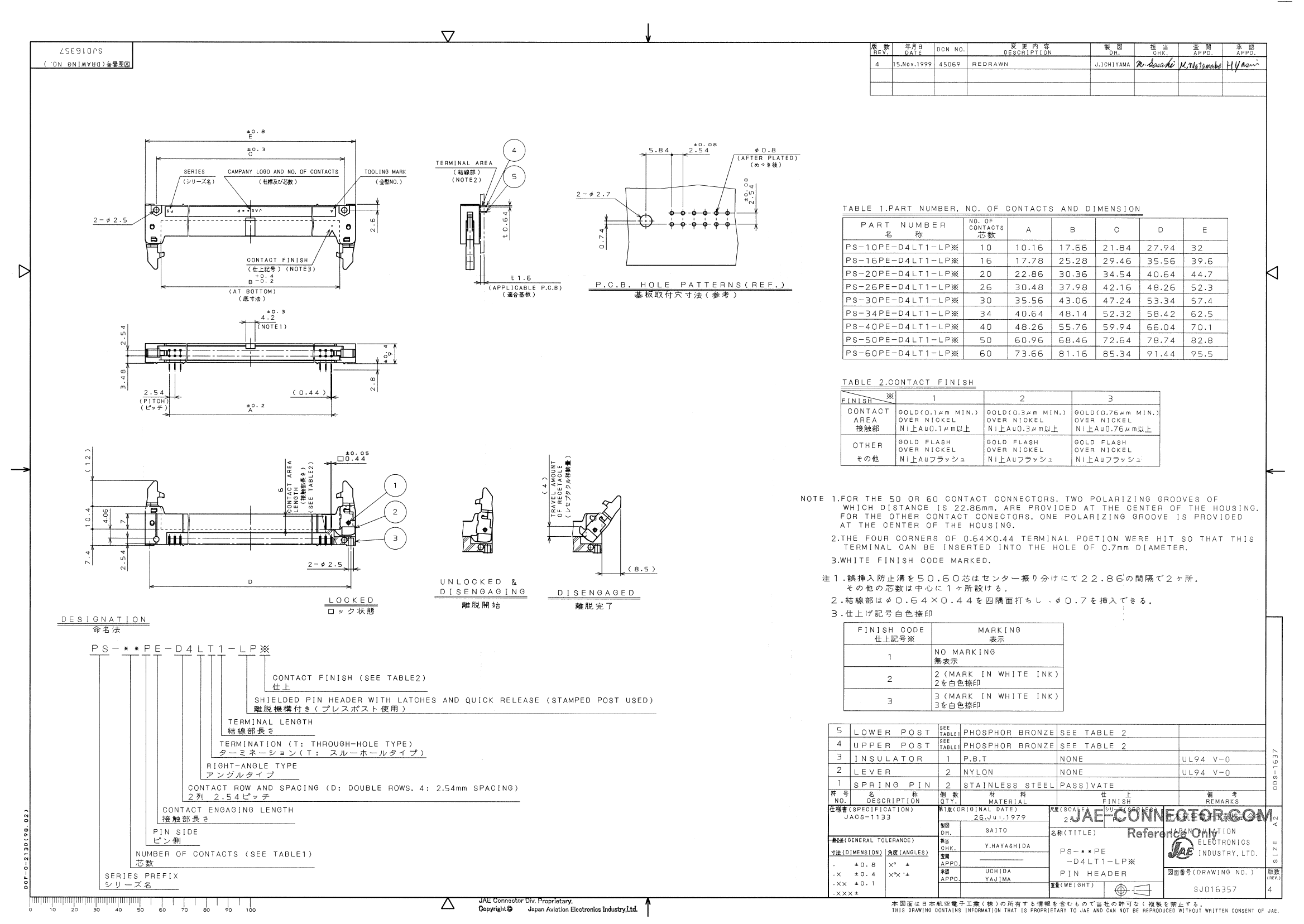

PS-40PE-D4LT1-LP2: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size229KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

PS-40PE-D4LT1-LP2 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle,

PS-40PE-D4LT1-LP2 Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED, SHIELDED
Board mount options	HOLE .086-.098
body width	0.354 inch
subject depth	0.701 inch
body length	2.76 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12) OVER NICKEL
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	3.058 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	12u inch
polarization key	CENTER
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Evacuation force-minimum value	.3892 N

Preview

Download Datasheet

View All

PS-40PE-D4LT1-LP2 Related Products

	PS-40PE-D4LT1-LP2	PS-34PE-D4LT1-LP2	PS-50PE-D4LT1-LP3	PS-10PE-D4LT1-LP3	PS-34PE-D4LT1-LP3	PS-40PE-D4LT1-LP3
Description	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle,	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle,	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle,	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZED, SHIELDED	POLARIZED, SHIELDED	POLARIZED, SHIELDED	POLARIZED, SHIELDED	POLARIZED, SHIELDED	POLARIZED, SHIELDED
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch
subject depth	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch
body length	2.76 inch	2.461 inch	3.26 inch	1.26 inch	2.461 inch	2.76 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12) OVER NICKEL	GOLD (12) OVER NICKEL	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
maximum insertion force	3.058 N	3.058 N	3.058 N	3.058 N	3.058 N	3.058 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	12u inch	12u inch	30u inch	30u inch	30u inch	30u inch
polarization key	CENTER	CENTER	CENTER	CENTER	CENTER	CENTER
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	40	34	50	10	34	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.3892 N	.3892 N	.3892 N	.3892 N	.3892 N	.3892 N
Contact completed and terminated	GOLD FLASH OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	-	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
JESD-609 code	e4	e4	-	e4	e4	e4
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to
