DIP12-1A72-12LHR

Description
DRY REED RELAY, SPST, MOMENTARY, 0.006A (COIL), 12VDC (COIL), 72mW (COIL), 0.5A (CONTACT), 200VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size111KB，2 Pages
ManufacturerMEDER electronic ( Standex )
Websitehttps://standexelectronics.com
Download Datasheet Parametric View All

DIP12-1A72-12LHR Overview

DRY REED RELAY, SPST, MOMENTARY, 0.006A (COIL), 12VDC (COIL), 72mW (COIL), 0.5A (CONTACT), 200VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

DIP12-1A72-12LHR Parametric

Parameter NameAttribute value
Maximum operating temperature70 Cel
Minimum operating temperature-20 Cel
Processing package descriptionROHS COMPLIANT
stateACTIVE
sealWATER PROOF
Coil power72 mW
Relay actionTransient
Relay functionsingle pole single throw
Coil resistance2200 ohm
terminal coatingtin
Manufacturer SeriesDIP12-1A72-12LHR
Maximum DC coil current0.0060 A
Maximum DC coil voltage12 V
Maximum AC contact current0.5000 A
Maximum DC contact current0.5000 A
Maximum AC contact voltage200 V
Maximum DC contact voltage200 V
DC coil operating voltage8.4 V
DC coil release voltage1.8 V
width6.4 mm
high5 mm
length or diameter19.6 mm
Installation featuresThrough hole installation
operating hours0.5000 ms
Relay typeReed relay
release time0.1000 ms
Terminal typewelding

Preview

Download Datasheet
Europe: +49 / 7731 8399 0
USA:
Asia:
+1 / 508 295 0771
+852 / 2955 1682
| Email: info@meder.com
| Email: salesusa@meder.com
| Email: salesasia@meder.com
Item No.:
3212172412
Item:
DIP12-1A72-12LHR

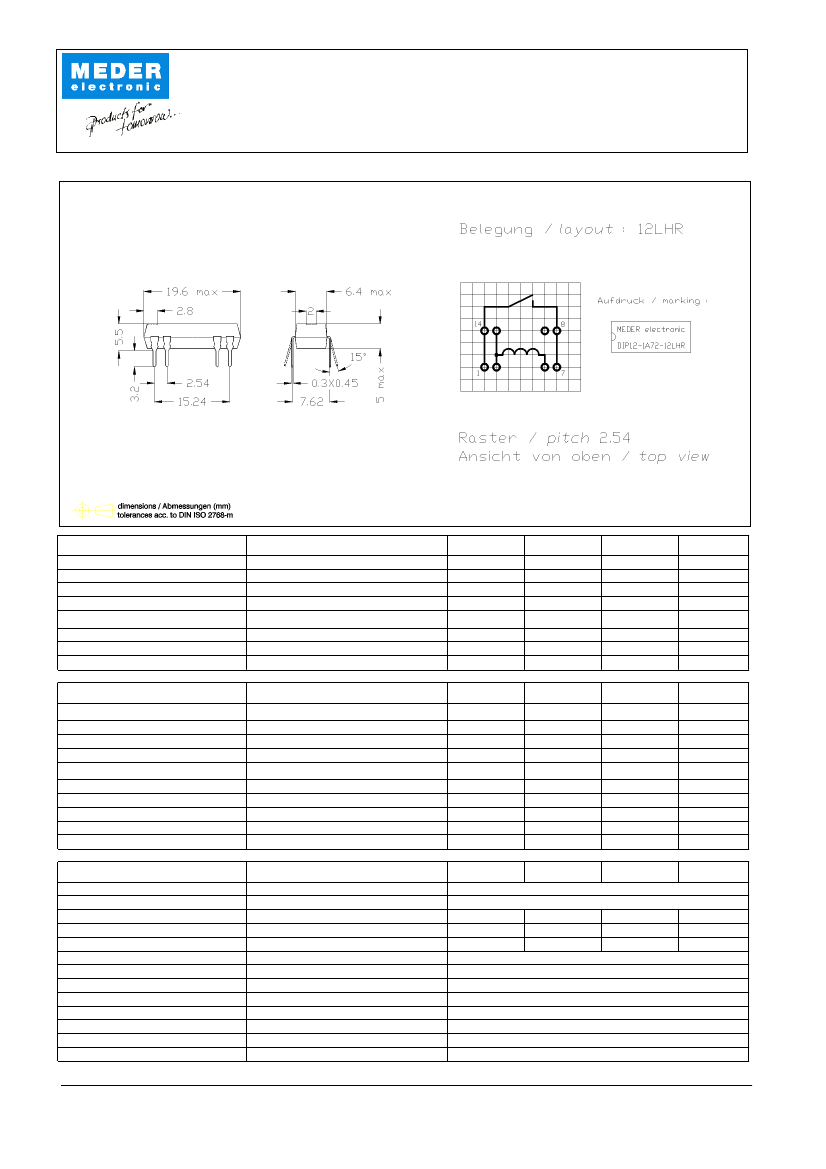

Coil Data at 20 °
C
Coil resistance
Coil voltage
Rated power
Coil current
Thermal resistance
Inductance
Pull-In voltage
Drop-Out voltage
Conditions
Min
Typ
Max
Unit
=
operating temperature + self heating
!
Contact data 66/3
Contact rating
Switching voltage
Switching current
Carry current
Contact resistance static
Insulation resistance
Breakdown voltage ( > 20 AT )
Operate time incl. bounce
Release time
Capacity
Conditions
"
#$ %&" &$" $' (
not to exceed their individual max.'s
Min
Typ
Max
Unit
DC or Peak AC
DC or Peak AC
DC or Peak AC
* + , -&
Start Value
)
)
)
)
)
0
1
+
+
2
! . $/ , &/
RH <45 %, 100 V test voltage
according to IEC 255-5
measured with 40% overdrive
measured with no coil excitation
@ 10 kHz across open switch
Special Product Data
Number of contacts
Contact - form
Dielectric Strength Coil/Contact
Insulation resistance Coil/Contact
Capacity Coil/Contact
Case colour
Housing material
Connection pins
Magnetic Shield
Reach / RoHS conformity
Approval
Approval
Remark
Conditions
according to IEC 255-5
40° 95% R.H.
C,
@ 10 kHz
Min
)
)
Typ
1
A - NO
Max
1
0
Unit
2
black
mineral filled epoxy
FeNi-alloy tinned
no
yes
UL File No. NRNT2.E156887
UL File No. NRNT8.E156887
high coil resistance
Modifications in the sense of technical progress are reserved
Designed at:
Last Change at:
20.04.04
20.04.04
Designed by:
Last Change by:
SCHELLHORN
SCHELLHORN
Approval at:
Approval at:
21.08.09
Approval by:
Approval by:
KOLBRICH
Version:
V1.0
