Tactile Switch
B3F
Miniature, Space-Saving Tactile Switch Provides
Long Service Life and Easy Mounting
• Extended mechanical/electrical service life: 10 x 10
6
operations for
12 x 12 mm type and 1 x 10
6
operations for the 6 x 6 mm type
• Ideal for applications such as audio, office and communica-
tions equipment, measuring instruments, TVs, VCRs, etc.
• Taped radial type, vertical type and high force types are available.
• Gold plated models available for increased contact reliabil-
ity, resistance to corrosive gas and insulation fault preven-
tion for ion migration in harsh environments
• RoHS Compliant

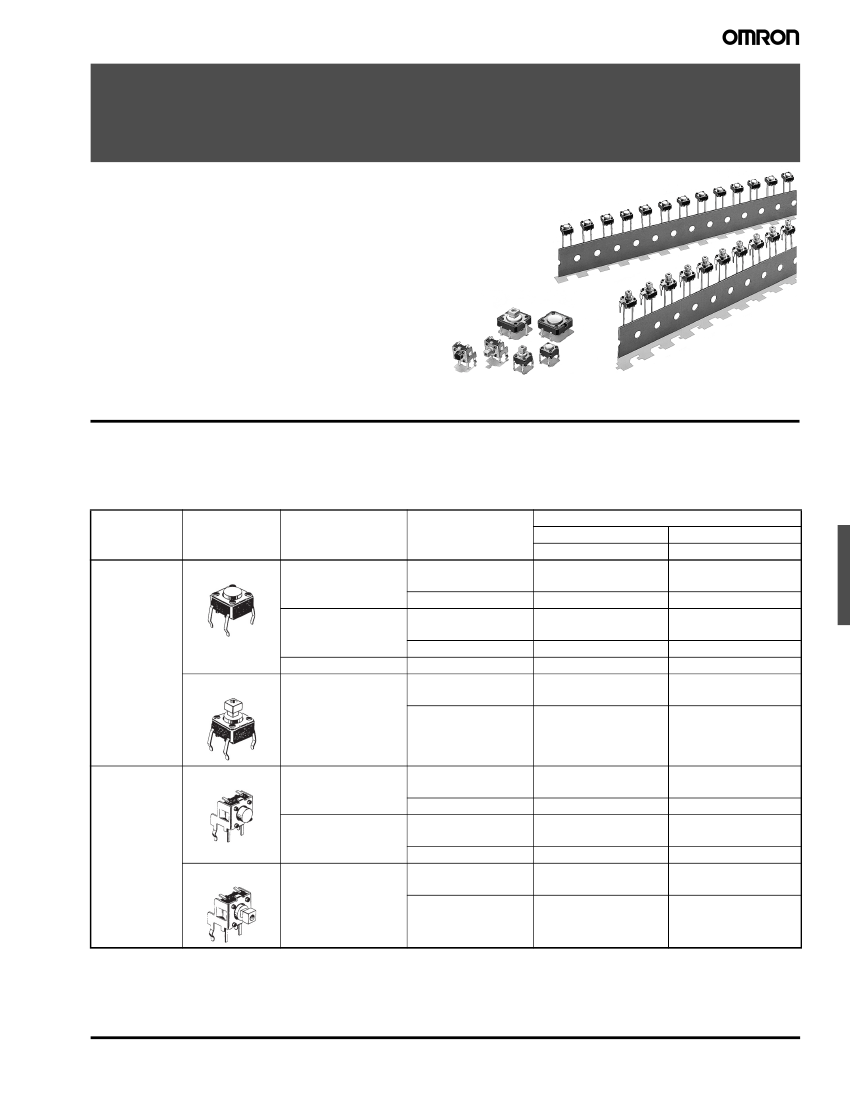

Ordering Information
■
B3F-1
@@@
, B3F-3
@@@
6 x 6 mm type
Type
Plunger
Switch height
Operating force
Model
Without ground terminal With ground terminal
Bags
Standard
Flat
4.3 mm
General-purpose: 100 g
150 g
High-force:
5.0 mm
260 g
General-purpose: 100 g
150 g
High-force:
5.0 mm (7.5 mm pitch)
Projected
7.3 mm
260 g
General-purpose: 100 g
General-purpose: 100 g
150 g
High-force:
260 g
B3F-1000
B3F-1002
B3F-1005
B3F-1020
B3F-1022
B3F-1025
—
B3F-1050
B3F-1052
B3F-1055
Bags
B3F-1100
B3F-1102
B3F-1105
B3F-1120
B3F-1122
B3F-1125
B3F-1110
B3F-1150
B3F-1152
B3F-1155
Vertical
Flat
3.15 mm
General-purpose: 100 g
150 g
High-force:
260 g
General-purpose: 100 g
150 g
High-force:
260 g
General-purpose: 100 g
150 g
High-force:
260 g
—
—
—
—
—
—
—
—
—
B3F-3100
B3F-3102
B3F-3105
B3F-3120
B3F-3122
B3F-3125
B3F-3150
B3F-3152
B3F-3155
3.85 mm
Projected
6.15 mm
Important Note:Switches
cannot be water-washed.
Tactile Switch
B3F
221
■
B3F-1
@@@-G
6 x 6 mm type with Gold Plating
Type
Plunger
Switch height
Form of shipment
operating force
Model
Without ground terminal
Bags (100 Switches)
6 x 6 mm switches
with gold plating
Flat
4.3 mm
5.0 mm
180 g
B3F-1002-G
B3F-1022-G
B3F-1102-G
B3F-1122-G
With ground terminal
Note:
The minimum order is 100 Switches. Order in multiples of the minimum order.
■

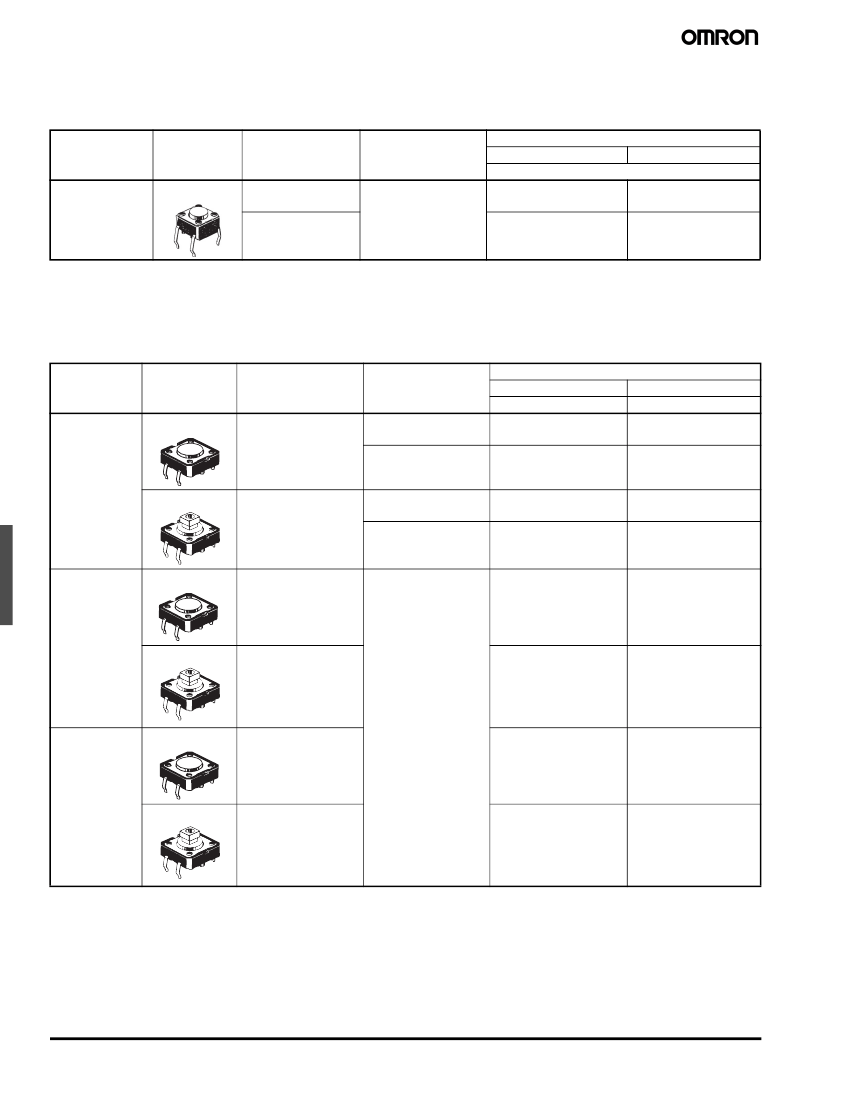

B3F-4
@@@
, B3F-5
@@@
12 x 12 mm type
Type
Plunger
Switch height
Operating force
Model
Without ground terminal With ground terminal
Bags
Standard
Flat
4.3 mm
General-purpose: 130 g
High-force:
260 g
B3F-4000
B3F-4005
Bags
B3F-4100
B3F-4105
Projected
7.3 mm
General-purpose: 130 g
High-force:
260 g
B3F-4050
B3F-4055
B3F-4150
B3F-4155
Long service life
Flat
4.3 mm
General-purpose: 130 g
B3F-5000
B3F-5100
Projected
7.3 mm
B3F-5050
B3F-5150
High reliability
gold-plated
contact
Flat
4.3 mm
B3F-5001
B3F-5101
Projected
7.3 mm
B3F-5051
B3F-5151
Important Note:
Switches cannot be water-washed.
222
Tactile Switch
B3F
■
B3F-6
@@@
Taped Radial (Auto Insertion)
6 x 6 mm type
Type
B3F-6000
Plunger
Flat
Switch height
4.3 mm
5.0 mm
Operating force
General-purpose: 100 g
High-force:
High-force:
Projected
7.3 mm
150 g
150 g
General-purpose: 100 g
Model
Without ground terminal With ground terminal
B3F-6000
B3F-6002
B3F-6020
B3F-6022
B3F-6050
B3F-6052
B3F-6100
B3F-6102
B3F-6120
B3F-6122
B3F-6150
B3F-6152
General-purpose: 100 g
High-force:
150 g
Note:
The above switches must be ordered in units of 1,000.
Important Note:
Switches cannot be water-washed.
■
Accessories
See “B32” Tactile Switch Key Top data sheet for keycaps that fit projected plunger B3F models.
■
Plunger Identification Tables
Use these tables to determine tactile switch type by plunger color.
B3F-1@@@/-3@@@/-6@@@
Plunger color
Ivory
Black
Yellow
Gray
Orange
Pink
Operating force
100 g
100 g
150 g
180 g
150 g
180 g
260 g
260 g
Type
B3F-1000, 1100, 1050, 1150, 3100, 3150, 6000, 6100, 6050, 6150
B3F-1020, 1120, 1110, 3120, 6020, 6120
B3F-1002, 1102, 1052, 1152, 3102, 3152, 6002, 6102, 6052, 6152
B3F-1002-G, 1102-G
B3F-1022, 1122, 3122, 6022, 6122
B3F-1022-G, 1122-G
B3F-1005, 1105, 1055, 1155, 3105, 3155, 6005, 6055
B3F-1025, 1125, 3125, 6025
B3F-4@@@/-5@@@
Plunger color
Ivory
Yellow
Blue
Operating force
130 g
260 g
130 g
Type
B3F-4000, 4100, 4050, 4150
B3F-4005, 4105, 4055, 4155
B3F-5000 Series
Tactile Switch
B3F
223
Specifications
■
Characteristics
Part Number
B3F-1@@@
B3F-3@@@
Contact form
Switching capacity
SPST-NO
1 to 50 mA, 5 to 24 VDC (resistive load)
100
μA
to 50 mA,
5 to 24 VDC
(resistive load)
100 mΩ max.
(rated: 100
μA,
5 VDC)
B3F-4@@@
B3F-5@@@
B3F-6@@@
B3F-1@@@-G
Contact resistance
Insulation resistance
Dielectric strength
Bounce time
Vibration resistance
Shock resistance
Ambient operating
temperature
Ambient operating
humidity
Weight
100 mΩ max. (rated: 1mA, 5VDC)
100 MΩ min. (at 250 VDC)
500 VAC, 50/60 Hz for 1 minute
5 ms max.
Malfunction durability: 10 to 55 Hz, 1.5 mm double amplitude for 30 to 60 s
Mechanical durability: 1,000 m/s
2
(approx. 100 G)
Malfunction durability: 100 m/s
2
(approx. 10 G)
-25° to 70°C (at 60% RH max.) with no icing or condensation
35% to 85% RH (at 5 to 35
°C)
Approx. 0.25 g
Approx. 0.85 g
Approx. 0.25 g
Note:
Data shown are of initial value.
■
Life Expectancy
B3F-1000, B3F-3000, B3F-6000:
1,000,000 operations min (OF: 100gf) (B3F-1070: 500,000 operations min)
300,000 operations min (OF: 150 gf)
100,000 operations min (OF: 260gf)
B3F-G:
300,000 operations min (OF: 180gf)
B3F-4000:
3,000,000 operations min (OF: 130gf)
1,000,000 operations min (OF: 260gf)
B3F-5000:
10,000,000 operations min.
■
Operating Characteristics
Characteristics
B3F-1@@@
/
-3@@@
General
purpose type
Operating force (OF)
Release force (RF) min.
Pretravel (PT)
100
±
30 g
20 g
150
±
50 g
50 g
0.25
+0.2
/
-0.1
mm
High force
type
260
±
70 gf
50 gf
Part Number
B3F-4@@@
/
-5@@@
General
purpose type
130
±
50 g
30 g
High force
type
260
±
70 g
50 g
B3F-6@@@
General
purpose type
100
±
30 g
20 g
High force
type
150
±
50 g
50 g
0.25
+0.2
/
-0.1
mm
B3F-1@@@-G
General
purpose type
180
±
50 g
50 g
0.3
+0.2
/
-0.1
mm
224
Tactile Switch
B3F
Dimensions
Note: 1.
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.
2.
Terminal numbers are not indicated on this switch. With the switch turned over so that the logo mark “OMRON” is visible on the upper
part of the rear side of the switch base, the terminal on the right of the logo mark is numbered “1” and that on the bottom right is “3.”
Accordingly, two terminals on the left side are numbered “2” and “4” respectively.
■

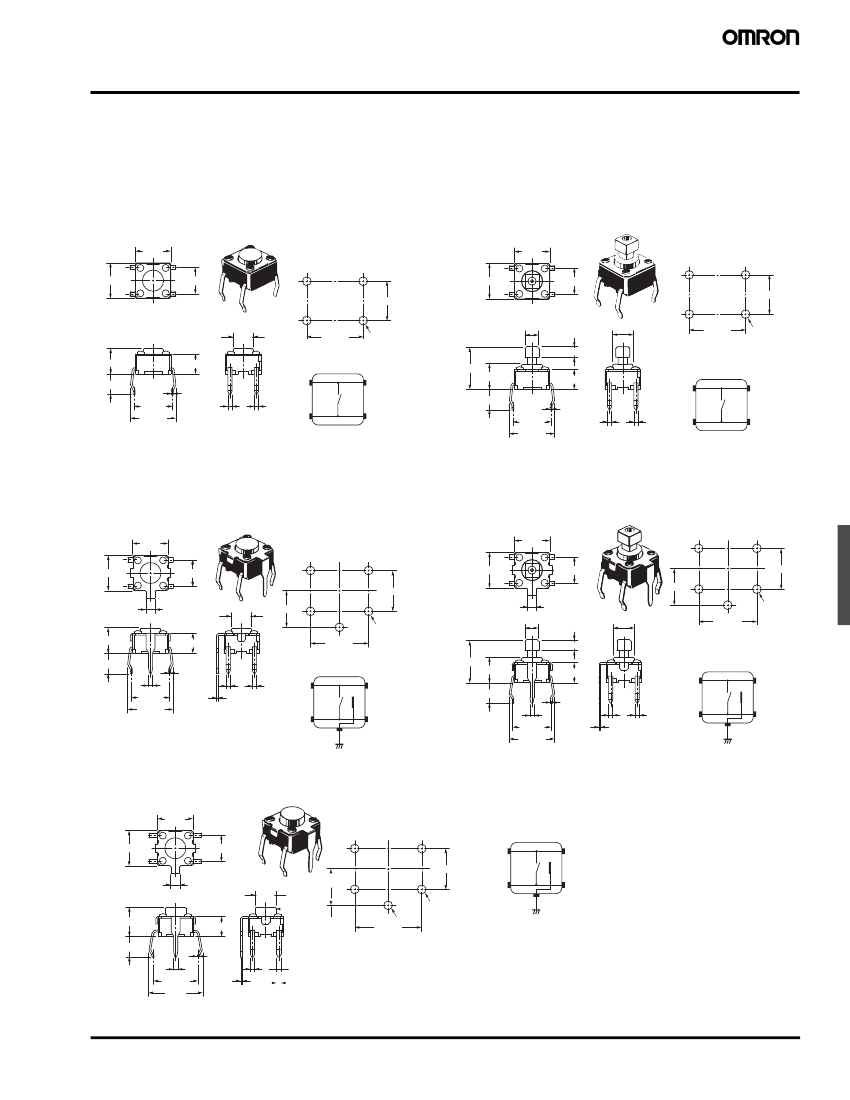

6 x 6 mm Models
Standard, Flat Plunger Type
(without Ground Terminal)
B3F-1000, B3F-1002, B3F-1005, B3F-1020*, B3F-1022*,
B3F-1025*, B3F-1002-G, B3F-1022-G*
6
±0.2
Standard, Projected Plunger Type
(without Ground Terminal)
B3F-1050, B3F-1052, B3F-1055
6
±0.2
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
4.5
±0.2
4.5
±0.1
6
±0.2
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
6
±0.2
4.5
±0.2
4.5
±0.2
3.5
dia.
(See note.)
2.4 2.4
±0.1
6.5
±0.1
Four, 1
±0.1
dia.
1.8
±0.1
7.3
±0.2
4.3
±0.2
3.5
3.5 dia.
6.5
±0.1
Four,
1
±0.05
dia.
4.3
±0.2
3.5
3.4
Terminal Arrangement
/Internal Connections (Top View)
4
3
Terminal Arrangement/Internal
Connections (Top View)
4
3
3.4
0.3
6.5
±0.5
7.7
±0.5
0.7
0.7
2
1
0.3
6.5
±0.5
7.7
±0.5
0.7
0.7
2
1
*
The height of B3F-1020, B3F-1022, B3F-1025, and B3F-1026 is 5±0.2 mm.
Standard, Flat Plunger Type
(with Ground Terminal, Pitch: 6.5 mm)
B3F-1100, B3F-1102, B3F-1105, B3F-1120*, B3F-1122*,
B3F-1125*, B3F-1102-G, B3F-1122-G*
6
±0.2
Standard, Projected Plunger Type
(with Ground Terminal)
B3F-1150, B3F-1152, B3F-1155
6
±0.2
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
4.5
±0.2
4.5
±0.1
1.5
3.5
dia.
3.4
4.1
±0.1
Five, 1
±0.05
dia.
6.5
±0.1
6
±0.2
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
6
±0.2
4.5
±0.2
4.1
±0.1
1.5
2.4 2.4
±0.1
1.8
±0.1
3.5 dia.
4.5
±0.1
Five, 1
±0.05
dia.
6.5
±0.1
(See note.)
4.3
±0.2
3.5
0.3
0.7
Terminal Arrangement/Internal
Connections (Top View)
4
0.7
0.3
2
1
5
0.7
3
7.3
±0.2
4.3
±0.2
3.5
Terminal Arrangement/
Internal Connections
(Top View)
4
3
3.4
6.5
±0.5
7.7
±0.5
0.3
0.7
6.5
±0.5
7.7
±0.5
2
0.7
0.3
0.7
5
1
*The
height of B3F-1120, B3F-1122, and
B3F-1125 is 5±0.2 mm.
Standard, Flat Plunger Type
(with Ground Terminal, Pitch: 7.5 mm)
B3F-1110
6
±0.2
6
±0.2
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
4.5
±0.2
4.5
±0.1
1.5
3.5
dia.
4.1
±0.1
Four,
1.2
±0.05
dia.
Terminal Arrangement/Internal
Connections (Top View)
4
3
2
5
1
5
±0.2
3.5
3.4
1
±0.05
dia.
7.5
±0.1
0.3
0.7
7.5
±0.5
9
±0.5
0.7
0.3
0.7
Tactile Switch
B3F
225
