SPS-4371W-CXX0G
FEATURES
l
l
l
l
l
l
l
l
l
l
l
l
l
Up to 8.5 Gbps Bi-directional Data Links
Complaint to SFP+ MSA
Compliance with Fibre Channel FC-PI-4 800-SM-LC-L
Compliant with 4G and, 2G Fibre Channel
8 Wavelength (λ): 1470 nm to 1610 nm CWDM DFB
LD Transmitter
High Sensitivity APD Receiver
Distance up to 70 km
SFF-8472 Digital Diagnostic Function
AC/AC Coupling according to MSA
Single +3.3 V Power Supply
RoHS 6/6 Compliant
0 to 70
o
C Operating
Class 1 Laser International Safety Standard IEC-60825
Compliant
SPS-4371W-CXX0G
1
***********************************************************************************************************************************************************************
(RoHS Compliant)
DESCRIPTION
The SPS-4371W-CXX0G series single mode transceiver is
small form factor pluggable module for bi-directional serial
optical data communications such as 8x/4x/2x Fibre
Channel. It is with the SFP 20-pin connector to allow hot
plug capability. Digital diagnostic functions are available
via an I
2
C. This module is designed for single mode fiber
and operates at a nominal wavelength of CWDM
wavelength. There are eight center wavelengths available
from 1470 nm to 1610 nm, with each step 20 nm. A
guaranteed minimum optical link budget of 23 dB is
offered. The transmitter section uses a CWDM multiple
quantum well DFB laser and is a class 1 laser compliant
according to International Safety Standard IEC-60825. The
receiver section uses an integrated InGaAs detector
preamplifier (IDP) mounted in an optical header and a
limiting post-amplifier IC.
8.5 Gbps / CWDM / 70 km
Digital Diagnostic LC SFP+ SINGLE-MODE TRANSCEIVER
***********************************************************************************************************************************************************************
APPLICATIONS
l
Multi-rate 8x / 4x / 2x Fibre Channel
LASER SAFETY
This single mode transceiver is a Class 1 laser product. It
complies with IEC-60825 and FDA 21 CFR 1040.10 and
1040.11. The transceiver must be operated within the
specified temperature and voltage limits. The optical ports
of the module shall be terminated with an optical connector
or with a dust plug.
ORDER INFORMATION
P/No.
Bit Rate
(Gb/s)
8/4/2
o
FC-PI
FC-PI-4
Power Budget Wavelength
(dB)
(nm)
> 23
CWDM*
Package
SFP+ with DMI
Temp.
(
o
C)
0 to 70
RoHS
Compliant
Yes
SPS-4371W-CXX0G
Central
Wavelength
-C470
-C490
-C510
-C530
Min.
(nm)
1464.5
1484.5
1504.5
1524.5
CWDM* Wavelength (0 to 70 C)
Typ.
(nm)
1470
1490
1510
1530
Max.
(nm)
1477.5
1497.5
1517.5
1537.5
Label
C47
C49
C51
C53
Central
Wavelength
-C550
-C570
-C590
-C610
Min.
(nm)
1544.5
1564.5
1584.5
1604.5
Typ.
(nm)
1550
1570
1590
1610
Max.
(nm)
1557.5
1577.5
1597.5
1617.5
Label
C55
C57
C59
C61
CWDM*: 8 Wavelengths from 1470 nm to 1610 nm, each step 20 nm.
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
8/1/2010 V1.0
Optoway
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Case Temperature
Power Supply Voltage
Receiver Input for Damage
Symbol
Tstg
Topr
Vcc
Mip
Min
-40
0
-0.5
-3
Max
85
70
3.6
Units
o
C
o
C
V
dBm
SPS-4371W-CXX0G
Notes
2
***********************************************************************************************************************************************************************
Average Power
Recommended Operating Conditions
Parameter
Power Supply Voltage
Operating Case Temperature
Power Supply Current
Data Rate
Symbol
Vcc
Topr
I
CC (TX+RX)
2.125
Min
3.13
0
Typ
3.3
350
8.5
Max
3.47
70
500
Units / Notes
V
o
C
mA
Gb/s
Transmitter Optical Specifications (0
o
C < Topr < 70
o
C, 3.13V < Vcc < 3.47V)
Parameter
Average Launch Power
Output Center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Relative Intensity Noise
Transmitter Dispersion Penalty
Average Launch Power of OFF
Transmitter
Symbol
Po,
AVG
λ
∆λ
SMSR
RIN
TDP
Min
-0.5
λc
–5.5
---
30
Typ
λc
Max
4
λc
+7.5
1
-128
3
-30
Units
dBm
nm
nm
dB
dB/Hz
dB
dBm
Notes
1
2
-20 dB width
With 70 km SMF
1. Output power is power coupled into a 9/125
µm
single-mode fiber.
2. ITU-T G.694.2 CWDM wavelength from 1470 nm to 1610 nm, each step 20 nm.
Receiver Optical Specifications (0
o
C < Topr < 70
o
C, 3.13V < Vcc < 3.47V)
Parameter
Sensitivity
Receiver Overload
LOS -- Deasserted
LOS -- Asserted
Wavelength of Operation
Symbol
Sen
P
MAX
LOS
D
LOS
A
λc
Min
-7
---
-35
1260
Typ
---
---
---
Max
-23.5
-27
---
1620
Units
dBm
dBm
dBm
dBm
nm
Notes
3
Transition: low to high
Transition: high to low
3. Measured with average power; BER < 10
-12
and PRBS 2
7
-1.
Electrical Characteristics
Parameter
Symbol
Min
2.125
150
2.125
350
Typ
8.5
100
1200
8.5
100
600
Max
Units
Gb/s
Ω
mVpp
Gb/s
Ω
mVpp
Notes
High-Speed Signal (CML) Interface Specification
Input Data Rate
Differential Input Impedance
Rin
Differential Data Input Amplitude
Output Data Rate
Differential Output Impedance
Rout
Differential Data Output
Amplitude
Low-Speed Signal (LVTTL) Interface Specification
Input High Voltage
Input Low Voltage
Output High Voltage
Output Low Voltage
Internally AC coupled
700
Internally AC coupled
2.0
GND
2.4
GND
Vcc+0.3
0.8
Vcc
0.5
V
V
V
V
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
8/1/2010 V1.0
Optoway
CONNECTION DIAGRAM
SPS-4371W-CXX0G
3
***********************************************************************************************************************************************************************
PIN Signal Name
1
2
V
EE
T
TX_Fault
Description
Transmitter Signal Ground
Transmitter Fault Indication. Logic
“1”
Output
= Laser Fault. Logic
“0”
Output = Normal
Operation
Logic
“1”
Input (or no connection) = Laser off,
Logic
“0”
= Laser on.
Modulation Definition 2
–
Two wires serial ID
Interface
Modulation Definition 1
–
Two wires serial ID
Interface
Modulation Definition 0
–
Ground in Module
RX Rate Select (LVTTL). This pin has an
internal 30k pulldown to ground. A signal on
this pin will not affect module performance.
Loss of Signal Out (OC).
TX Rate Select (LVTTL). This pin has an
internal 30k pulldown to ground. A signal on
this pin will not affect module performance.
Receiver Signal Ground
PIN Signal Name
11
12
V
EE
R
RD-
Description
Receiver Signal Ground
Inverse Receiver Data Out
3
4
5
6
7
TX_Disable
SDA
SDL
MOD-ABS
RS0
13
14
15
16
17
RD+
V
EE
R
V
CC
R
V
CC
T
V
EE
T
Receiver Data Out
Receiver Signal Ground
Receiver Power
–
3.3V±5%
Transmitter Power
–
3.3V±5%
Transmitter Signal Ground
8
9
RX_LOS
RS1
18
19
TD+
TD-
Transmitter Data In
Inverse Transmitter Data In
10
V
EE
R
20
V
EE
T
Transmitter Signal Ground
MODULE DEFINITION
Module Definition
4
PIN 4
SDA
PIN 5
SCL
PIN 6
MOD-ABS
Interpretation by Host
Serial module definition
protocol
Module Definition 4 specifies a serial definition protocol. For this definition, upon power up, SDA and SDL appear as no connector
(NC) and MOD-ABS is TTL LOW. When the host system detects this condition, it activates the serial protocol. The protocol uses the 2-wire
serial CMOS E
2
PROM protocol of the ATMEL AT24C01A/02/04 family of components.
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
8/1/2010 V1.0
Optoway

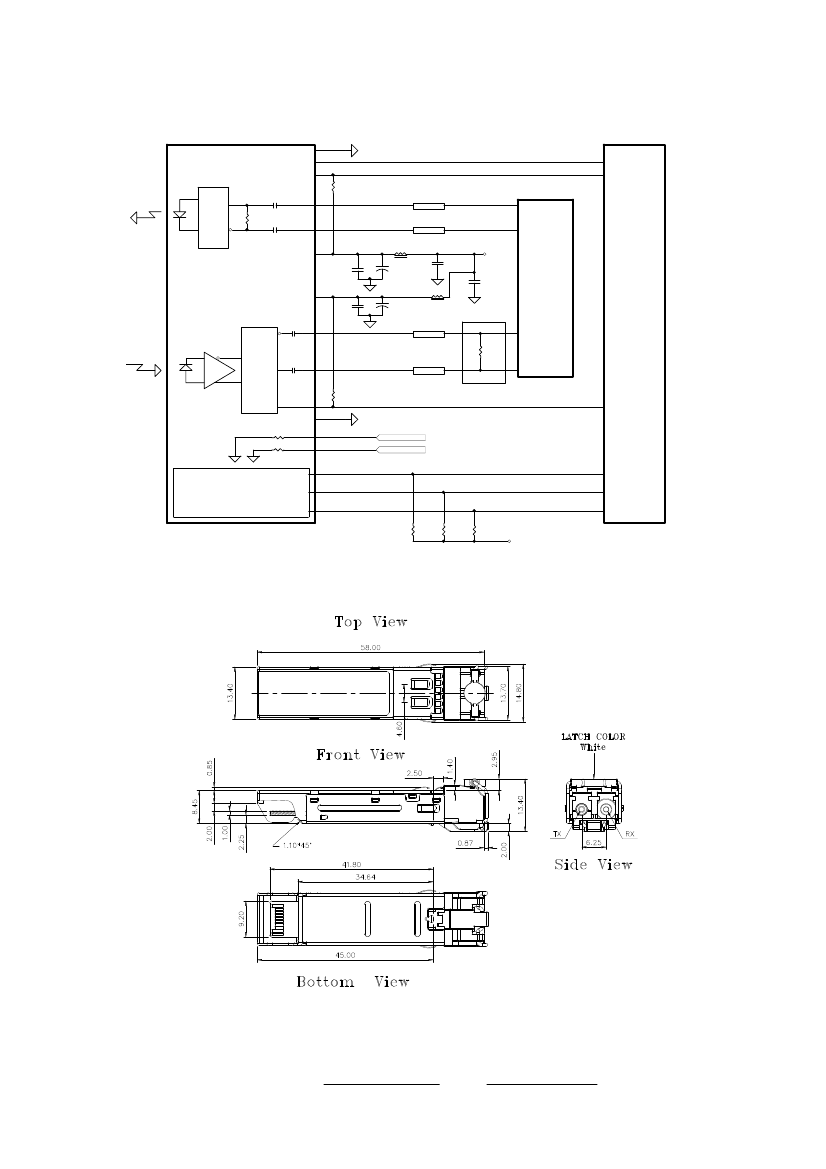

RECOMMENDED CIRCUIT SCHEMATIC
Vee T
Tx_DISABLE
Tx_FAULT
(1,17,20)
3
2
10 KΩ
TD +
18
Z=50Ω
TD -
19
Z=50Ω
Vcc T
16
0.1μF
4 .7
μH
Vcc 3.3V
22
μF
0.1μF
0.1μF
Vcc R
15
0.1μF
22
μF
4 .7
μH
TD -
TD +
SPS-4371W-CXX0G
4
***********************************************************************************************************************************************************************
Tx_DISABLE
Tx_FAULT
LD
Driver
100Ω
SerDes
IC
Protocol
IC
RD -
12
Z=50Ω
100Ω
RD -
POST
Amp
RD +
13
Z=50Ω
10 KΩ
RD +
depending on SERDES
LOSS OF SINGAL
LOS
Vee R
RS1
30KΩ
30KΩ
MOD_ABS
RS0
8
(10,11,14)
9
7
TX Rate Select
RX Rate Select
6
5
4
10 KΩ
10 KΩ
10 KΩ
Vcc 3.3V
MODULE DETECT
SCL
SDA
EEPROM
SCL
SDA
SFP+ module
PACKAGE DIAGRAM
Units in mm
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
8/1/2010 V1.0
Optoway
REVISION HISTORY
Version
1.0
Initial datasheet
SPS-4371W-CXX0G
5
***********************************************************************************************************************************************************************
Subject
Release Date
2010/8/1
Note:
Specifications subject to change without notice.
**********************************************************************************************************************************************************************
