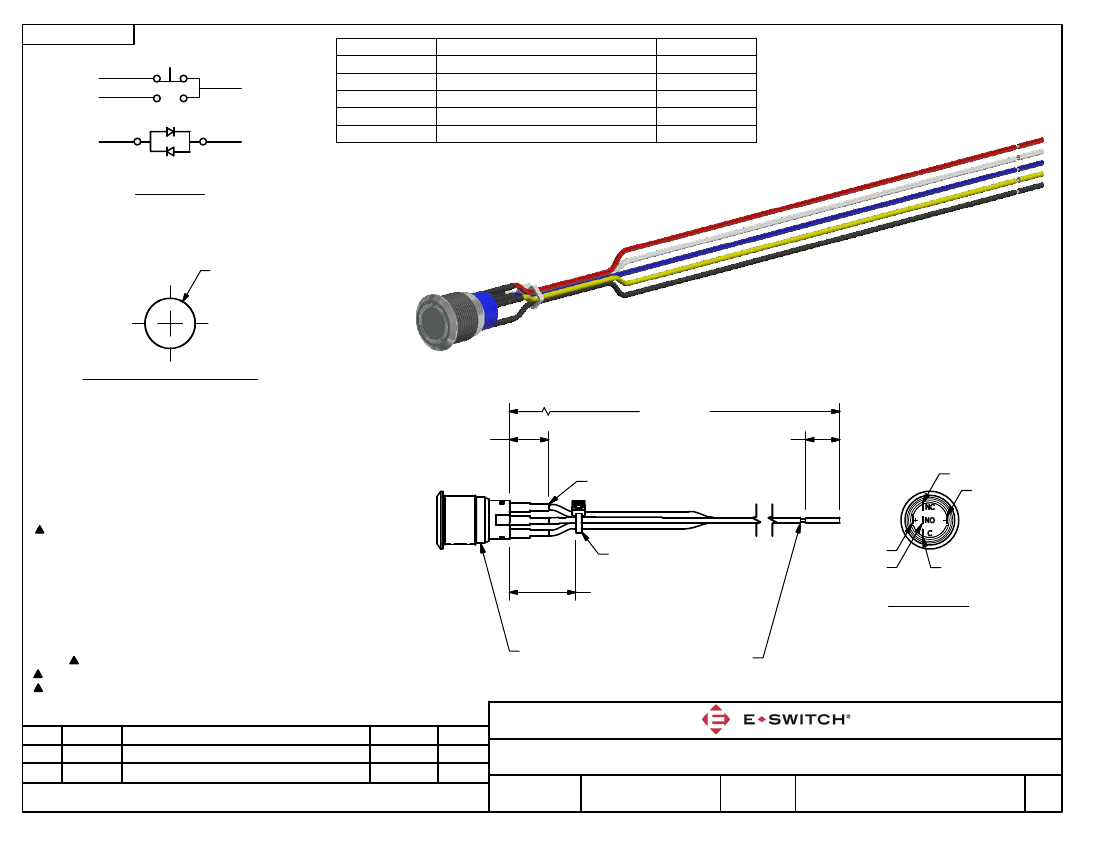

SHEET 1 OF 1
WHITE
BLUE
3
2
GREEN (FORWARD)
(+)
(-)
+ -
- +
GREEN (REVERSE)
SCHEMATIC
ON - ON - SPDT ILLUMINATED
1
YELLOW
RED
BLACK
SWITCH
SW1-1
SW1-2
SW1-3
SW1- (-)
SW1- (+)
WIRE
WIRE, 24AWG AWM UL1015, YELLOW
WIRE, 24AWG AWM UL1015, BLUE
WIRE, 24AWG AWM UL1015, WHITE
WIRE, 24AWG AWM UL1015, BLACK
WIRE, 24AWG AWM UL1015, RED
LENGTH
300.0 [11.8 in]
300.0 [11.8 in]
300.0 [11.8 in]
300.0 [11.8 in]
300.0 [11.8 in]
[
.756
19.20
+.20
- .00
+.008
- .000
in
]
RECOMMENDED PANEL CUTOUT
MAX. PANEL THICKNESS 10.0 [.39 in]
NOTES:
1. DIMENSIONS IN MM [INCH]
15.0
2.0
2. ALL MATERIAL SHALL BE ROHS COMPLIANT
[.6
.1
in]
3. GENERAL TOLERANCE: X.X = 0.4
X.XX = 0.25
4. TERMINAL NUMBERS FOR REF ONLY
5. CONTACT MATERIAL: SILVER
6. RATING: 3A 250 VAC cUL
7. OPERATING TEMP.: -20 C to 55 C
8. LAMP VOLTAGE: 20mA 3V
9. TRAVEL: 3.2mm
10. ACTUATION FORCE: 2.5 1.0 N
11. MOUNTING NUT TORQUE: 5-14 Nm
12. INGRESS PROTECTION: IP67
13. MECHANICAL LIFE: 1,000,000 CYCLES.
14. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES AT FULL LOAD.
15. INSULATION RESISTANCE: 1,000 M @ 500VDC MIN.
16. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
17. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
18.
DENOTES CRITICAL PARAMETER.
19. HARDWARE: O-RING AND HEXNUT SUPPLIED IN BULK IN A PLASTIC BAG.
20. USE PART NUMBERS DESIGNATED OR ENGINEERING APPROVED
EQUIVALENTS.
C
B
REV
23871
23796
PCR NO
UPDATED HEATSHRINK DIM. TO 15.0
UPDATED SCHEMATIC AND NOTES
DESCRIPTION
5/1/19
3/5/19
DATE
MJR
MJR
BY
SCALE
DATE
DR
DWG
REV
TITLE
300.0
10.0
[11.8
.4
in]
13.0
2.0
[.5
.1
in]
HEATSHRINK OVER
SOLDERED CONNECTIONS
TERMINAL 3
(-)
WIRE TIE
25.4
(
[1.0 in]
)
(+)
TERMINAL 2
TERMINAL 1
BOTTOM VIEW
SHOWN WITHOUT
WIRING
SW1 - T940010
ULV4F23SS331
(5) WIRE, 24 AWG,
AWM UL1015 WITH
ENDS PRE-STRIPPED
ULV4FW3SS331
2:3
1/28/2019
MJR
T940503
C
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
