Application:

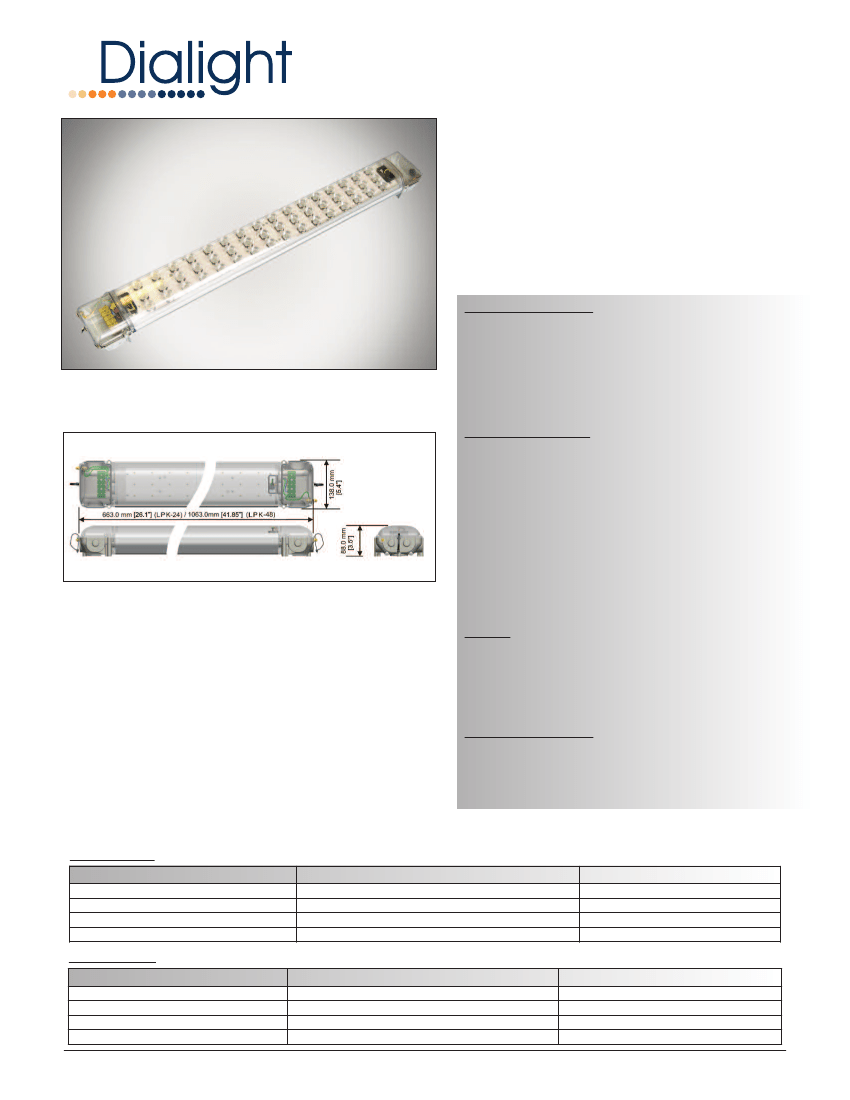

The Dialight Durostie™ Series LED Linear Fixture is a rugged and durable
solution for demanding industrial and utility lighting applications. Its sealed
housing allows its use outdoors as well as indoors and with its automatic
input voltage sensing it can be used in most locations around the world.
The fixture is rated for 60,000 hours continuous operation, requiring no
maintenance apart from routine inspection throughout its operational life.
All of Dialight’s long life LED luminaires are designed to meet the most
demanding specification criteria while offering maximum energy savings,
reduced maintenance costs, and a superior quality of light.
Mechanical Information:
Container Dimensions:
LPK24 = 8.27” X 6.10” X 30.70”
210mm x 155mm x 780mm
LPK48 = 8.27” X 6.10” X 45.67”
210mm x 155mm x 1160mm
LPK24
=
13.5lbs (6.13kg)
LPK48
=
19.8lbs (9.00kg)
DuroSite™ Series LPK LED
Linear Fixture
Container Weight:
Electrical specifications:
Operating Voltage:
Power Consumption:
Operating Temp:
Surge / Lightning
Protection:
THD:
90-277V 50/60Hz
LPK24 = 36W
LPK48 = 72W
-40ºF to +133ºF (-40ºC to +56ºC)
1 kV line to line
2 kV line to ground
< 20%
> 0.9
Dimensions in Inches [mm]
Power Factor:
Material:
Body:
Lens:
Certifications & Ratings:
w
Certified to UL1598
w
CE compliant
w
CSA 22.2 # 250.0-04
w
IP65 rated (UL Versions)
w
IP66 rated (CE Versions)
Features & Benefits:
w
>70% lumen maintenance after 60,000 operating hours
w
Utilizes the latest >100 lumens per LED technology for cool white
w
Optional optics to direct light where most needed results in
significant energy savings and/or increased luminaire spacing
w
Can be wired in series
w
Instant on/off
w
Universal input voltage 90-277V 50/60Hz
UL Order Codes:
UL Version Part Number
LPK000623112400
LPK000621112600
LPK000643112400
LPK000641112600
CE Order Codes:
CE Version Part Numbers
LPK24CWNOX
LPK24WWNOX
LPK48CWNOX
LPK48WWNOX
Description
LPK24
LPK24
LPK48
LPK48
Cool White
Warm White
Cool White
Warm White
Anodized alum. 6061
Clear polycarbonate
Accessories (hardware):
Stainless steel
Photometric Information:
CRI (typ):
CCT (typ):
70
6350K (cool white)
3500K (warm white)
Description
LPK24
LPK24
LPK48
LPK48
Cool
Cool
Cool
Cool
White
White w/ Wide Optics
White
White w/ Wide Optics
Initial Fixture Lumens
2,000
1,800
4,000
3,600
Initial Fixture Lumens
2,010
2,010
4,020
4,020
www.dialight.com

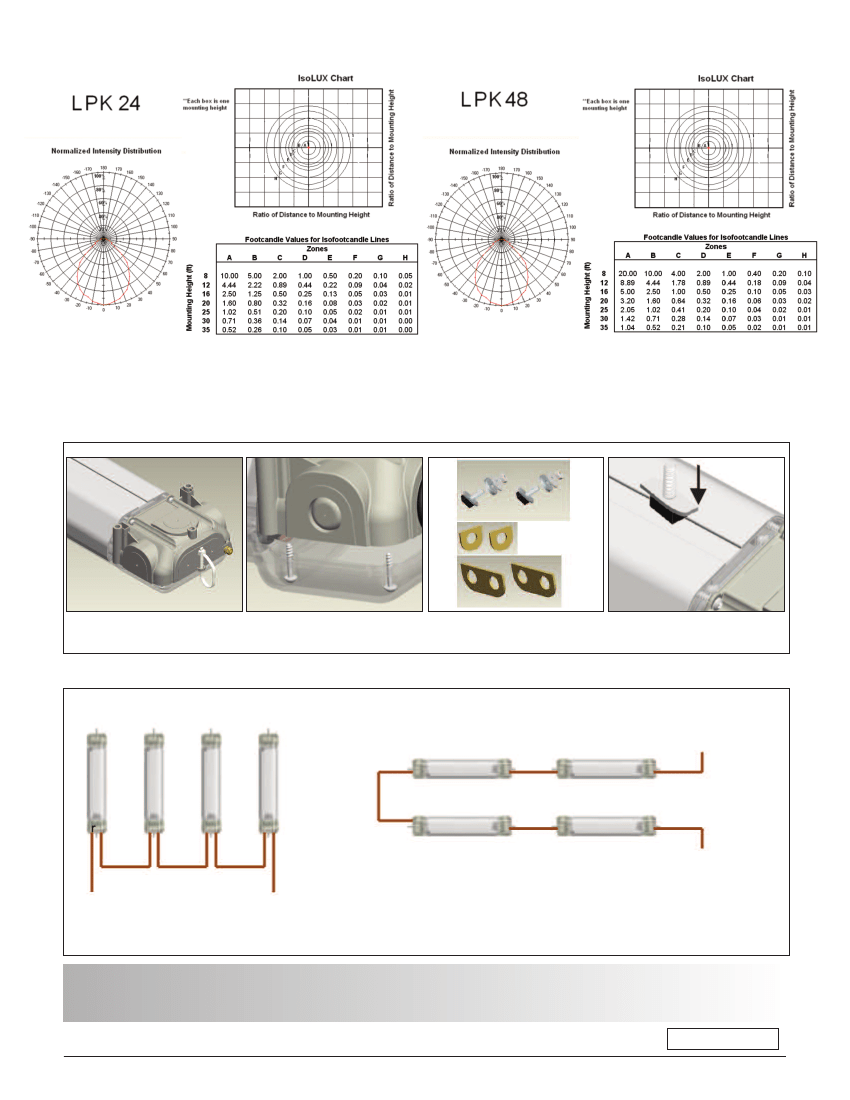

DuroSite™ Series LPK LED Linear Fixture - Light Measurement Data
Light measurement data shown with no optics.
DuroSite™ Series LPK LED Linear Fixture - Fixing / Wiring Detail
End Assembly
Available Entry Points
End Assembly
Drill-Out Location
Mounting Screws
Slot-Bolt Assembly
Required for Tracks/Raceways wiring
To further units
From AC source
From AC source
Daisychain Configuration
To further units
String Configuration
Dialight reserves the right to make changes at any time in order to supply the best product possible.
The most current version of this document will always be available at:
www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXLUMLPKX001.pdf
MDEXLUMLPKX001_E
