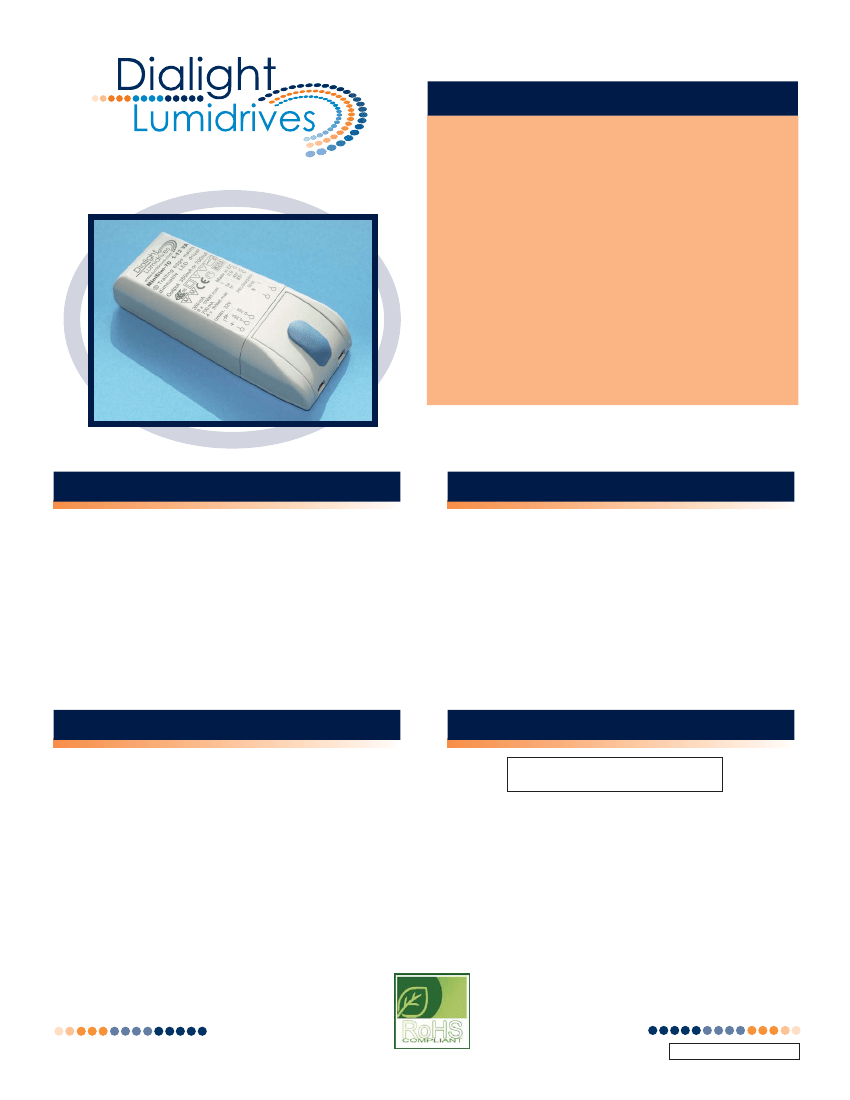

MND70-12-1-ML-N

Description
MINIDIM LED DRIVER
File Size141KB,2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Download Datasheet View All

MND70-12-1-ML-N Overview

MINIDIM LED DRIVER

FEATURES / BENEFITS
Mains dimmable LED driver accepts trailing edge
phase control voltage to produce dimmed LED
light ouput
Dimming level down to *20%
Choice of max outputs 350 or 700mA
High reliability (no electrolytic capacitors)
Thermal, short circuit, over voltage & open circuit
protection
Cage clamp terminals for easy wiring
EN61347-2-13, EN62384, EN55015,
EN61000-3-2 & EN61547 compliant
CE, ENEC-05 Approved
MINIDIM
LED DRIVER
OPERATING CONDITIONS
Input voltage 230-240V 50Hz

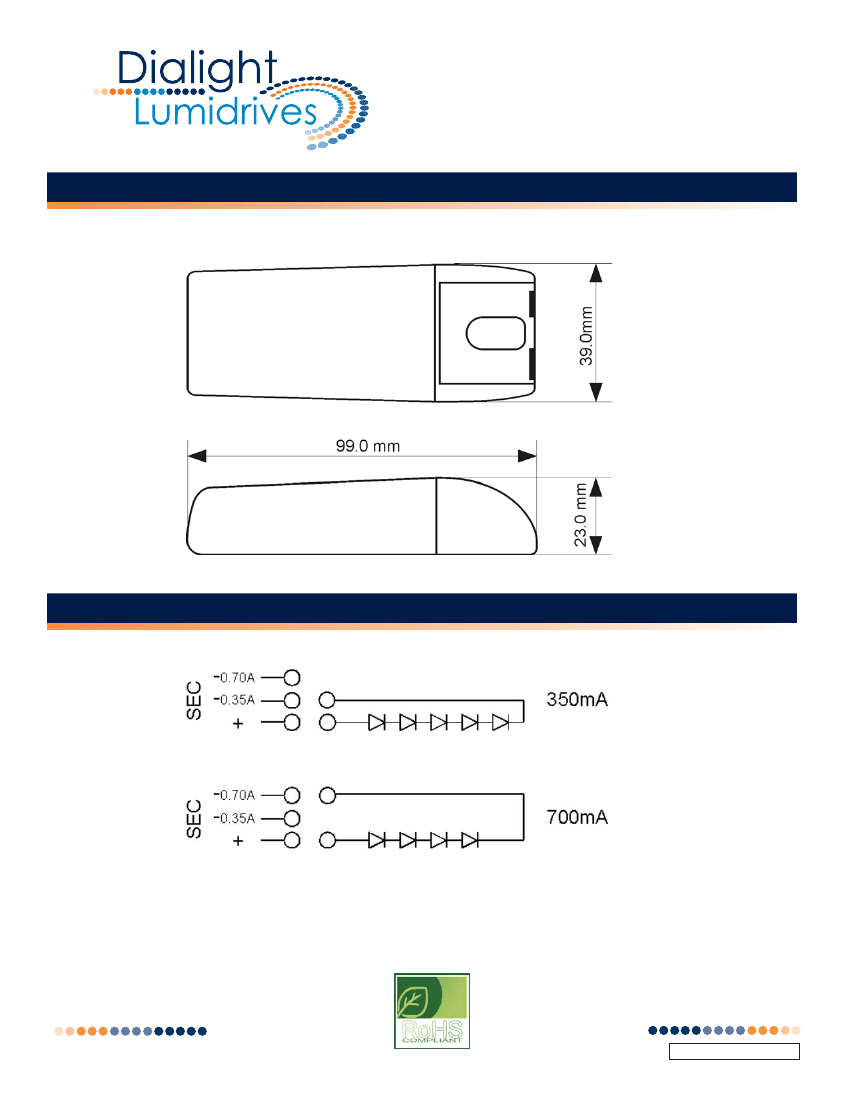

Drives 1-9 LEDs @ 350mA or
1-4 LEDs @ 700mA
Max Vf = 32V @ 350mA or 18V @ 700mA
Ambient temperature -20ºC to +45ºC
Max case temperature < +85ºC
Output power 1.0 - 10.5W
APPLICATIONS
Residential Lighting
Restaurants, bars & entertainment venues
Meeting & conference rooms
Display cases & furniture
SUGGESTED DIMMERS
Insta 53128 R/Jung 1254 UDE/BERKER/GIRA
OPUS 852395
Insta 55190 / BERKER 286710 / JUNG / GIRA
EPV PAB315
Crabtree Trailing Edge Push Button Dimmer
LEAX LXR600
*Minimum dimming level determined by dimmer type & load conditions.
Larger loads typically allow for deeper dimming.
ORDERING INFORMATION
MND70-12-1-ML-N
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight-Lumidrives Ltd.
York House • Wetherby Road • Long Marston, York, YO26 7NH
Tel: +44(0) 1904 739150 • Fax: +44(0) 1904 737926 • www.dialight.com
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEXLUMMNDM_A
