EB52E8C2N-16.800M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB52E8C2N-16.800M

EB52E8C2N-16.800M: DescriptionTCXO, CLOCK, 16.8 MHz, HCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 10 PIN; CategoryPassive components oscillator; File Size104KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EB52E8C2N-16.800M Overview

TCXO, CLOCK, 16.8 MHz, HCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 10 PIN

EB52E8C2N-16.800M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	not_compliant
Other features	BULK
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	0.5%
JESD-609 code	e4
Manufacturer's serial number	EB52E8
Installation features	SURFACE MOUNT
Nominal operating frequency	16.8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 2.0mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

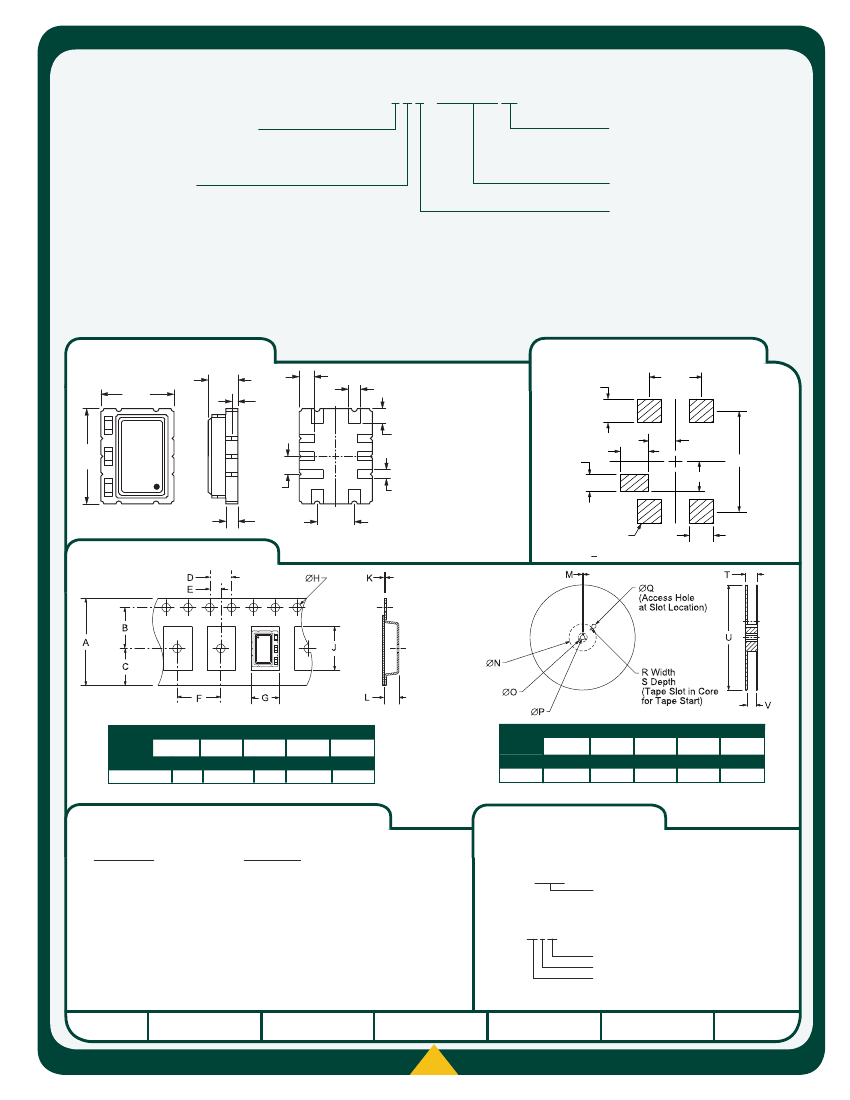

Preview

Download Datasheet

View All

EB52E8

Series

• RoHS Compliant (Pb-free)

• Temperature Compensated Crystal Oscillator (TCXO)

• HCMOS Output

• 3.3V Supply Voltage

• Ceramic 10-Pad SMD Package

• Stability to 0.5ppm

• External Voltage Control Option Available

EB52E8

H 2.0

L 7.0

W 5.0

OSCILLATOR

ELECTRICAL SPECIFICATIONS

6.000, 6.144, 6.400, 6.500, 8.000, 8.192, 9.216, 9.600, 9.720, 10.000, 12.000, 12.288, 12.800, 13.000,

13.560, 14.400, 14.850, 16.000, 16.384, 16.800, 18.432, 19.200, 19.440, 19.800, 20.000, 24.000, 24.5535,

24.576, 25.000, 26.000

vs. Operating Temperature Range (V

= 3.3V

, V

= 1.65V

)

See Part Numbering Guide

Frequency Stability

vs. Frequency Tolerance (25°C ±2°C, V

= 3.3V

, V

= 1.65V

)

±1.0ppm Maximum

vs. Input Voltage (±5%)

±0.3ppm Maximum

vs. Load (±10%)

±0.3ppm Maximum

vs. Aging (at 25°C)

±1ppm / Year Maximum

See Part Numbering Guide

Operating Temperature Range

3.3V

±5%

Supply Voltage (V

)

10mA Maximum

Input Current

90% of V

Minimum

= -4mA

Output Voltage Logic High (V

)

= +4mA

10% of V

Maximum

Output Voltage Logic Low (V

)

Measured at 20% to 80% of Waveform

5nSec Maximum

Rise/Fall Time

Measured at 50% of Waveform

50 ±5(%) Maximum

Duty Cycle

15pF HCMOS Load

Load Drive Capability

±5ppm Minimum

External Trim (Control Voltage Option)

1.65V

±1.65V

; Positive Transfer Characteristic

0.0V

to V

Control Voltage Range

5% Maximum

Linearity

100kOhms Minimum

Input Impedance

-80dBc/Hz

At offset of 10Hz

Typical Phase Noise (at

-115dBc/Hz

At offset of 100Hz

12.800MHz)

-135dBc/Hz

At offset of 1kHz

-145dBc/Hz

At offset of >10kHz

Enables Output

Tri-State Input Voltage (V

and V

)

No Connect

Enables Output

+0.9V

Minimum

Disables Output: High Impedance

+0.1V

Maximum

= 12kHz to 20MHz

1pSec Maximum

RMS Phase Jitter

5mSec Maximum

Start Up Time

-40°C to 125°C

Storage Temperature Range

MANUFACTURER
