598-9281-107F

Description
SINGLE COLOR LED, YELLOW, 2 mm
CategoryLED optoelectronic/LED    photoelectric
File Size1MB，2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric Compare View All

598-9281-107F Online Shopping

Suppliers Part Number Price MOQ In stock
598-9281-107F - - View Buy Now

598-9281-107F Overview

SINGLE COLOR LED, YELLOW, 2 mm

598-9281-107F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerDIALIGHT
package instruction3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Codecompli
colorGREEN
ConfigurationSINGLE
Maximum forward current0.025 A
JESD-609 codee4
Lens typeDIFFUSED
Nominal luminous intensity300.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Optoelectronic device typesSINGLE COLOR LED
total height0.68 mm
method of packingTAPE AND REEL 7\"
shapeRECTANGULAR
size2 mm
surface mountYES
Terminal surfaceGold (Au) - with Nickel (Ni) barrie
Terminal pitch3.5 mm
perspective140 deg
Base Number Matches1

Preview

Download Datasheet

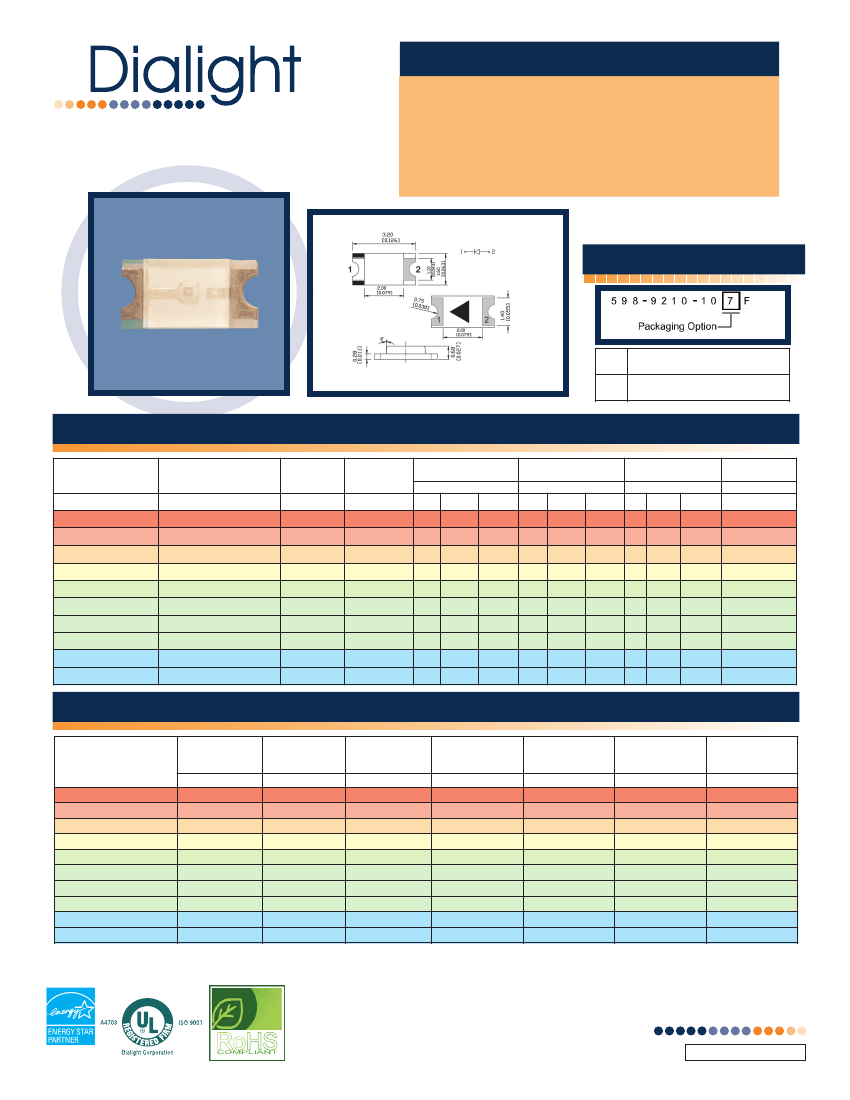

FEATURES / BENEFITS
Compatible with automatic placement equipment
Micro LED
®
SMD LED
“598 SERIES” 1206 PACKAGE
(3.2mm X 1.6mm X 0.7mm) Single Color Diffused
RoHS compliant
Packaged in 8mm tape, 7” reel and 20 per strip
Meets EIA-481-1 pkg. std.

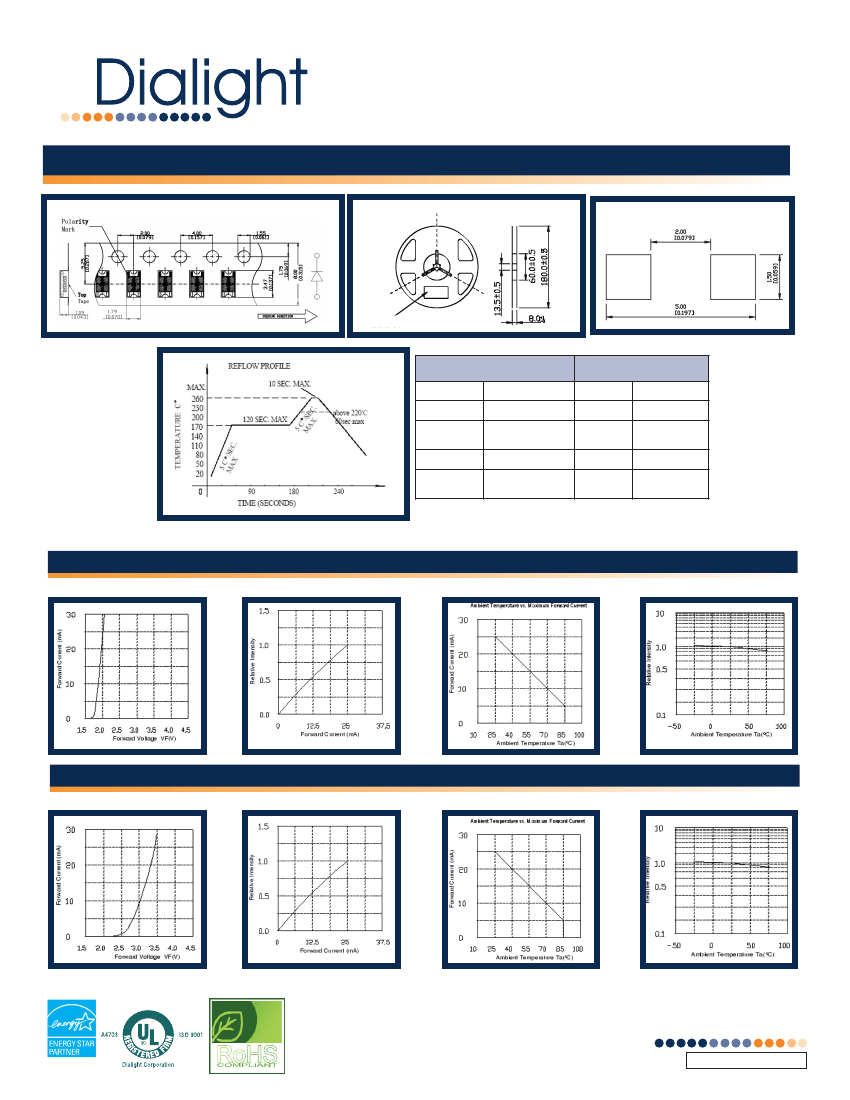

Package Outline Drawing:
ORDERING INFORMATION
2
Notes 1. All dimensions are in mm [inches];
2. Tolerances are ±0.1mm [0.004inch] unless noted.
20 pieces on tape
7” reel 3000pcs / reel
7
PART NUMBERS
DIALIGHT P/N
EMITTED COLOR
MATERIAL
LENS COLOR
MIN
598-9210-107F
598-9220-107F
598-9230-107F
598-9250-107F
598-9260-107F
598-9270-107F
598-9280-107F
598-9281-107F
598-9290-107F
598-9291-107F
RED
RED-ORANGE
ORANGE
YELLOW
YELLOW-GREEN
GREEN
GREEN
GREEN
BLUE
BLUE
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
GaP
InGaN
InGaN
InGaN
InGaN
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
30
120
70
100
20
10
150
220
60
90
LUMINOUS
INTENSITY
If = 20 ma
TYP
-
150
-
130
40
20
220
300
90
140
MAX
80
200
150
160
60
40
300
400
140
160
DOMINANT
WAVELENGTH
If = 20 ma
MIN
630
620
600
583
570
562
520
520
470
470
TYP
635
625
-
-
-
-
523
523
473
473
MAX
640
630
610
590
575
570
525
525
475
475
MIN
1.7
1.7
1.7
1.7
1.8
1.8
3
3
2.8
2.8
FORWARD
VOLTAGE
If = 20 ma
TYP
2
2
2
2
2
2
3.2
3.2
3.2
3.2
MAX
2.4
2.4
2.4
2.4
2.4
2.4
3.5
3.5
3.5
3.5
140
140
140
140
140
140
140
140
140
140
VIEWING
ANGLE
° DEGREES
ABSOLUTE RATINGS
(@ Ta = 25ºC)
DIALIGHT P/N
598-9210-107F
598-9220-107F
598-9230-107F
598-9250-107F
598-9260-107F
598-9270-107F
598-9280-107F
598-9281-107F
598-9290-107F
598-9291-107F
Power
Dissipation
(mW)
60
60
60
55
72
60
87.5
87.5
87.5
87.5
Forward
Current
(mA)
25
25
25
25
30
25
25
25
25
25
Reverse
Voltage
(V)
5
5
5
5
5
5
5
5
5
5
Operating
Temperature
Range
(ºC)
-30~+85
-30~+85
-30~+100
-30~+85
-20~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
Storage
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-30~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Peak Pulse
Forward
Current
(mA)
100
100
100
100
100
100
100
100
100
100
Electrostatic
Discharge
(HBM)
2000
2000
2000
1000
2000
1000
1000
1000
1000
2000
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5981206DF_A
