84001RB Overview

Rectangular S/T/T, Signal and Backup Lamps

84001RB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
color	RED
JESD-609 code	e0
Number of functions	1
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

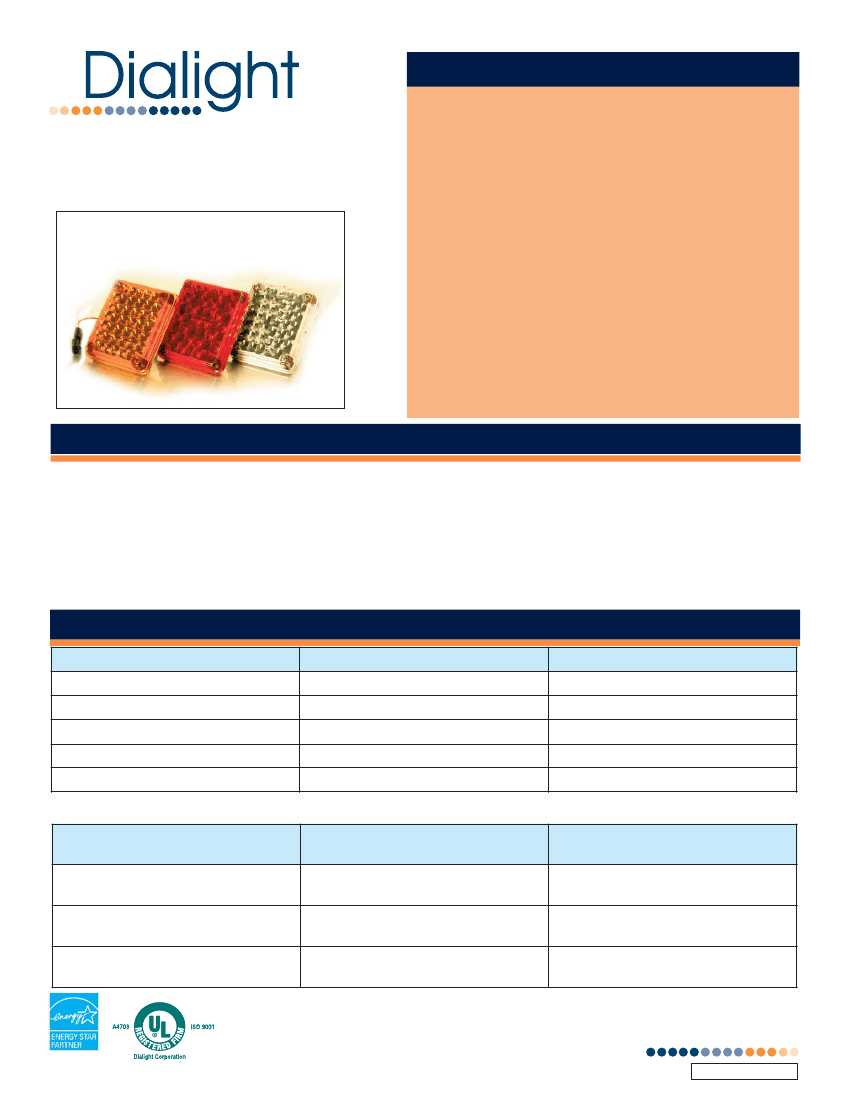

FEATURES / BENEFITS

p

Designed to replace Hella 65xxx Series incandescent lamps

84 SERIES

Rectangular S/T/T, Signal

and Backup Lamps

p

Unique potted design assures seal integrity

p

Packard Weather Pak connection supplied

p

Polycarbonate lens

p

Lens hard-coating option to protect from chemicals and

abrasion

p

Faster response time than incandescent lamps

p

Higher intensity version for single lamp applications

available

p

Reduced current draw

p

Longer life

APPLICATION

The 84 series LED Stop, Tail, & Turn, rear turn signal, and rear backup lamps were developed by Dialight for bus applications

where increased safety and reliability are a major concern. These lamps were designed for use on both existing and new

vehicle designs.

Replaces incandescent product currently used on MCI, Prevost, Blue Bird and Thomas Built Buses.

The faster response of LEDs increase safety by providing additional notification to trailing vehicles of the bus’s intention to

stop or turn.

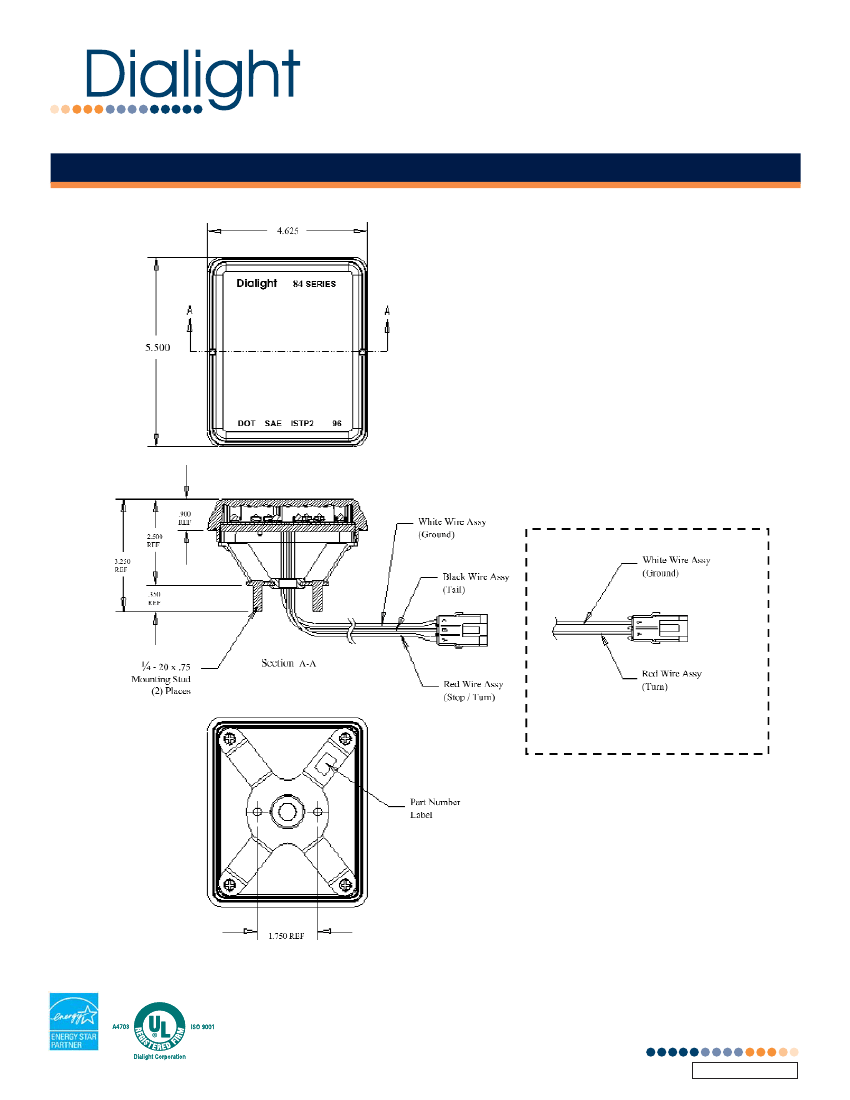

SPECIFICATIONS

Part Number

84001AB

84001RB

84121AB

84121RB

84121CB

Color

Amber

Red

Amber

Red

White

Hard Coated

No

Yes

Part Number

84xx1AB

84xx1RB

84xx1CB

Descritpion

Amber LED Rear Turn Signal

Red LED Stop, Tail, Turn

White LED Rear Backup

Typical Power Ratings

735 mAmps @ 12.8 Volts

36 mAmps @ 12. Volts (Tail Mode)

332 mAmps @ 12.8 Volts(Stop/Turn

Mode)

320mAmps @ 12.8 Volts

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDTB84BX001_B

84001RB Related Products

	84001RB	84001AB	84121AB	84121CB	84121RB
Description	Rectangular S/T/T, Signal and Backup Lamps	Rectangular S/T/T, Signal and Backup Lamps	Rectangular S/T/T, Signal and Backup Lamps	Rectangular S/T/T, Signal and Backup Lamps	Rectangular S/T/T, Signal and Backup Lamps
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible
Reach Compliance Code	compli	compliant	compli	-	compli
color	RED	AMBER	AMBER	-	RED
JESD-609 code	e0	e0	e0	-	e0
Number of functions	1	1	1	-	1
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	-	SINGLE COLOR LED DISPLAY CLUSTER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	-	1
