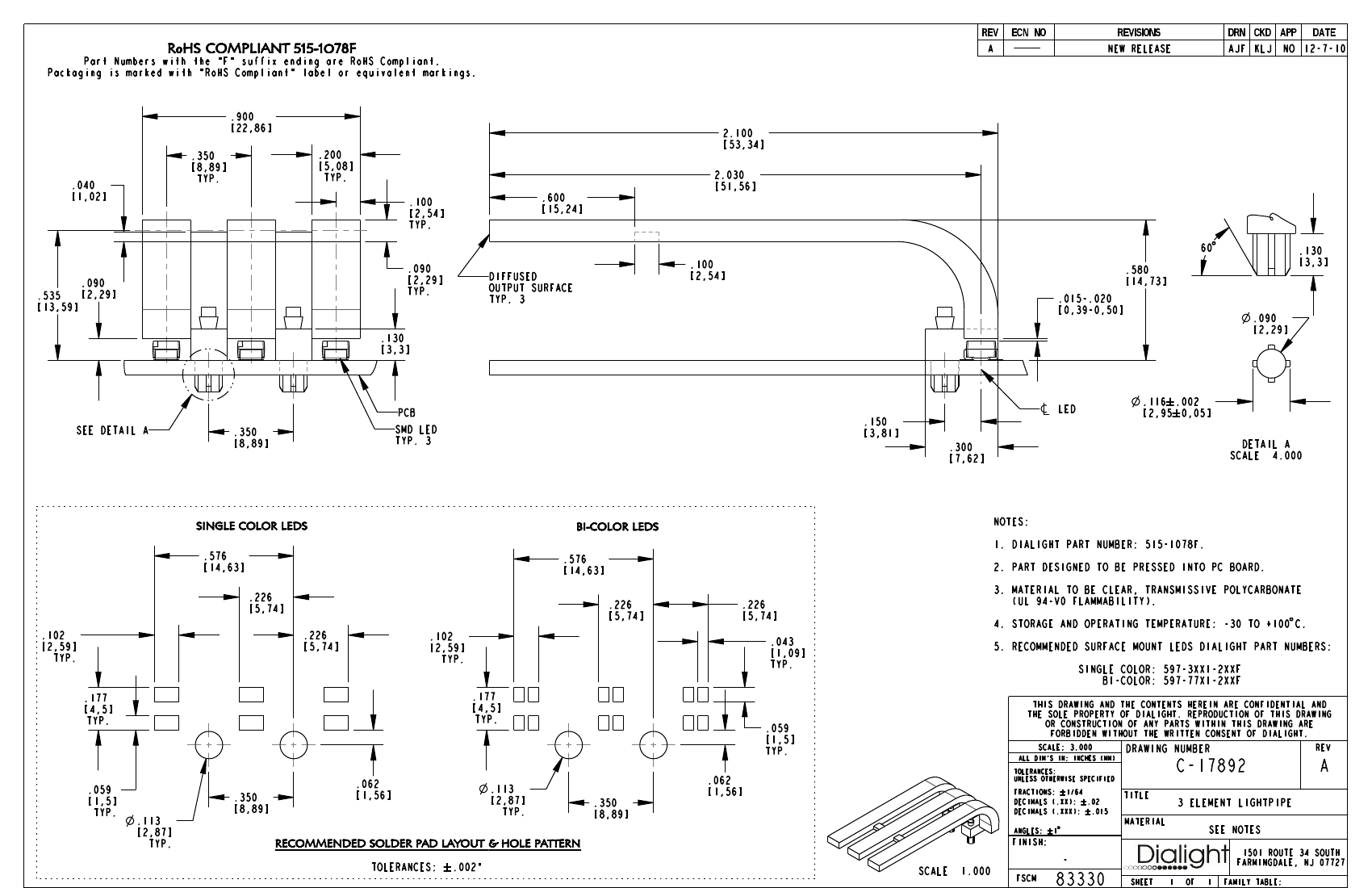

C-17892: Description3 ELEMENT LIGHTPIPE; File Size164KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet View All

C-17892 Overview

3 ELEMENT LIGHTPIPE

Preview

Download Datasheet

View All

REV

ECN NO

REVISIONS

NEW RELEASE

DRN CKD APP

DATE

Part Numbers with the "F" suffix ending are RoHS Compliant.

Packaging is marked with "RoHS Compliant" label or equivalent markings.

RoHS COMPLIANT 515-1078F

AJF KLJ

NO 12-7-10

.900

[22,86]

.350

[8,89]

TYP.

.200

[5,08]

TYP.

.100

[2,54]

TYP.

.600

[15,24]

2.100

[53,34]

2.030

[51,56]

.040

[1,02]

60 $

.090

[2,29]

.090

[2,29]

TYP.

DIFFUSED

OUTPUT SURFACE

TYP. 3

.100

[2,54]

.015 -.020

[0,39 -0,50 ]

.580

[14,73]

.130

[3,3]

.535

[13,59]

.130

[3,3]

.090

[2,29 ]

PCB

SEE DETAIL A

.350

[8,89]

SMD LED

TYP. 3

LED

.150

[3,81]

.300

[7,62]

.116 #

.002

[2,95 #

0,05 ]

DETAIL A

SCALE 4.000

SINGLE COLOR LEDS

.576

[14,63]

.226

[5,74]

.102

[2,59]

TYP.

.226

[5,74]

.102

[2,59]

TYP.

BI-COLOR LEDS

.576

[14,63]

.226

[5,74]

.226

[5,74]

.043

[1,09]

TYP.

.177

[4,5]

TYP.

NOTES:

1. DIALIGHT PART NUMBER: 515-1078F.

2. PART DESIGNED TO BE PRESSED INTO PC BOARD.

3. MATERIAL TO BE CLEAR, TRANSMISSIVE POLYCARBONATE

(UL 94-V0 FLAMMABILITY).

4. STORAGE AND OPERATING TEMPERATURE: -30 TO +100

5. RECOMMENDED SURFACE MOUNT LEDS DIALIGHT PART NUMBERS:

SINGLE COLOR: 597-3XX1-2XXF

BI-COLOR: 597-77X1-2XXF

THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND

THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING

OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE

FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.

SCALE: 3.000

ALL DIM'S IN: INCHES (MM)

TOLERANCES:

UNLESS OTHERWISE SPECIFIED

.177

[4,5]

TYP.

.059

[1,5]

TYP.

.062

[1,56]

.350

[8,89]

DRAWING NUMBER

REV

C-17892

TITLE

MATERIAL

.059

[1,5]

TYP.

.350

[8,89]

.113

[2,87 ]

TYP.

.062

[1,56]

.113

[2,87 ]

TYP.

FRACTIONS: #

1/64

DECIMALS (.XX): #

.02

DECIMALS (.XXX): #

.015

ANGLES:

# $

3 ELEMENT LIGHTPIPE

SEE NOTES

1501 ROUTE 34 SOUTH

FARMINGDALE, NJ 07727

RECOMMENDED SOLDER PAD LAYOUT & HOLE PATTERN

TOLERANCES:

.002"

SCALE

1.000

FINISH:

FSCM

83330

SHEET

FAMILY TABLE:
