ES52F3D30N-32.768M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ES52F3D30N-32.768M

ES52F3D30N-32.768M: DescriptionTCXO, CLIPPED SINE OUTPUT, 32.768 MHz; CategoryPassive components oscillator; File Size754KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric Compare View All

ES52F3D30N-32.768M Overview

TCXO, CLIPPED SINE OUTPUT, 32.768 MHz

ES52F3D30N-32.768M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ECLIPTEK
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	YES
frequency stability	3%
JESD-609 code	e0
Manufacturer's serial number	ES52F3
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	32.768 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.7 V
physical size	18.3mm x 11.7mm x 4.8mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

ES52F3

Series

• Temperature Compensated

Crystal Oscillator (TCXO)

• Clipped Sinewave Output

• 3.3V Supply Voltage

• Stability to 1.5ppm

• External voltage

control option available

NOTES

ES52F3

H 4.8

L 18.3

W 11.7

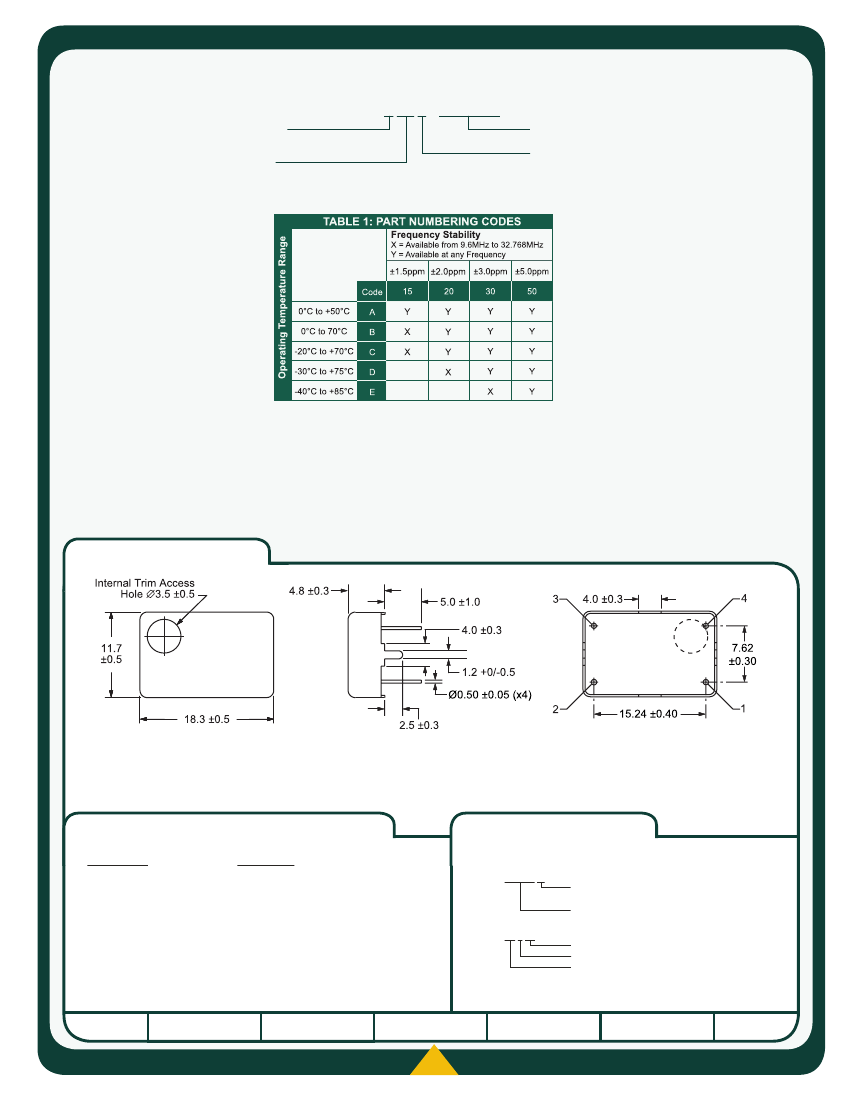

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

9.600MHz to 44.736MHz

See Table 1

-40°C to 85°C

3.3V

±5%

1.5mA Maximum

2.0mA Maximum

3.0mA Maximum

See Table 1

±0.3ppm Maximum

±0.2ppm Maximum

±1ppm / year Maximum

0.7V

p-p

Minimum

10kOhms//10pF

±3ppm Minimum

1.65V

±1.35V

, Positive Transfer Characteristic

±7ppm Minimum, ±20ppm Maximum

10kOhms Typical

10kHz Minimum

-70dBc/Hz

-100dBc/Hz

-130dBc/Hz

-140dBc/Hz

-145dBc/Hz

VOLTAGE

CLASS

REV

DATE

Frequency Stability

9.600MHz to 20.000MHz

20.001MHz to 29.999MHz

30.000MHz to 44.736MHz

vs. Operating Temperature Range

vs. Input Voltage (V

±5%)

vs. Load (±2kΩ // ±2pF)

Aging (at 25°C)

Output Voltage

Load Drive Capability

Internal Trim (Top of Can)

Control Voltage (External)

Frequency Deviation

Input Impedance

Modulation Bandwidth

Typical Phase Noise

Referenced to F

at V

= 1.65V

; V

= 3.3V

Measured at -3dB, V

= 3.3V

at 10Hz Offset

at 100Hz Offset

at 1kHz Offset

at 10kHz Offset

at 100kHz Offset

SERIES

PACKAGE

MANUFACTURER

ES52F3D30N-32.768M Related Products

	ES52F3D30N-32.768M	ES52F3B50N-32.768M	ES52F3B30N-32.768M	ES52F3D50N-32.768M	ES52F3A50N-32.768M	ES52F3C50N-32.768M	ES52F3A15N-32.768M
Description	TCXO, CLIPPED SINE OUTPUT, 32.768 MHz	TCXO, CLIPPED SINE OUTPUT, 32.768 MHz	TCXO, CLIPPED SINE OUTPUT, 32.768 MHz	TCXO, CLIPPED SINE OUTPUT, 32.768 MHz	TCXO, CLIPPED SINE OUTPUT, 32.768 MHz	TCXO, CLIPPED SINE OUTPUT, 32.768 MHz	TCXO, CLIPPED SINE OUTPUT, 32.768 MHz
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Frequency Adjustment - Mechanical	YES	YES	YES	YES	YES	YES	YES
frequency stability	3%	5%	3%	5%	5%	5%	1.5%
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Manufacturer's serial number	ES52F3	ES52F3	ES52F3	ES52F3	ES52F3	ES52F3	ES52F3
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	32.768 MHz	32.768 MHz	32.768 MHz	32.768 MHz	32.768 MHz	32.768 MHz	32.768 MHz
Maximum operating temperature	75 °C	70 °C	70 °C	75 °C	50 °C	70 °C	50 °C
Oscillator type	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE
Output impedance	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω
Output level	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V
physical size	18.3mm x 11.7mm x 4.8mm	18.3mm x 11.7mm x 4.8mm	18.3mm x 11.7mm x 4.8mm	18.3mm x 11.7mm x 4.8mm	18.3mm x 11.7mm x 4.8mm	18.3mm x 11.7mm x 4.8mm	18.3mm x 11.7mm x 4.8mm
Maximum supply voltage	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	ECLIPTEK	ECLIPTEK	-	-	ECLIPTEK	ECLIPTEK	ECLIPTEK
