EV31C3A3A1-38.880MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EV31C3A3A1-38.880MTR

EV31C3A3A1-38.880MTR: DescriptionVCXO, CLOCK, 38.88 MHz, HCMOS/TTL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size235KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EV31C3A3A1-38.880MTR Overview

VCXO, CLOCK, 38.88 MHz, HCMOS/TTL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN

EV31C3A3A1-38.880MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	50%
JESD-609 code	e4
linearity	20%
Manufacturer's serial number	EV31C3
Installation features	SURFACE MOUNT
Nominal operating frequency	38.88 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	10 TTL, 30 pF
physical size	7.0mm x 5.0mm x 1.65mm
longest rise time	5 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Gold (Ni/Au)

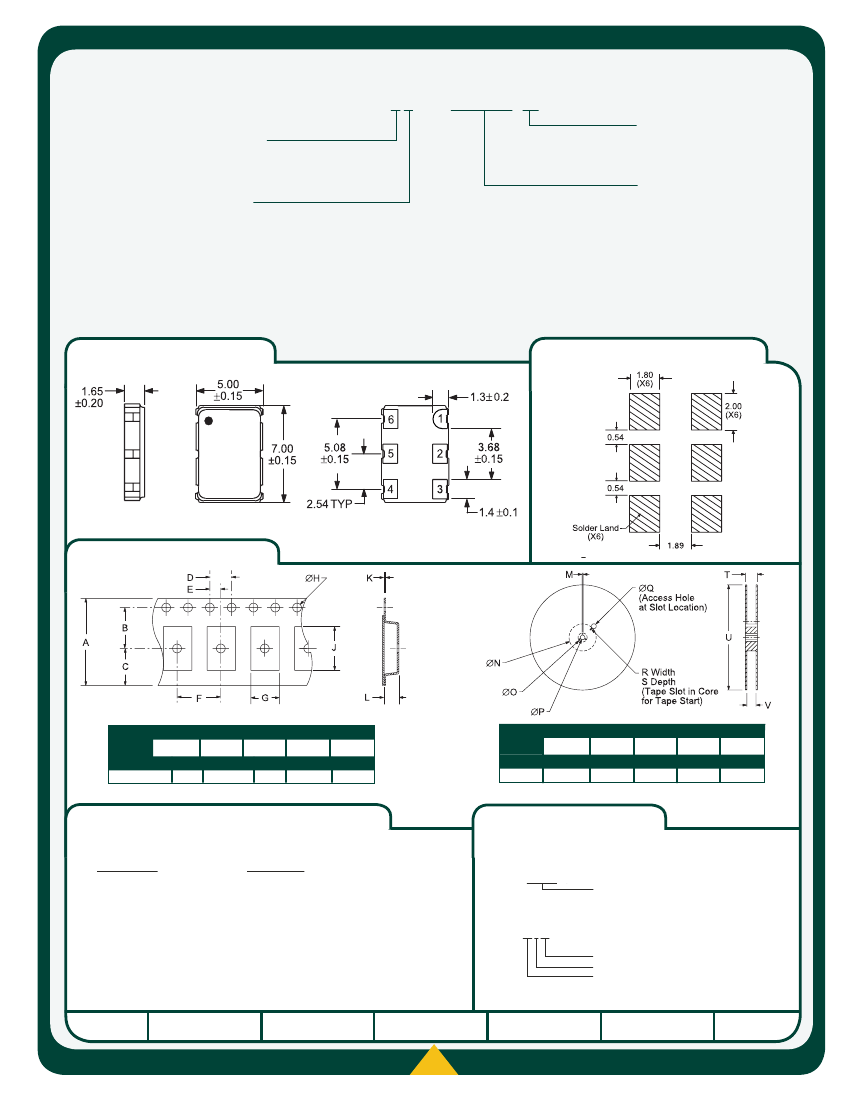

Preview

Download Datasheet

View All

EV31C3

Series

• RoHS Compliant (Pb-Free)

• Voltage Controlled Crystal Oscillator (VCXO)

• 5.0V Supply Voltage

• HCMOS output with Tri-State function

• Ceramic 6-pad SMD package

• APR Performance to ±100ppm

• Commercial and Industrial Temperature Range

ELECTRICAL SPECIFICATIONS

EV31C3

1.65

7.0

5.0

OSCILLATOR

1.544MHz, 2.000MHz, 2.048MHz, 3.088MHz, 3.580MHz, 3.686MHz, 4.000MHz, 4.032MHz, 4.096MHz, 4.434MHz,

5.000MHz, 6.144MHz, 6.176MHz, 6.312MHz, 6.400MHz, 8.000MHz, 8.192MHz, 8.448MHz, 10.000MHz,

12.000MHz, 12.288MHz, 12.352MHz, 12.960MHz, 13.000MHz, 13.500MHz, 14.318MHz, 15.360MHz, 15.440MHz,

16.000MHz, 16.384MHz, 16.660MHz, 17.664MHz, 18.432MHz, 19.200MHz, 19.440MHz, 20.000MHz, 20.480MHz,

24.000MHz, 24.576MHz, 24.704MHz, 25.920MHz, 26.000MHz, 27.000MHz, 28.636MHz, 30.000MHz, 30.720MHz,

32.000MHz, 32.768MHz, 34.368MHz, 35.328MHz, 36.864MHz, 38.880MHz, 40.000MHz, 40.960MHz, 44.736MHz,

50.000MHz, 51.840MHz, 52.000MHz, 62.208MHz, 65.536MHz, 74.250MHz, 77.760MHz

Operating Temperature Range (OTR)

0°C to 70°C or -40°C to 85°C

Storage Temperature Range (STR)

-55°C to 125°C

Supply Voltage (V

)

5.0V

±10%

< 27.000MHz

Input Current (I

)

25mA Maximum

> 27.000MHz

35mA Maximum

Inclusive of All Conditions: Calibration Tolerance at 25°C,

Frequency Tolerance/Stability

±50ppm Maximum

Frequency Stability over the Operating Temperature Range, Supply

Voltage Change, Output Load Change, Shock, and Vibration

= -4mA

Output Voltage Logic High (V

)

90% of V

Minimum

= +4mA

Output Voltage Logic Low (V

)

10% of V

Maximum

20% to 80% of Waveform w/HCMOS Load or w/TTL Load

Rise Time / Fall Time (T

)

5 nSeconds Maximum

at 50% of Waveform

Duty Cycle (SYM)

50 ±5(%) Typical, 50 ±10(%) Max.

Load Drive Capability (C

LOAD

)

10TTL Load or 30pF HCMOS Load Max.

Aging (at 25°C)

±2ppm/1st year Typical, ±10ppm /10 years Max.

Start Up Time (T

)

10 mSeconds Maximum

: No Connection

Tri-State Input Voltage

Enables Output

: >0.9V

Enables Output

: <0.1V

Disables Output: High Impedance

=12kHz to 20MHz

RMS Phase Jitter

1pSec Maximum

Inclusive of All Conditions: Calibration Tolerance at 25°C,

Absolute Pull Range (APR)

±50ppm Minimum

Frequency Stability over the Operating Temperature Range, Supply ±80ppm Minimum < 51.840MHz only

Voltage Change, Output Load Change, Shock, Vibration, and Aging ±100ppm Minimum < 36.000MHz only

over Control Voltage (V

)

Linearity

10% Typical, 20% Maximum

Control Voltage (V

): Test Conditions for APR

0.5V

to 4.5V

Control Voltage Range (V

)

0.0V

to V

Transfer Function

Positive Transfer Characteristic

Input Impedance (Z

)

50kOhms Minimum

Input Leakage Current

10µA Maximum

-3dB, V

= 2.5V

Modulation Bandwidth (MBW)

10kHz Minimum

At offset of 10Hz

Typical Phase Noise (Fo = 27.000MHz)

-70dBc/Hz

At offset of 100Hz

-100dBc/Hz

At offset of 1kHz

-130dBc/Hz

At offset of 10kHz

-147dBc/Hz

At offset of 100kHz

-152dBc/Hz

Frequency Range (F

)

MANUFACTURER
