598-8821-307F

Description
T-3/4 TRIPLE COLOR LED, RED ORANGE/GREEN/BLUE, 2 mm
CategoryLED optoelectronic/LED    photoelectric
File Size1MB，2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric Compare View All

598-8821-307F Online Shopping

Suppliers Part Number Price MOQ In stock
598-8821-307F - - View Buy Now

598-8821-307F Overview

T-3/4 TRIPLE COLOR LED, RED ORANGE/GREEN/BLUE, 2 mm

598-8821-307F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instruction3.20 X 1.50 MM, 1 MM HEIGHT, ROHS COMPLIANT PACKAGE-4
Reach Compliance Codecompli
colorRED ORANGE/GREEN/BLUE
color@wavelengthBlue/Green/Or-Red
ConfigurationCOMMON ANODE, 3 ELEMENTS
Maximum forward current0.02 A
Maximum forward voltage3.5 V
JESD-609 codee4
Lens typeWATER CLEAR
Nominal luminous intensity120.0/220.0/90.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals4
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Optoelectronic device typesTRIPLE COLOR LED
total height1.48 mm
method of packingTAPE AND REEL 7\"
Maximum reverse voltage5 V
shapeROUND
size2 mm
surface mountYES
T codeT-3/4
Terminal surfaceNickel/Gold (Ni/Au)
perspective160 deg
Base Number Matches1

Preview

Download Datasheet
FEATURES / BENEFITS
Compatible with automatic placement equipment
Micro LED
®
SMD LED
“598 SERIES” 1208 PACKAGE
(3.2mm X 1.5mm X 1.0mm) Tri-Color Right Angle
RoHS compliant
Packaged in 8mm tape, 7” reel and 20 per strip
Meets EIA-481-1 pkg. std.

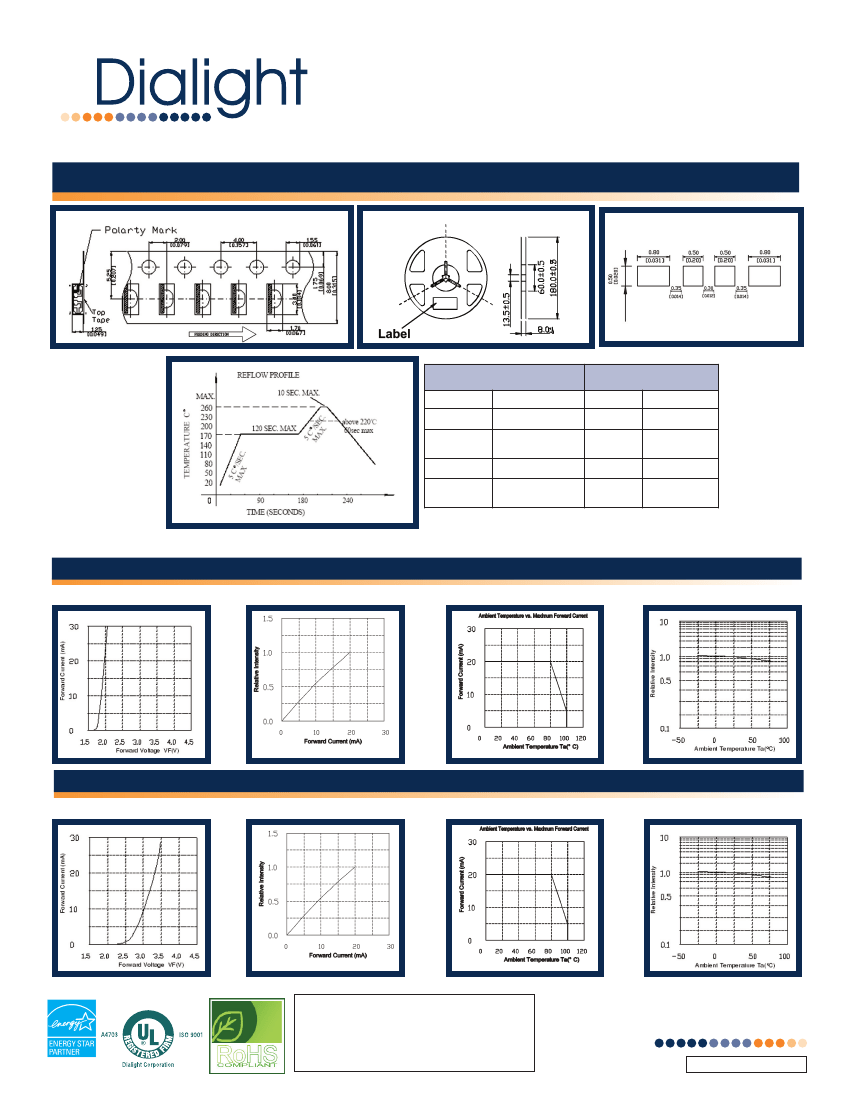

Package Outline Drawing:
ORDERING INFORMATION
2
Notes 1. All dimensions are in mm [inches];
2. Tolerances are ±0.1mm [0.004inch] unless noted.
20 pieces on tape
7” reel 3000pcs / reel
7
PART NUMBERS
Dialight P/N
EMITTED COLOR
MATERIAL
LENS COLOR
LUMINOUS
INTENSITY
If = 20 ma
MIN TYP MAX
40
60
80
90
120
220
60
90
140
90
120
150
150 220
300
60
90
140
90
120
150
150 220
300
60
90
140
70
120
150
150 220
300
60
90
140
90
110
150
150 220
300
60
90
140
DOMINANT
FORWARD
WAVELENGTH
VOLTAGE
If = 20 ma
If = 20 ma
MIN TYP MAX MIN TYP MAX
630 635 645 1.8 2.2
2.4
520 525 530 2.8 3.2
3.4
465 470 475 2.8 3.2
3.4
620 625 630 1.8
2
2.4
520 525 530
3
3.2
3.5
465 470 475
3
3.2
3.5
620 625 630 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
600 605 610 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
587 590 595 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
VIEWING
ANGLE
° DEGREES
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
PINOUT
598-8810-307F
598-8820-307F
598-8821-307F
598-8830-307F
598-8840-307F
RED
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
ORANGE
GREEN
BLUE
YELLOW
GREEN
BLUE
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
SEE EXAMPLE
B
G
RO
G
RO
B
G
O
B
G
Y
B
ABSOLUTE RATINGS
(@ Ta = 25ºC)
Power
Dissipation
(mW)
598-8810-307F
48
68
68
48
70
70
48
70
70
48
70
70
48
70
70
Forward
Current
(mA)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Reverse
Voltage
(V)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Operating
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Storage
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Peak Pulse
Forward
Current
(mA)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Electrostatic
Discharge
(HBM)
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
Dialight P/N
598-8820-307F
598-8821-307F
598-8830-307F
598-8840-307F
PRELIMINARY
Dialight reserves the right to make changes at any
time in order to supply the best product possible.
Contact us directly for the latest information.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5981208TRI_A
