1 Overview
This module family is a 6 MHz (2.8 V version – 3 MHz), 600 mA step-down DC to DC converter, that delivers a
fixed output from an input voltage supply of 2.3 V to 5.5 V. Using a proprietary architecture with synchronous
rectification, the P80xx is capable of delivering a peak efficiency up to 92%, while maintaining efficiency over
80% at load currents as low as 1 mA.
The Pulse Width Modulation (PWM) modulator can be synchronized to an external frequency source. At
moderate and light loads, Pulse Frequency Modulation (PFM) is used to operate the device in Power-Save
Mode with a typical quiescent current of 24 µA. Even with such a low quiescent current, the part exhibits
excellent transient response during large load swings.
At higher loads, the system automatically switches to fixed-frequency control, operating at 6 MHz. In Shutdown
Mode, the supply current drops below 1 µA, reducing power consumption. For applications that require
minimum ripple or fixed frequency, PFM Mode can be disabled using the MODE pin.
1.1
Features
600
mA
output current capability
24 µA typical quiescent current
6 MHz fixed-frequency operation (2.8 V variant – 3 MHz)
Best-in-class load transient response
Best-in-class efficiency
2.3 V to 5.5 V input voltage range
1.1 V, 1.2 V, 1.26 V, 1.3 V, 1.8 V, 1.86 V, 1.9 V, 2.8 V fixed output voltages
Low ripple light-load PFM mode
Forced PWM and external clock synchronization
Internal soft-start
Input under-voltage lockout (UVLO)
Thermal shutdown and overload protection
RoHS-compatible
Moisture sensitivity level 2
1.2
Ordering information
Type
P8015
P8016
P8012
P8017
P8018
P8013
P8019
P8020
Ordering Code
B30000P8015Y908
B30000P8016Y908
B30000P8012Y908
B30000P8017Y908
B30000P8018Y908
B30000P8013Y908
B30000P8019Y908
B30000P8020Y908
Top side
Marking
E
G
A
F
H
B
D
C
600 mA
−40 … +85 °C
Tape & Reel
3K pcs
Max. Output Temperature
Current
Range
Packing
Output
Voltage
1.10 V
1.20 V
1.26 V
1.30 V
1.80 V
1.86 V
1.90 V
2.80 V
SAW ES
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 21
2014-10-22
SAW ES – step-down switching voltage regulator
Micro DC-DC converter modules
B30000P80xxY908
P8012 … P8020
1.3
Module appearance

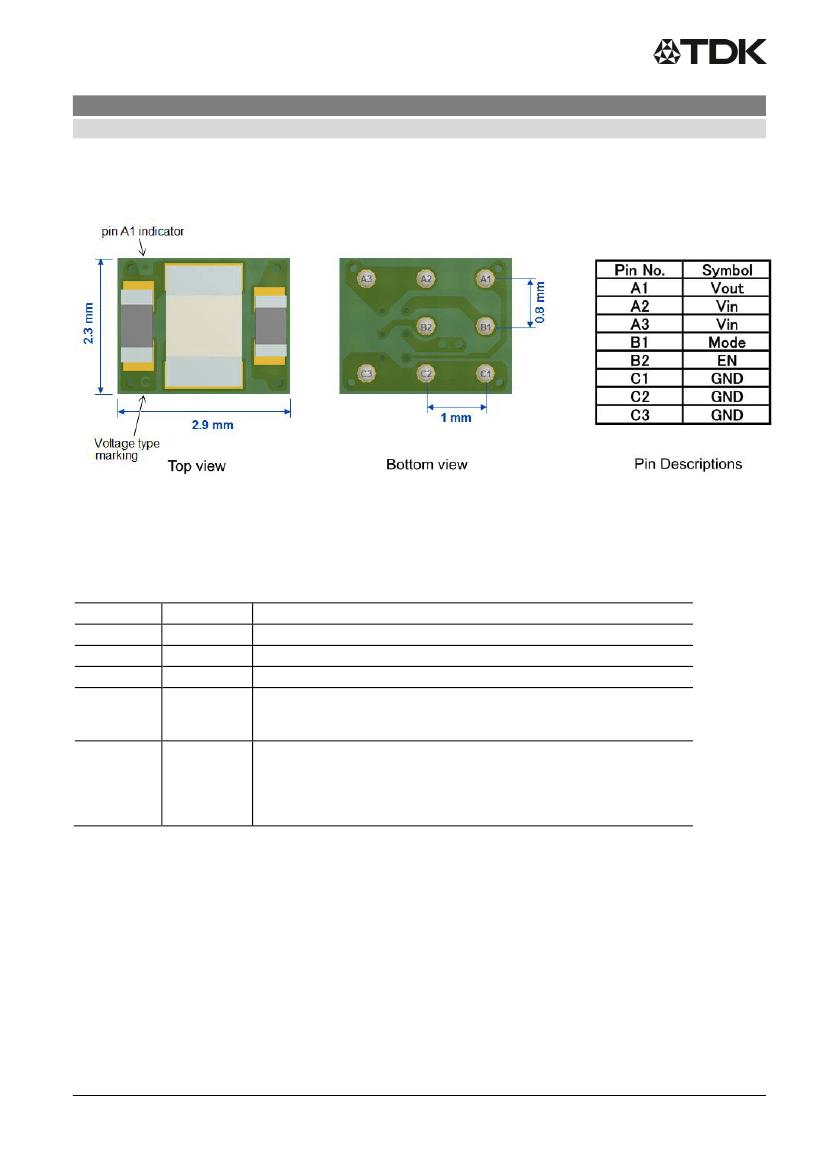

Figure 1-1 Module appearance and pin assignments
1.4
Pin descriptions
Pin Name
Vin
GND
Vout
EN
Pin Function
Input voltage.
Connect to input power source.
Ground.
All signals are referenced to this pin.
Output voltage.
Regulated voltage output.
Enable.
The device is in Shutdown Mode when voltage to this pin is
< 0.4 V and enabled when > 1.2 V. Do not leave this pin floating. Use
a logic voltage of 1.8 V to enable / disable the device.
MODE.
Logic 1 on this pin forces the IC to stay in PWM Mode. A
logic 0 allows the IC to automatically switch to PFM during light
loads. The regulator also synchronizes its switching frequency to four
times the frequency provided on this pin. Do not leave this pin
floating.
Pin No
A2, A3
C1, C2, C3
A1
B2
B1
MODE
Table 1-1 Pins description
SAW ES
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 21
2014-10-22
SAW ES – step-down switching voltage regulator
Micro DC-DC converter modules
B30000P80xxY908
P8012 … P8020
2 Circuit information
2.1
Typical application

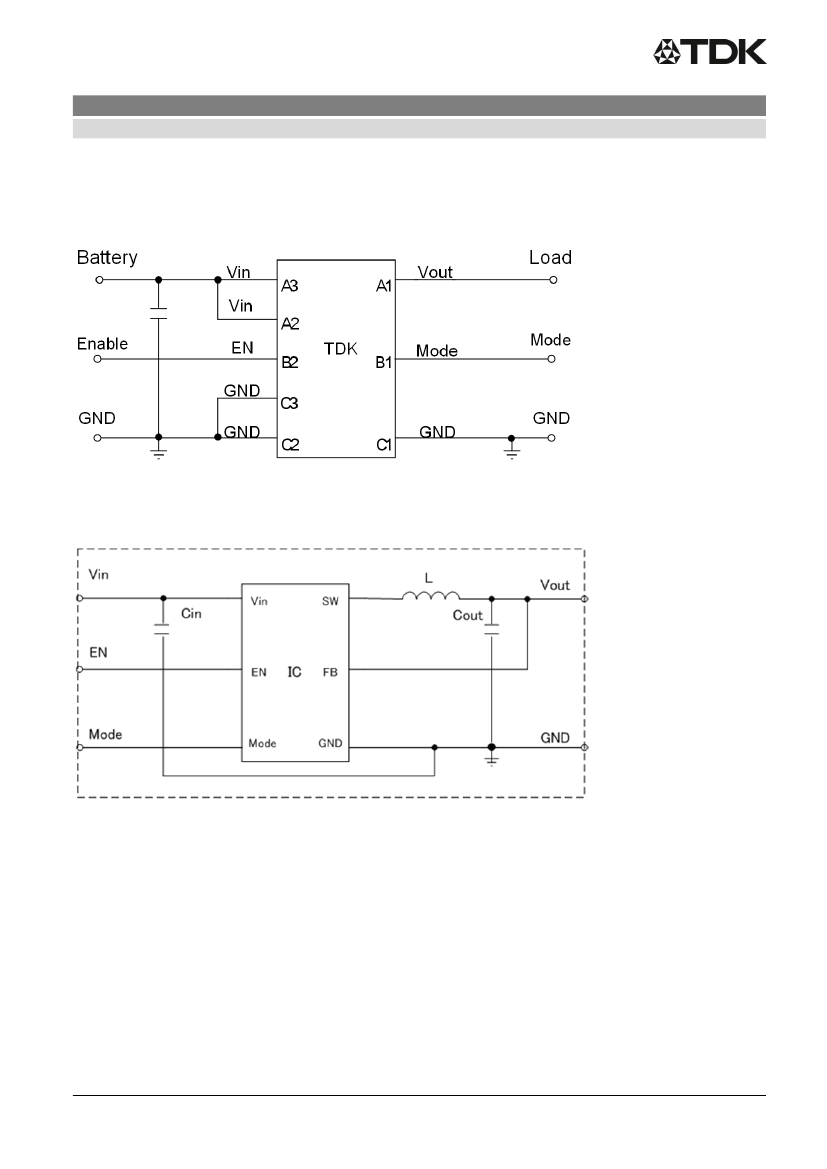

Figure 2-1 Typical application
2.2
Block diagram
Figure 2-2 Block diagram
SAW ES
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 21
2014-10-22
SAW ES – step-down switching voltage regulator
Micro DC-DC converter modules
B30000P80xxY908
P8012 … P8020
3 Absolute maximum ratings
Symbol
Vin
Ven
Vmode
ESD
Parameter
Input supply voltage
EN pin voltage
MODE pin voltage
HBM (JESD22-A114)
CDM (JESD22-C101)
Tj
Tstg
T
L
2
Min.
-0.3
-0.3
-0.3
2.0
1.5
-40
-40
Max.
7.0
Vin+0.3
Vin+0.3
2
2
Unit
V
V
V
kV
kV
Junction temperature
Storage temperature
Lead soldering temperature
+150
+120
+260
℃
℃
Table 3-1 Absolute maximum ratings
NOTE: Less than 7 V or V
IN
+0.3 V.
4 Recommended operating conditions & thermal properties
Symbol
Vcc
Iout
Ta
Tj
Parameter
Supply Voltage Range
Output Current
Operating Ambient Temperature
Operating Junction Temperature
−40
−40
Min.
2.3
Typ.
Max.
5.5
600
+85
+125
Unit
V
mA
Recommended operating conditions
℃
℃
Table 4-1 Recommended operating conditions & thermal properties
SAW ES
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 21
2014-10-22
