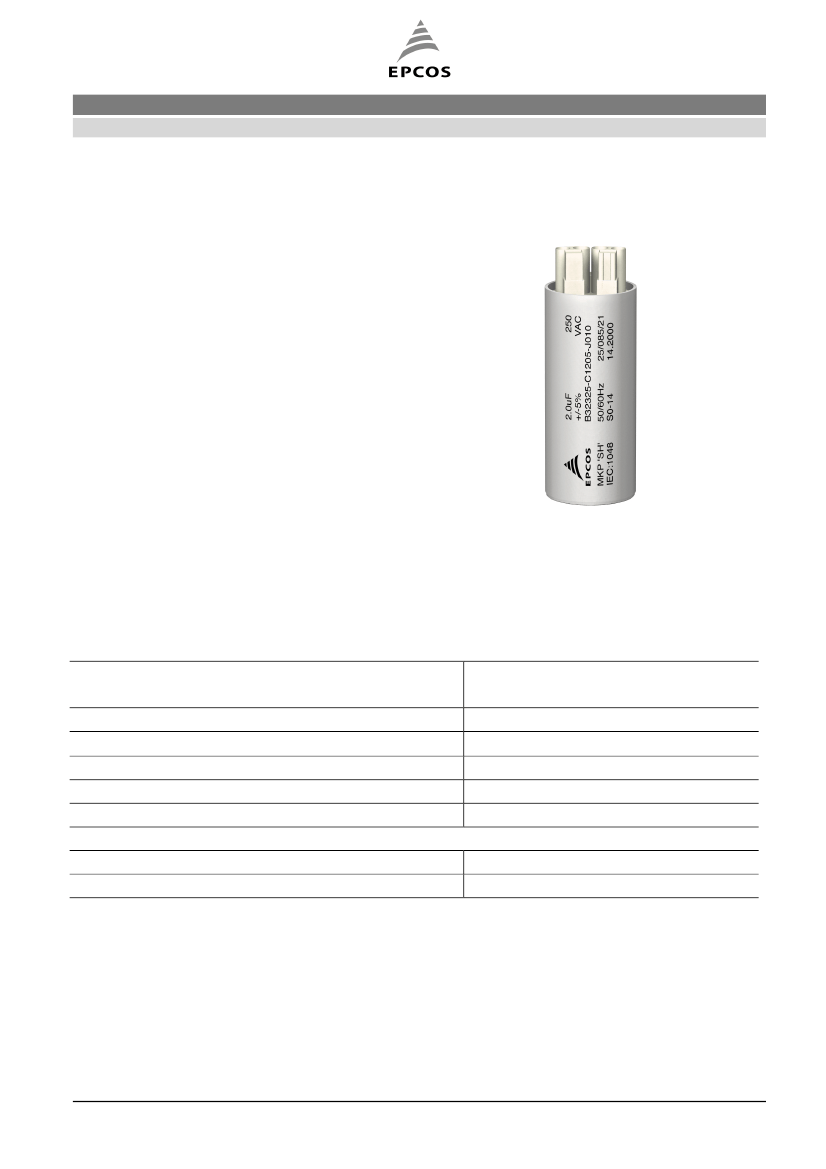

AC Film Capacitors
Lighting
B 32 325
Construction
Dielectric: polypropylene film
Plastic case
Polyurethane resin
Internal discharge resistor
Features
Self-healing properties
Low dissipation factor
High insulation resistance
Typical applications
For general sine wave applications,
mainly as series and parallel connection
lighting capacitor
Terminals
Push-in terminals
Mounting parts
Metal stud (max. torque = 5 Nm)
Plastic stud (max. torque = 3 Nm)
Technical data and specifications
Standard
Rated capacitance
C
N
Tolerance
Rated voltage
U
N
Rated frequency
f
N
Life expectancy
Maximum ratings
Maximum permissible voltage
U
max
Maximum permissible current
I
max
1,1 x U
N
(U
N
: rated voltage)
1,3 x I
N
(I
N
: rated current)
IEC / EN 61048 / 61049
(except destruction test)
2 .. 25 µF
±
5% ,
±10%
250 Vac
50.. 60 Hz
10 years
Issue No. 2
07/01
Page 1 of 4
AC Film Capacitors
Lighting
B 32 325
Technical data (cont`d)
Test data
AC test voltage terminal to terminal
U
TT
Insulation voltage terminals to case
Insulation resistance
R
is
or time
τ
constant at 20 °C
Rel. Humidity
≤
65 °C (minimum value)
Dissipation factor tanδ at 20 °C
Maximum rate of voltage rise du/dt
max
Climatic data
Climatic category
Lower category
T
min
Upper category
T
max
Damp heat test
t
test
Permitted capacitance
∆C/C
25/085/21
in accordance with IEC 60068-1
-25 °C
+85 °C
21 days
≤
3%
3000 s
≤
1,0 x 10
10 V/µs
-3
2.0 x U
N
, 60s
2000 Vac
(120 Hz)
Note
:
1) It should be noted that presence of harmonics produces over voltage & over current on capacitors. Resonance may
cause serious damage to installation if a siginificant level of total harmonic distortion level exists for voltage or current.
In such cases, series reactors must be considered.
2) Operating temperature class: In accordance with the reference standards, these temperatures are those measured on
the surface on the capacitor
Issue No. 2
07/01
Page 2 of 4
AC Film Capacitors
Lighting
B 32 325
Dimensional drawings
Issue No. 2
07/01
Page 3 of 4
AC Film Capacitors
Lighting
B 32 325
Ordering codes and packing units
U
N
Vac
250
C
N
µF
2
3
3.25
3.5
4
5
6
7
8
9
10
12
15
20
22
25
Max. dimensions
d
x
l
(mm)
25 x 58
25 x 58
25 x 58
25 x 58
25 x 58
25 x 58
30 x 60
30 x 60
30 x 60
30 x 60
35 x 60
35 x 60
35 x 70
35 x 70
40 x 70
40 x 70
B32325-A1205-+0$0 112
B32325-A1305-+0$0 112
B32325-A1325-+5$0 112
B32325-A1355-+0$0 112
B32325-A1405-+0$0 112
B32325-A1505-+0$0 112
B32325-A1605-+0$0 112
B32325-A1705-+0$0 112
B32325-A1805-+0$0 112
B32325-A1905-+0$0 112
B32325-A1106-+0$0 84
B32325-A1126-+0$0 84
B32325-A1156-+0$0 84
B32325-A1206-+0$0 84
B32325-A1226-+0$0 45
B32325-A1256-+0$0 45
Ordering code
Packing unit (pcs.)
Notes for ordering code:
+ Replace for capacitance tolerance
J -
±
5%
K-
±
10%
$ Replace for construction
1 - Plastic case FR (UL94 V-1)
3 - Plastic case FR (UL94 V-1) and M8 bolt
EPCOS AG 2000. All Rights Reserved. Reproduction, publication and dissemination of this data sheet, enclosures hereto
and the information contained therein without EPCOS' prior express consent is prohibited.
The information contained in this data sheet describes the type of component and shall not be considered as guaranteed
characteristics. Purchase orders are subject to the General Conditions for the Supply of Products and Services of the
Electrical and Electronics Industry recommended by the ZVEI (German Electrical and Electronic Manufacturers'
Association), unless otherwise agreed.
Issue No. 2
07/01
Page 4 of 4
