592-2727-002 Overview

3mm Bi-level Prism CBI Surface Mount LED BRIGHT SINGLE COLOR

592-2727-002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compli
color	YELLOW
color@wavelength	Yellow
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.05 A
Maximum forward voltage	2.4 V
JESD-609 code	e0
Nominal luminous intensity	33.6 mcd
Installation features	SURFACE MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	10.922 mm
method of packing	STRIP
Maximum reverse voltage	5 V
shape	ROUND
size	3 mm
surface mount	YES
T code	T-1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.794 mm
perspective	40 deg

Preview

Download Datasheet

View All

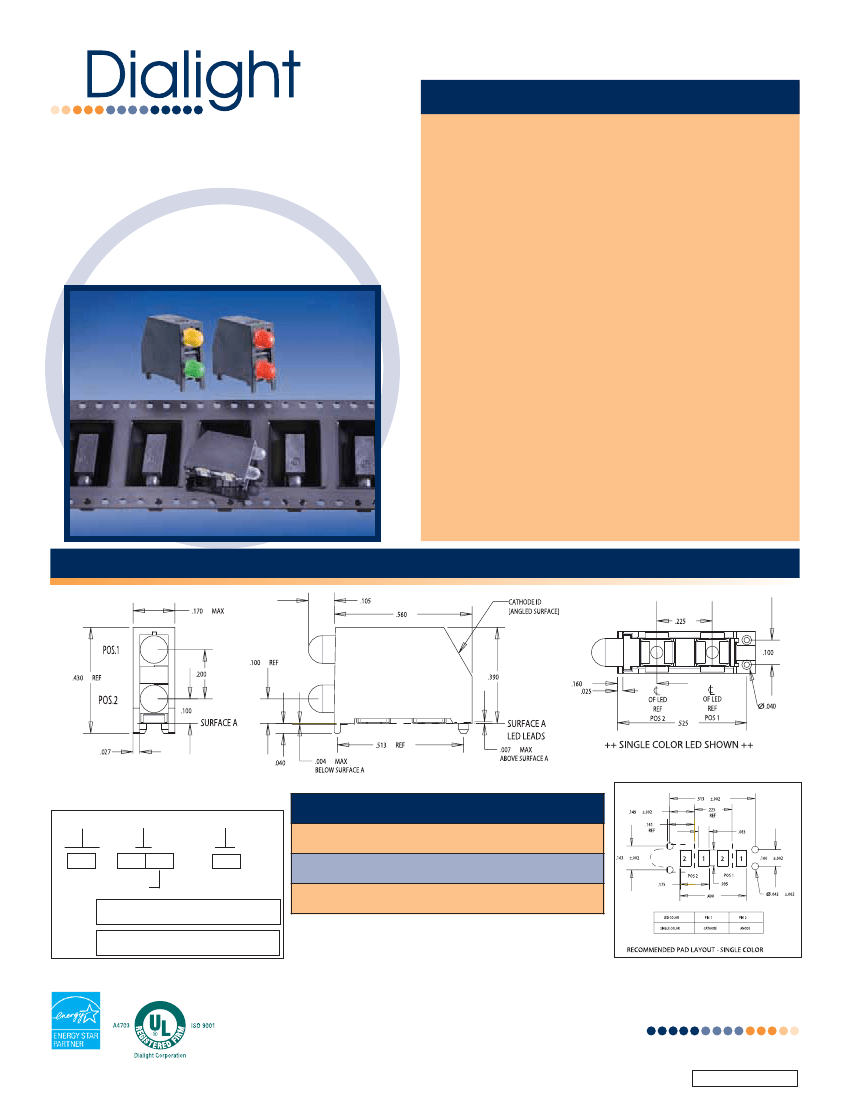

FEATURES / BENEFITS

Available as a Lead (Pb) Free product - RoHS Compliant.

592 SERIES

3mm Bi-level Prism

®

CBI

®

Surface Mount LED

BRIGHT SINGLE COLOR

Incorporates latest LED technology, specifically designed for

surface mounting.

Compatible with automatic placement equipment.

Compatible with surface mount reflow soldering processes.

Black housing enhances contrast ratio.

Housing material meet UL-94V-0 flammability ratings.

Patented Bi-level design provides increased indication

without increased space.

Illumination areas compatible with industry standard 3mm

through-hole Bi-level Circuit Board Indicators.

Packaged in moisture barrier bags for dry packaging per

IPC/JEDEC J-STD-033.

Helps to eliminate mixed technology pc board processing.

SPECIFICATIONS

PART NUMBER CODE*

SERIES

Position 1

Package option

PART NUMBER *

592-2121-0XX

COLOR COMBO

AlGaAs Red/AlGaAs Red

GREEN/GREEN

AllnGaP Yellow/AllnGaP Yellow

592

2X

Position 2

2X

0XX

592-2222-0XX

592-2727-0XX

Color = 21) AlGaAs Red,

22) Green

24) AllnGaP Yellow, 00) blank

Package Size Options

-002 = 10 piece strip -013 = 13” reel dia.

* Part Number with “F” suffix ending is a Lead (Pb) Free

Product - RoHS Compliant.

Note: Custom color combinations available upon request.

Check with factory for details.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDEF592D001_B
