ACLM-4852HC89-RC datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ACLM-4852HC89-RC

ACLM-4852HC89-RC: DescriptionLimiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C89; CategoryWireless rf/communication Radio frequency and microwave; File Size56KB，2 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ACLM-4852HC89-RC Overview

Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C89

ACLM-4852HC89-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aeroflex
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM
Adjustability	FIXED
structure	COAXIAL
Maximum input power (CW)	48 dBm
Maximum operating frequency	3100 MHz
Minimum operating frequency	2700 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	LIMITER
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

ACLM-4852

COAXIAL HIGH POWER LIMITER

Frequency Range (min)

Peak Input Power (max)

CW Input Power (max)

CW Flat Leakage (max)

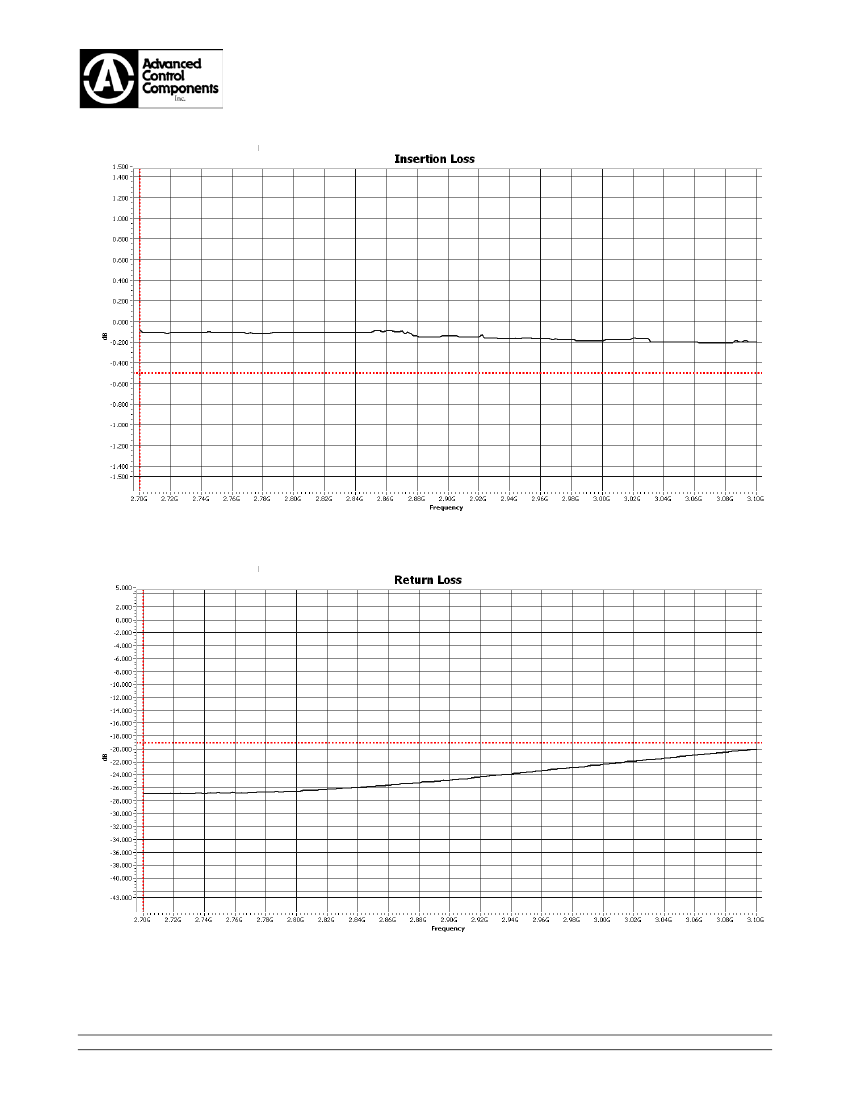

Insertion Loss (max)

VSWR (max)

2700 – 3100

1000

0.5

1.25:1

MHz

dBm

ratio

NOTES:

Model is rated for 60W CW and is also available in a 100W CW version. See part number ordering information.

Insertion loss is slightly higher for the high power version.

Power handling is linearly derated from full power at 25˚C to zero power at +150˚C.

This model requires DC blocks for proper operation

ENVIRONMENTAL SPECIFICATIONS:

MIL-E-5400, MIL-STD-202, MIL-E-16400

Operating Temp: -55°C to +125°C

Storage Temp: -65°C to +150°C

Humidity: MIL-STD-202F, M103, Cond B

Altitude: MIL-STD-202F, M105, Cond B

Thermal Shock: MIL-STD-202F, M107, Cond A

Temperature Cycle: MIL-STD-202F, M105C, Cond D

SCREENING:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65°C to +100°C, 10 cycles

OPTIONAL HIGH-REL SCREENING (Ref MIL-PRF-38534):

Stabilization Bake per MIL-STD-883, Method 1008

Temperature Cycle per MIL-STD-883, Method 1010

Constant Acceleration per MIL-STD-883, Method 2001

Burn-in per MIL-STD-883, Method 1015

External Visual per MIL-STD-883, Method 2009

STANDARD CASE STYLE C46

(Optional Case Styles – C24, C25, C88, C89)

PART NUMBER ORDERING INFORMATION:

•

Add desired case style suffix: “C46” (Ex: ACLM-4852C46)

Add “R” suffix: Reverse Connector Configuration (Ex: ACLM-4852C25R) (SMA Female Input/SMA Male Output)

Add “H” suffix: High power handling version: (Ex: ACLM-4852HC25R)

Add “-RC” suffix: RoHS-compliant (Ex: ACLM-4852HC25-RC)

0109

611 Industrial Way West, Eatontown, NJ 07724

tel: 732-460-0212 fax: 732-460-0214

sales@advanced-control.com

www.advanced-control.com

ACLM-4852HC89-RC Related Products

	ACLM-4852HC89-RC	ACLM-4852HC24-RC	ACLM-4852HC25R-RC	ACLM-4852HC46R-RC	ACLM-4852HC46-RC	ACLM-4852HC24R-RC	ACLM-4852HC25-RC	ACLM-4852HC88-RC	ACLM-4852HC88R-RC	ACLM-4852HC89R-RC
Description	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C89	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C24	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C25	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C46	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C46	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C24	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C25	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C88	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C88	Limiter, 2700MHz Min, 3100MHz Max, ROHS COMPLIANT, CASE C89
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=60DBM
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	48 dBm	48 dBm	48 dBm	48 dBm	48 dBm	48 dBm	48 dBm	48 dBm	48 dBm	48 dBm
Maximum operating frequency	3100 MHz	3100 MHz	3100 MHz	3100 MHz	3100 MHz	3100 MHz	3100 MHz	3100 MHz	3100 MHz	3100 MHz
Minimum operating frequency	2700 MHz	2700 MHz	2700 MHz	2700 MHz	2700 MHz	2700 MHz	2700 MHz	2700 MHz	2700 MHz	2700 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
