593-292623-002-F Overview

3mm Tri-level Prism CBI Surface Mount LED SINGLE COLOR

Preview

Download Datasheet

View All

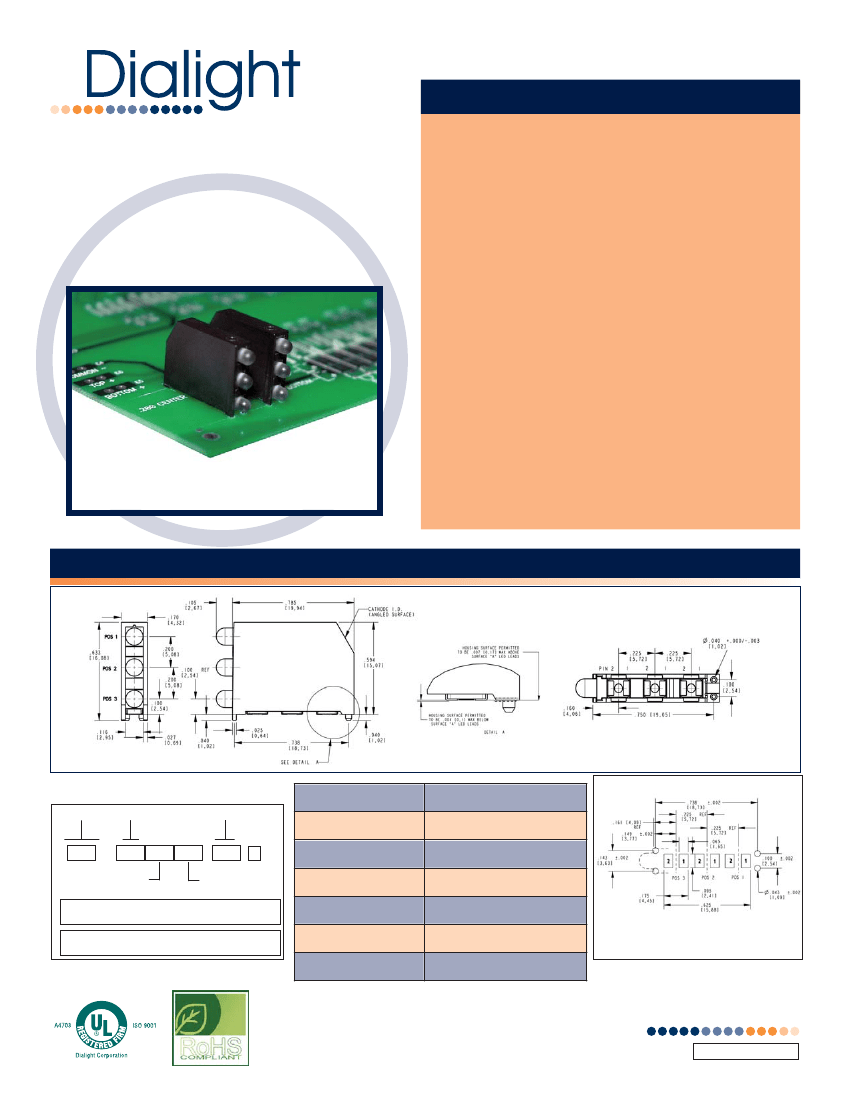

FEATURES / BENEFITS

RoHS Compliant

593 SERIES

3mm Tri-level Prism

CBI

Surface Mount LED

SINGLE COLOR

Incorporates latest LED technology, specifically designed

for surface mounting

Compatible with automatic placement equipment

Compatible with surface mount reflow soldering

processes

Black housing enhances contrast ratio

Housing material meet UL-94V-0 flammability ratings

Patented Tri-level design provides increased

indication without increased space

Illumination areas compatible with industry standard

3mm through-hole Tri-level Circuit Board Indicators

Packaged in moisture barrier bags for dry packaging

per IPC/JEDEC J-STD-033

Helps to eliminate mixed technology pc board

processing

SPECIFICATIONS

PART NUMBER CODE

SERIES

Position 1

Package option

PART NUMBER

593-202020-0XXF

COLOR COMBO

Red/Red/Red

Green/Green/Green

Yellow/Yellow/Yellow

Blue/Blue/Blue

Dimensions in Inches [mm]

593

Position 2

0XX

Position 3

593-232323-0XXF

593-242424-0XXF

593-262626-0XXF

593-282828-0XXF

593-292929-0XXF

Color = 20) red, 23) green, 24) yellow, 26) blue

28) white, 29) InGaN Green, 00) blank

Package Size Options

-002 = 5 piece strip -013 = 13” reel dia.

Note: Custom color combinations available upon

request. Check with factory for details.

White/White/White

InGaN Green/InGaN Green/

InGaN Green

Pin 1 = Cathode, Pin 2 = Anode

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEF593A001_B
