3EB3

Description
250 V, 50/60 HZ, SINGLE PHASE EMI FILTER
CategoryPassive components
File Size229KB,3 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet Parametric View All

3EB3 Online Shopping

Suppliers Part Number Price MOQ In stock
3EB3 - - View Buy Now

3EB3 Overview

250 V, 50/60 HZ, SINGLE PHASE EMI FILTER

3EB3 Parametric

Parameter NameAttribute value
working frequency50/60 HZ
stateACTIVE
Installation typePANEL MOUNT
DimensionsL46.2XB33.5XH19.8 (mm)/L1.819XB1.319XH0.78 (inch)
Manufacturer SeriesB
high capacity2250 V
filter typeSINGLE PHASE EMI FILTER
Rated current5 A
Rated voltage250 V
Maximum leakage current0.7000 mA
Maximum insertion loss frequency48 dB
Minimum insertion loss frequency7 dB
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
General Purpose RFI Filters for High Impedance Loads at Low Current
B Series
UL Recognized
CSA Certified
VDE Approved
VB6
1
RFI Power Line Filters
VB3 / EB3
VB1 / EB1
B Series
• Small size & low cost
• General purpose
• Wide variety of termination options
• Meets low leakage current requirements of VDE
portable equipment and non-patient medical
equipment
Specifications
Maximum leakage current each Line to Ground:
VB Models
EB Models
@ 120 VAC 60 Hz:
@250 VAC 50 Hz:
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
.4 mA
.7 mA
.21 mA
.36 mA
2250 VDC
1450 VDC
250 VAC
50/60 Hz
1 to 30A
Ordering Information
10 E B 1
Input / Output Style
1 – .250 [6.3] spade terminals
3 – Wire leads
6 – Threaded bolt
B Series
Leakage current designation
E – Low leakage
(<0.5 mA)
V – Standard
Current Rating
1, 2, 3, 5, 10, 20 or 30A
Operating Frequency:
Rated Current:
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
(85-Ta)/45
Available Part Numbers
1VB1
1VB3
2VB1
2VB3
3VB1
3VB3
5VB1
5VB3
10VB1
10VB3
10VB6
20VB1
20VB6
30VB6
1EB1
1EB3
2EB1
2EB3
3EB1
3EB3
5EB1
5EB3
10EB1
10EB3
20EB1

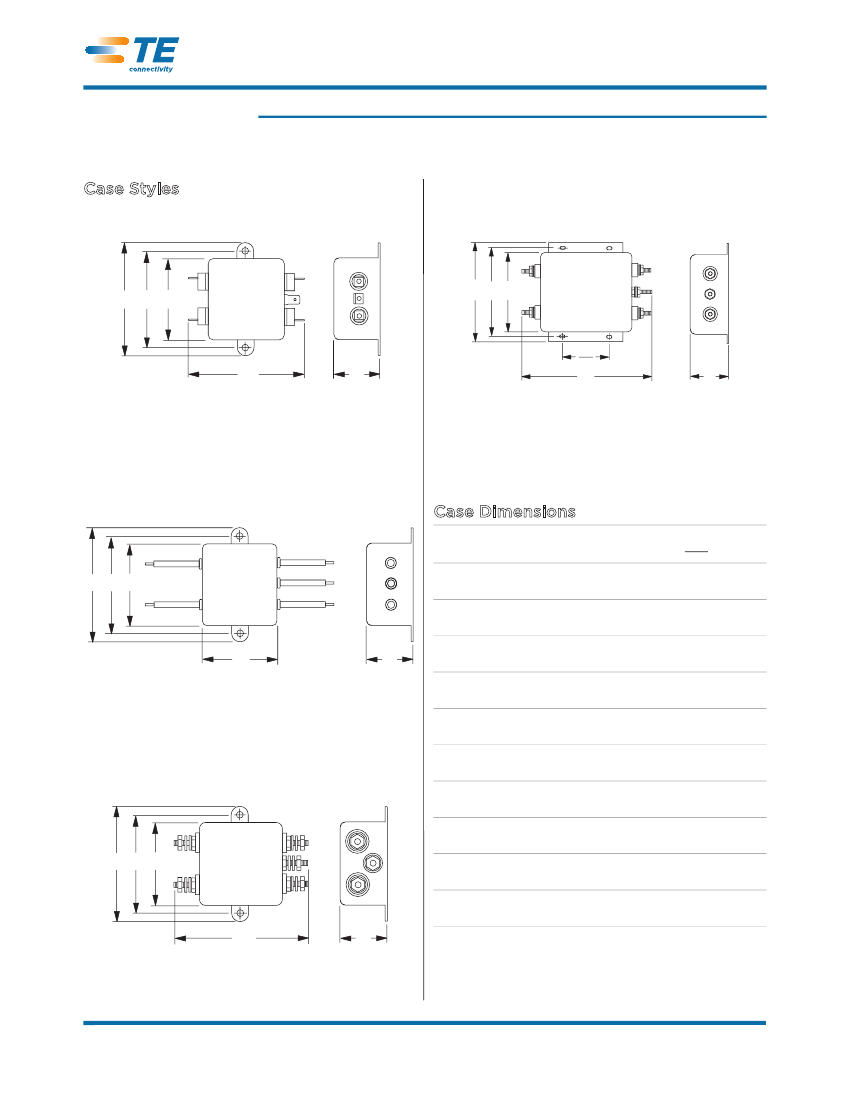

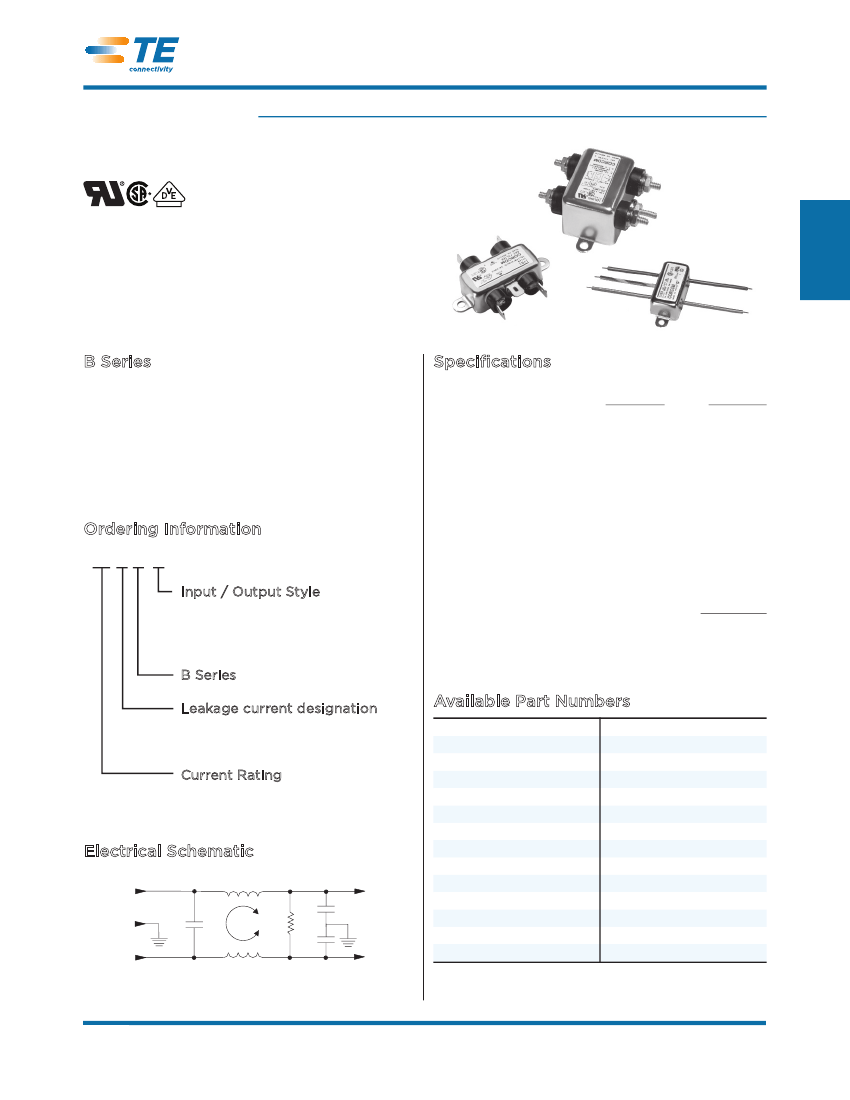

Electrical Schematic
LINE
LOAD
15
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
