MOC207VM_NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MOC207VM_NL

MOC207VM_NL: DescriptionTransistor Output Optocoupler, 1-Element, 2500V Isolation, LEAD FREE, PLASTIC, SOIC-8; CategoryLED optoelectronic/LED photoelectric; File Size267KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

MOC207VM_NL Overview

Transistor Output Optocoupler, 1-Element, 2500V Isolation, LEAD FREE, PLASTIC, SOIC-8

MOC207VM_NL Parametric

Parameter Name	Attribute value
Maker	Fairchild
package instruction	LEAD FREE, PLASTIC, SOIC-8
Reach Compliance Code	unknown
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	70 V
Configuration	SINGLE
Nominal current transfer ratio	100%
Maximum dark power	50 nA
Maximum forward current	0.06 A
Maximum insulation voltage	2500 V
JESD-609 code	e3
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	MATTE TIN

Preview

Download Datasheet

View All

MOC205M, MOC206M, MOC207M, MOC208M — Small Outline Optocouplers Transistor Output

April 2009

MOC205M, MOC206M, MOC207M, MOC208M

Small Outline Optocouplers Transistor Output

Features

■

U.L. recognized (File #E90700, Volume 2)

■

VDE recognized (File #136616)

■

Description

These devices consist of a gallium arsenide infrared

emitting diode optically coupled to a monolithic silicon

phototransistor detector, in a surface mountable, small

outline, plastic package. They are ideally suited for high

density applications, and eliminate the need for through-

the-board mounting.

(add option “V” for VDE approval, i.e, MOC205VM)

Closely matched current transfer ratios

Convenient plastic SOIC-8 surface mountable

package style

Minimum BV

CEO

of 70 Volts guaranteed

Standard SOIC-8 footprint, with 0.050" lead spacing

Compatible with dual wave, vapor phase and

IR reflow soldering

High input-output isolation of 2500 V

AC(rms)

guaranteed

Applications

■

Feedback control circuits

■

Interfacing and coupling systems of different

potentials and impedances

■

General purpose switching circuits

■

Monitor and detection circuits

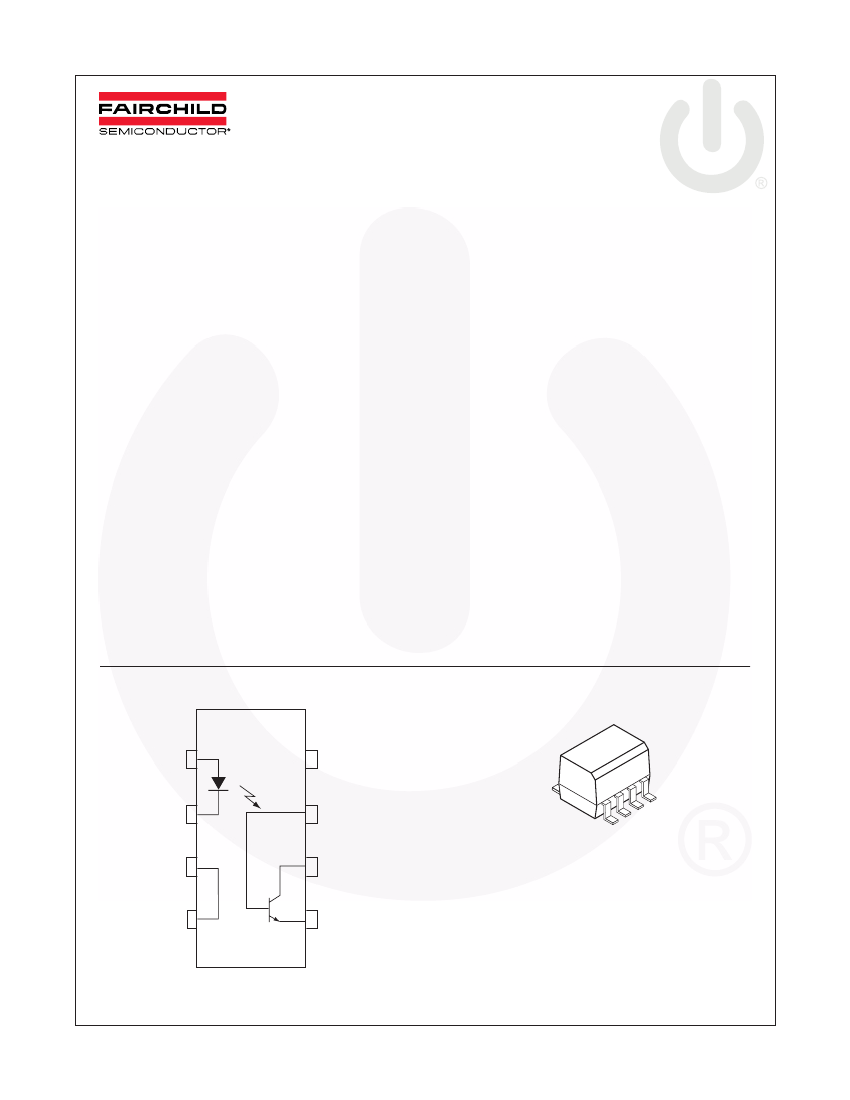

Schematic

ANODE

N/C

CATHODE

BASE

N/C

COLLECTOR

N/C

EMITTER

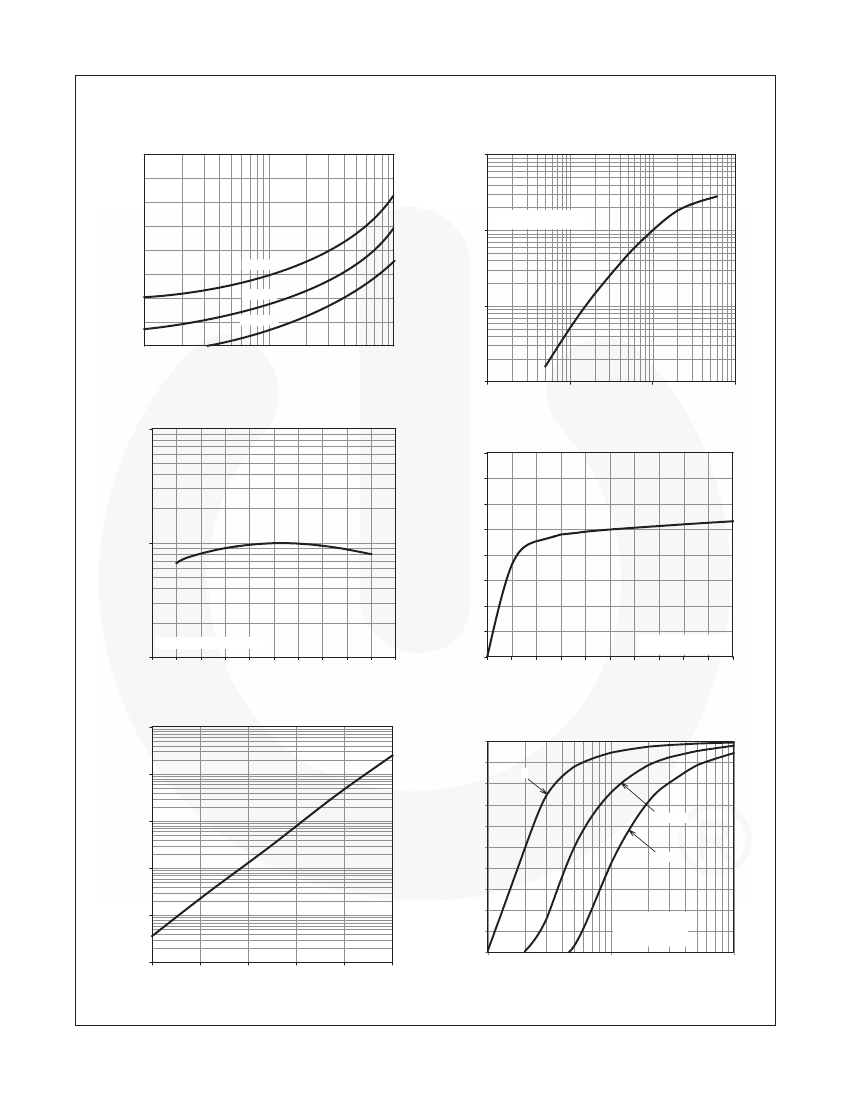

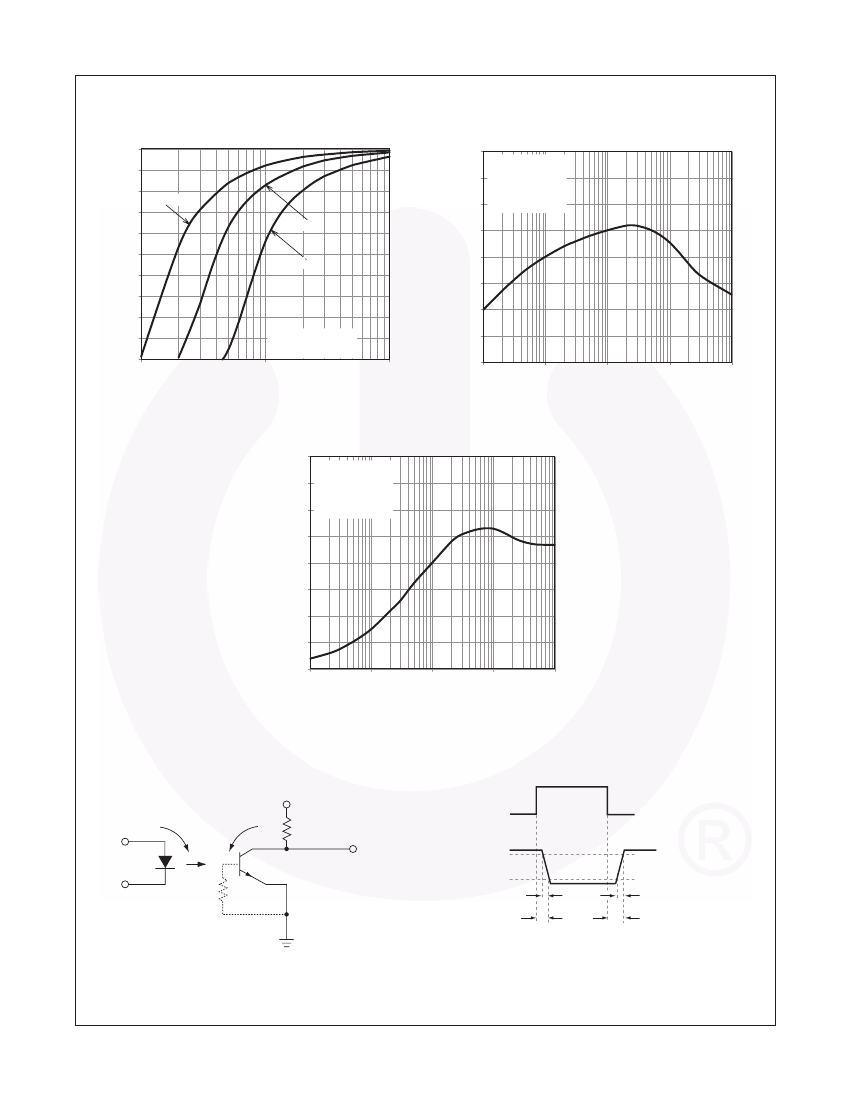

MOC205M, MOC206M, MOC207M, MOC208M Rev. 1.0.1

www.fairchildsemi.com

MOC207VM_NL Related Products

	MOC207VM_NL	MOC207R2
Description	Transistor Output Optocoupler, 1-Element, 2500V Isolation, LEAD FREE, PLASTIC, SOIC-8	Transistor Output Optocoupler, 1-Element, 3000V Isolation, PLASTIC, SOIC-8
package instruction	LEAD FREE, PLASTIC, SOIC-8	PLASTIC, SOIC-8
Reach Compliance Code	unknown	unknown
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	70 V	70 V
Configuration	SINGLE	SINGLE
Nominal current transfer ratio	100%	150%
Maximum dark power	50 nA	50 nA
Maximum forward current	0.06 A	0.06 A
Maximum insulation voltage	2500 V	3000 V
JESD-609 code	e3	e0
Number of components	1	1
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-40 °C	-45 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	MATTE TIN	Tin/Lead (Sn/Pb)
