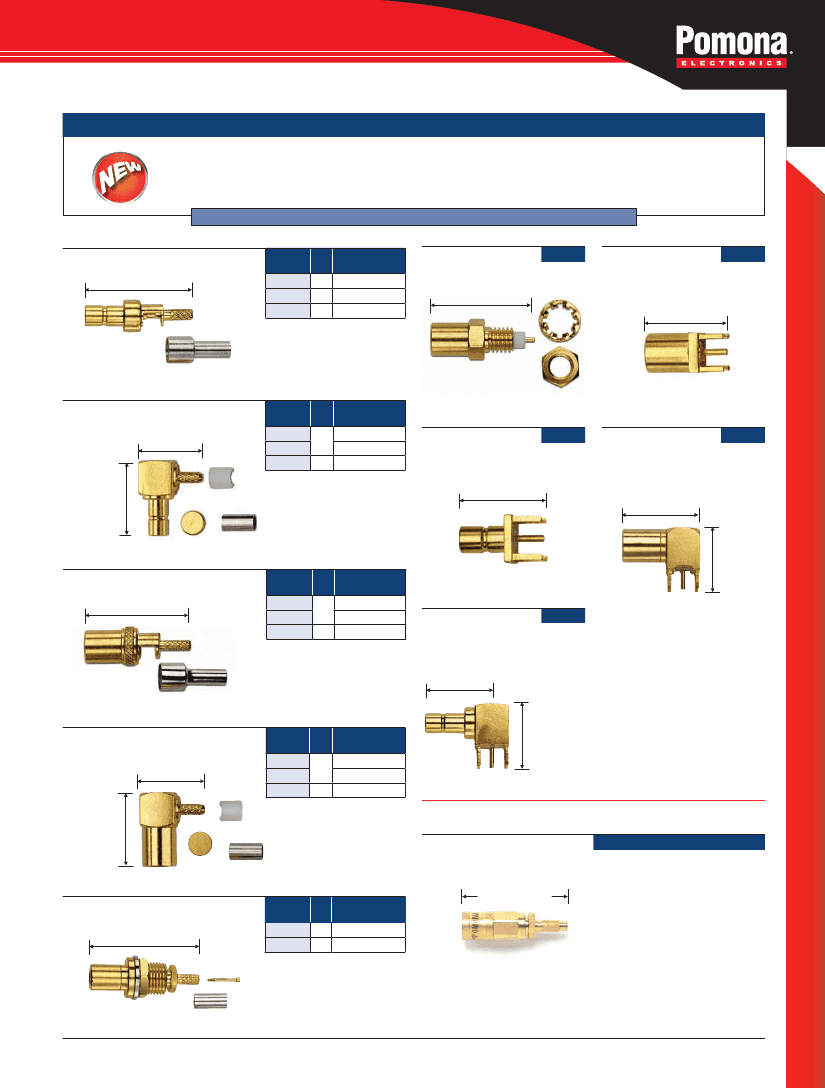

RF Coaxial Connectors, Adapters and Kits
RF SMB Connectors
Bandwidth:
3-4 GHz, depending upon connector. (see
data sheet on website)
Rating:
For CE compliance and personal safety, do not hold in hand when voltages exceed 33 Vrms/70 Vdc. Maximum voltage for hands
free use: 250 Vrms. Do not use on circuits where transient stresses can exceed the rated voltage.
Materials:
Body:
machined brass, gold-plated finish;
Center Contacts:
plug: gold-plated brass; jack: gold-plated beryllium copper.
7
Above specifications apply to the models on this page except 5375
Model#
72983
72984
72985
Ω
50
50
75
Cable Group
RG_/U
178, 196
174, 188, 316
179, 187
SMB Jack, Straight Crimp
0.73in (18.5mm)
SMB 50Ω Plug,
Panel Receptacle
0.78in (19.7mm)
72999
SMB 50Ω Plug,
Straight PCB
Receptacle
0.50in (12.8mm)
72995
SMB Jack, Right-Angle Crimp
0.46in
(11.8mm)
Model#
72991
72992
72993
Ω
50
75
Cable Group
RG_/U
178, 196
174, 188, 316
179, 187
SMB 50Ω Jack,
Straight PCB
Receptacle
0.45in (11.4mm)
72996
SMB 50Ω Plug,
Right-Angle
PCB Receptacle
0.57in
(14.6mm)
72997
0.55in
(14.0mm)
0.45in
(11.4mm)
SMB Plug, Straight Crimp
0.79in (20.0mm)
Model#
72980
72981
72982
Ω
50
75
Cable Group
RG_/U
178, 196
174, 188, 316
179, 196
SMB 50Ω Jack,
Right-Angle
PCB Receptacle
0.61in
(15.5mm)
72998
72980
SMB Plug, Right-Angle
Crimp
0.46in
(11.8mm)
Model#
72987
72988
72989
Ω
50
75
Cable Group
RG_/U
178, 196
174, 188, 316
179, 187
0.45in
(11.4mm)
0.54in
(13.6mm)
SMB Female Connector
Crimp Type
SMB Plug, Bulkhead
1.12in (28.5mm)
Model#
73000
73001
Ω
50
75
Cable Group
RG_/U
174, 188, 316
179, 187
1.22in (30.99mm)
Model# 5375
This SMB (Subminiature “B”) connector snap
together for quick assembly.
Fit Cable Types:
RG174, 179, 187, 188, 316
Rating:
Maximum voltage for
hands free use:
335 Vrms*, -85˚F to +329˚F (-65˚C to +165˚C).
Impedance:
50Ω.
Frequency Range:
DC to 4GHz.
SMB:
Shell:
tarnish resistant nickel- plated
brass;
Contact:
male: gold- plated brass;
female: gold-plated beryllium copper;
Dieletric:
PTFE.
*see rating message at start of section.
www.pomonaelectronics.com
