810A-4.000MHZ-HF0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 810A-4.000MHZ-HF0

810A-4.000MHZ-HF0: DescriptionHCMOS Output Clock Oscillator, 4MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size181KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

810A-4.000MHZ-HF0 Overview

HCMOS Output Clock Oscillator, 4MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

810A-4.000MHZ-HF0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	10%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	4 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.05mm
longest rise time	5 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

HCMOS 5x3.2mm 2.5V SMD Oscillator

Model: F547 / F549 SERIES

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 1/21/2009

http://www.foxonline.com/need_a_sample.htm

FEATuRES

•

2.5V Operation

HCMOS Output

Low Power Consumption

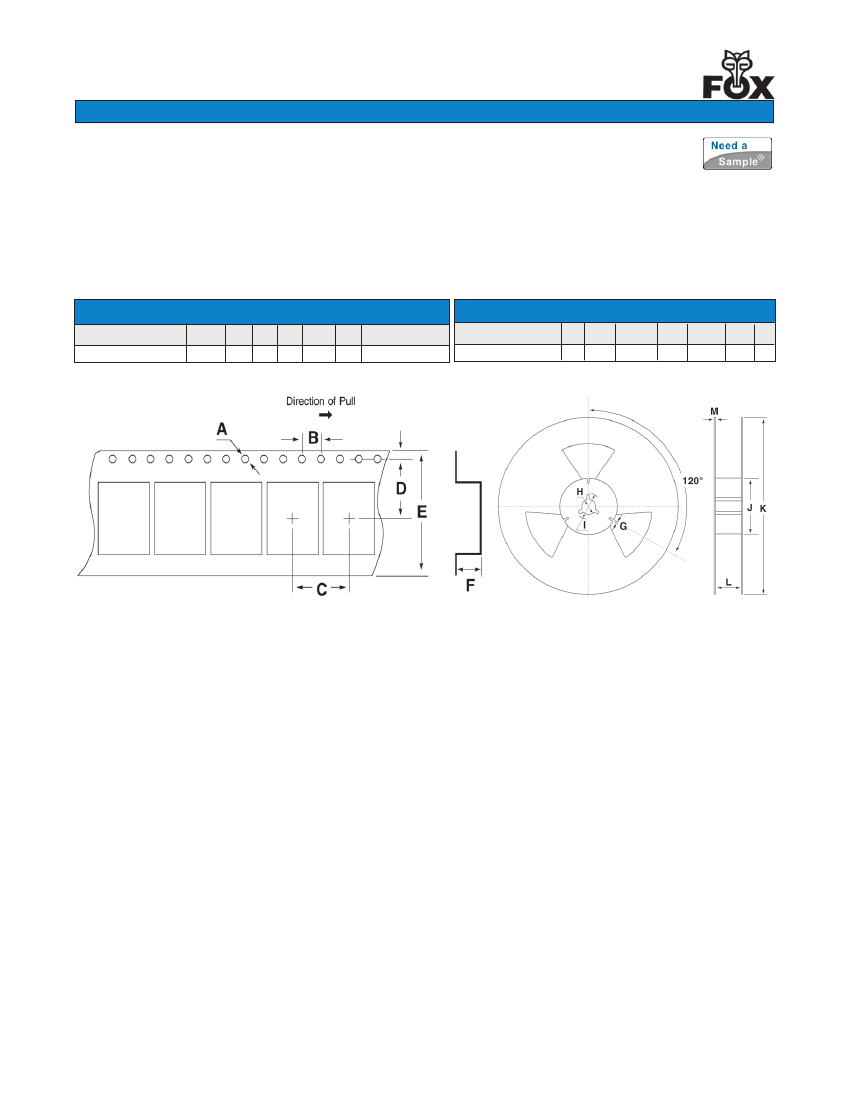

Tape and Reel

(1,000 pcs. STD)

• PART nuMbER SELECTIOn

Learn More - Internet Required

Part Number

809A-Frequency-xxxxx

809C-Frequency-xxxxx

810A-Frequency-xxxxx

810C-Frequency-xxxxx

813A-Frequency-xxxxx

813C-Frequency-xxxxx

Model

Number

F547F

F547R

F549F

F549R

F54S

F54SR

Frequency

Stability

±15PPM

±10PPM

±8PPM

Operating

Temperature (ºC)

-20 ~ +70

-40 ~ +85

-20 ~ +70

-40 ~ +85

-20 ~ +70

-40 ~ +85

Frequency

Range (MHz)

4.000 - 54.000

5 .0 ±0 .2

3.2 ±0 .2

1 .05±0.1

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

STG

)

Supply Voltage

)

Input Current

)

Output Symmetry (50% V

)

Rise Time (10% ~ 90% V

) (T

)

Fall Time (90% ~ 10% V

) (T

)

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

Phase Noise

Period Jitter

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

4.000 ~ 54.000 MHz

-40ºC ~ +85ºC

2.5V ± 5%

7mA

45% ~ 55%

5nS

10% V

90% V

Min

4mA Min

-4mA Min

15pF

10µA

10mS

100nS

10mS

-140Bc/Hz Typ. @ 10kHz offset

3pS RMS Typ.

260ºC / 10 Seconds

T est P o ints.

N o C o nn ect.

1.6

0.7

2 .6

1 .1

R ecom m ended

S olde r P a d Layout

1 .6

1 .0

2 .6

1.3

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, reflow,

and one year aging.

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Notes:

*A 0.01µF capacitor should be placed between V

(Pin 4) and GND (Pin 2) to

minimize power supply line noise.

*Dimensional drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary.

All specifications subject to change without notice.

All dimensions are in millimeters.

Pin Connection

#1 E/D

#2 GND

#3 Output

#4 V

• EnAbLE / DISAbLE FunCTIOn

OUTPUT (Pin 3)

Pin 1

ACTIVE

OPEN

ACTIVE

'1' Level V

≥

70% V

High Z

'0' Level V

≤

30% V

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
