833D-54.000MHZ-FE0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 833D-54.000MHZ-FE0

833D-54.000MHZ-FE0: DescriptionHCMOS Output Clock Oscillator, 54MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size478KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

833D-54.000MHZ-FE0 Overview

HCMOS Output Clock Oscillator, 54MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

833D-54.000MHZ-FE0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	15%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	54 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	2.6mm x 2.1mm x 1.0mm
longest rise time	5 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

HCMOS 2.5x2.0mm 2.5V SMD Oscillator

Model: F240 Series

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 6/30/2011

http://www.foxonline.com/need_a_sample.htm

FEAtuRES

•

Tight Stability

2.5V Operation

HCMOS Output

Standby Function

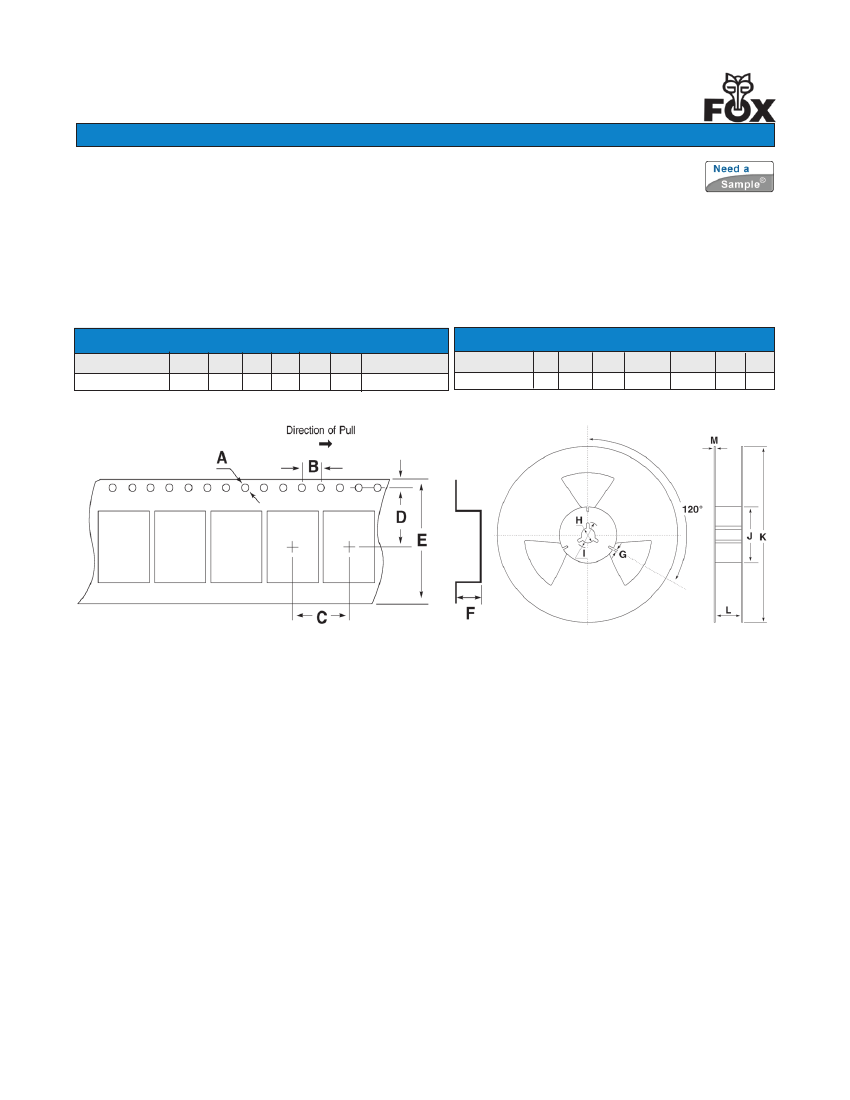

Tape and Reel

(3,000 pcs. STD)

2.6 Ma x

• PARt nuMbER SElECtiOn

Learn More - Internet Required

Model Frequency

Operating

Number Stability

Temperature (ºC)

833J-Frequency-xxxxx F246R

-40 ~ +85

±25PPM

833D-Frequency-xxxxx F247

-10 ~ +70

±15PPM

833E-Frequency-xxxxx F247R

-40 ~ +85

±15PPM

833F-Frequency-xxxxx F249

-10 ~ +70

±10PPM

833G-Frequency-xxxxx F249R

-40 ~ +85

±10PPM

Part Number

Frequency

Range (MHz)

4.000 ~ 54.000

T op

V ie w

Dot de note s

p in 1 .

2.1 m a x

• ElECtRiCAl CHARACtERiStiCS

PARAMETERS

Frequency Range (F

)

Storage Temperature Range

Supply Voltage

)

Input Current

Output Symmetry (50% V

)

Rise Time (10% ~ 90% V

)

Fall Time (90% ~ 10% V

)

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

Phase Noise

(@ 10kHz offset)

Period Jitter

Reflow Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

1.0 Ma x

MAX

(unless otherwise noted)

4.000 ~ 54.000 MHz

-40ºC ~ +85ºC

2.5V ± 10%

7.0mA

45% ~ 55%

5.0nS

10% V

90% V

Min

4mA Min

-4mA Min

15pF

10µA

10mS

250nS

10mS

-145dBc/Hz Typ.

3pS RMS Typ.

260ºC / 10 Seconds

Au over Ni

0.78

B ottom

V ie w

0.68

0.65

0.95

R e c om m e nde d

S o ld e r P a d L a y o u t

0.95

0.8

0.65

0.9

Inclusive of 25

C tolerance, operating temperature range, input voltage change, load change,

reflow and one year aging.

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Note: A 0.01µF bypass capacitor should be placed between Vdd (Pin 4) and GND (Pin 2) to

minimize power supply line noise.

Drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may

vary. All specifications subject to change without notice.

All dimensions are in millimeters.

P in C o n n e c t io n s

# 1 E /D

#2 GND

# 3 O u t pu t

# 4 V

• EnAblE / DiSAblE FunCtiOn

Pin 1

OUTPUT (Pin 3)

OPEN

ACTIVE

'1' Level V

≥

70% V

ACTIVE

'0' Level V

≤

30% V

High Z

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

www.foxonline.com

EMEA

Tel: +44 .11283.568153 |

Canada

+1.888.438.2369 |

Asia

Hong Kong Tel: +852.2854.4285 |

Japan

Tel: +81.3.3374.2079
