HCMOS 7x5mm SMD Oscillator
•
AEC-Q200 Qualified
•
IATF-16949 Certified
•
Temperature range up to -40ºC
to +125ºC
•
Supply Voltages: 1.8V, 2.5V, 3.3V
O7HA
DATASHEET
(former FA4100, FA4400, FA4500 Series)
1.8V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
O
)
Storage Temperature Range (T
STG
)
Supply Voltage (V
DD
)
Input Current
(I
DD
)
2.000 ~ 9.999999 MHz
10.000 ~ 31.999999 MHz
32.000 ~ 50.000 MHz
Standby Current
Ta = -40 ~ +85°C
Ta = -40 ~ +105°/125ºC
Output Symmetry (50% V
DD
)
Rise/Fall Time (10%/
90
% V
DD
Levels) (T
R
/T
F
)
Output Voltage
(V
OL
)
(V
OH
)
Output Load
(HCMOS)
Start-up Time
(T
S
)
Output Disable Time
1
Output Enable Time
1
Aging (per year @25°C)
ENABLE / DISABLE FUNCTION
Pin1
Output (pin 3)
1
OPEN
Active
Active
‘1’ Level V
IH
70%V
DD
High Z
‘0’ Level V
IL
30%V
DD
MAX (unless otherwise noted)
2.000
~
50.000
MHz
-55 ~ +150°C
1.8V±5%
5 mA
6
mA
15
mA
10
µA
20
µA
40
% ~
60
%
6.5 nS
10
% V
DD
90
% V
DD
Min
15
pF
10 mS
100 nS
10 mS
±5 PPM
•
Available Options by Stability & Operating Temp for 1.8V
Frequency
Stability
±100PPM
2
±100PPM
2
±100PPM
2
±50PPM
2
±50PPM
2
±50PPM
3
±25PPM
3
1
An
2
Operating
Temperature (ºC)
Frequency Range (MHz)
-40 ~ +85
-40 ~ +105
-40 ~ +125
-40 ~ +85
-40 ~ +105
-40 ~ +125
-40 ~ +85
2.000
~
50.000
2.000
~
50.000
2.000
~
50.000
2.000
~
50.000
2.000
~
50.000
2.000
~
50.000
2.000
~
50.000
internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, shock, vibration, reflow, and one-year aging.
3
Inclusive of 25C tolerance and operating temperature range.
© Copyright 2019 Fox Electronics. All rights reserved
Title / Description:
O7HA SERIES STANDARD SPECIFICATIONS
Drawing Number:
O7HA-DOC-1
Size: A
Part Number:
Cage:
61429
Draftsperson:
MAJ
Approved:
BEC
Revision Date:
07/03/2019
Page
1
of
5
HCMOS 7x5mm SMD Oscillator
2.5V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
O
)
Storage Temperature Range (T
STG
)
Supply Voltage (V
DD
)
Input Current
(I
DD
)
2.000 ~ 9.999999
MHz
10.000
~ 31.999999 MHz
32.000 ~ 75.000 MHz
Standby Current
Ta = -40 ~ +85°C
Ta = -40 ~ +105ºC/125°C
Output Symmetry (50% V
DD
)
Rise/Fall Time (10%/
90
% V
DD
Levels) (T
R
/T
F
)
2.000 ~ 47.999999 MHz
48.000 ~ 49.999999 MHz
50.000 ~ 75.000 MHz
Output Voltage
(V
OL
)
(V
OH
)
Output Load
(HCMOS)
Start-up Time
(T
S
)
Output Disable Time
1
Output Enable Time
1
Aging (per year @25°C)
ENABLE / DISABLE FUNCTION
Pin1
Output (pin 3)
OPEN
1
Active
Active
‘1’ Level V
IH
80%V
DD
High Z
‘0’ Level V
IL
20%V
DD
O7HA
DATASHEET
(former FA4100, FA4400, FA4500 Series)
MAX (unless otherwise noted)
2.000
~ 75.000 MHz
-55 ~ +150°C
2.5±5%
6
mA
8
mA
20 mA
10
µA
20 µA
40
% ~
60
%
6.5 nS
5
nS
4 nS
10
% V
DD
90
% V
DD
Min
15 pF
10 mS
100 nS
10 mS
±5 PPM
•
Available Options by Stability & Operating Temp for 2.5V
Frequency
Stability
±100PPM
2
±100PPM
2
±100PPM
2
±50PPM
2
±50PPM
2
±50PPM
3
±25PPM
3
1
An
2
Operating
Temperature (ºC)
Frequency Range (MHz)
-40 ~ +85
-40 ~ +105
-40 ~ +125
--40 ~ +85
-40 ~ +105
-40 ~ +125
-40 ~ +85
2.000 ~ 75.000
2.000 ~ 75.000
2.000 ~ 75.000
2.000 ~ 75.000
2.000 ~ 75.000
2.000 ~ 75.000
2.000 ~ 75.000
internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, shock, vibration, reflow, and one-year aging.
3
Inclusive of 25C tolerance and operating temperature range.
© Copyright 2019 Fox Electronics. All rights reserved
Title / Description:
O7HA SERIES STANDARD SPECIFICATIONS
Drawing Number:
O7HA-DOC-1
Size: A
Part Number:
Cage:
61429
Draftsperson:
MAJ
Approved:
BEC
Revision Date:
07/03/2019
Page
2
of
5
HCMOS 7x5mm SMD Oscillator
3.3V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
O
)
Storage Temperature Range (T
STG
)
Supply Voltage (V
DD
)
Input Current
(I
DD
)
2.000 ~ 19.999999 MHz
20.000 ~ 31.999999 MHz
32.000 ~ 49.999999 MHz
50.000 ~ 79.999999 MHz
80.000 ~ 99.999999 MHz
100.000 ~ 135.00 MHz
Standby Current
Ta = -40 ~ +85°C
Ta = -40 ~ +105ºC/125°C
Output Symmetry (50% V
DD
)
Rise/Fall Time (10%/90% V
DD
Levels) (T
R
/T
F
)
2.000 ~ 49.999999 MHz
50.000 ~ 79.999999 MHz
80.000 ~ 99.999999 MHz
100.000 ~ 135.000 MHz
Output Voltage
(V
OL
)
(V
OH
)
Output Load
(HCMOS)
Start-up Time
(T
S
)
Output Disable Time
1
Output Enable Time
1
Aging (per year @25°C)
ENABLE / DISABLE FUNCTION
Pin1
Output (pin 3)
1
OPEN
Active
Active
‘1’ Level V
IH
70%V
DD
High Z
‘0’ Level V
IL
30%V
DD
O7HA
DATASHEET
(former FA4100, FA4400, FA4500 Series)
MAX (unless otherwise noted)
2.000 ~ 135.000 MHz
-55 ~ +150°C
3.3V±10%
7 mA
12 mA
20 mA
25 mA
30 mA
40 mA
10 µA
20 µA
40% ~ 60%
10 nS
8 nS
5 nS
4 nS
10% V
DD
90% V
DD
Min
15 pF
10 mS
150 nS
10 mS
±5 PPM
•
Available Options by Stability & Operating Temp for 3.3V
Frequency
Stability
±100PPM
2
±100PPM
2
±100PPM
2
±50PPM
2
±50PPM
2
±50PPM
3
±25PPM
3
1
An
2
Operating
Temperature (ºC)
Frequency Range (MHz)
-40 ~ +85
-40 ~ +105
-40 ~ +125
-40 ~ +85
-40 ~ +105
-40 ~ +125
-40 ~ +85
2.000 ~ 135.000
2.000 ~ 135.000
2.000 ~ 135.000
2.000 ~ 135.000
2.000 ~ 135.000
2.000 ~ 135.000
2.000 ~ 135.000
internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, shock, vibration, reflow, and one-year aging.
3
Inclusive of 25C tolerance and operating temperature range.
© Copyright 2019 Fox Electronics. All rights reserved
Title / Description:
O7HA SERIES STANDARD SPECIFICATIONS
Drawing Number:
O7HA-DOC-1
Size: A
Part Number:
Cage:
61429
Draftsperson:
MAJ
Approved:
BEC
Revision Date:
07/03/2019
Page
3
of
5
HCMOS 7x5mm SMD Oscillator
O7HA
DATASHEET
(former FA4100, FA4400, FA4500 Series)

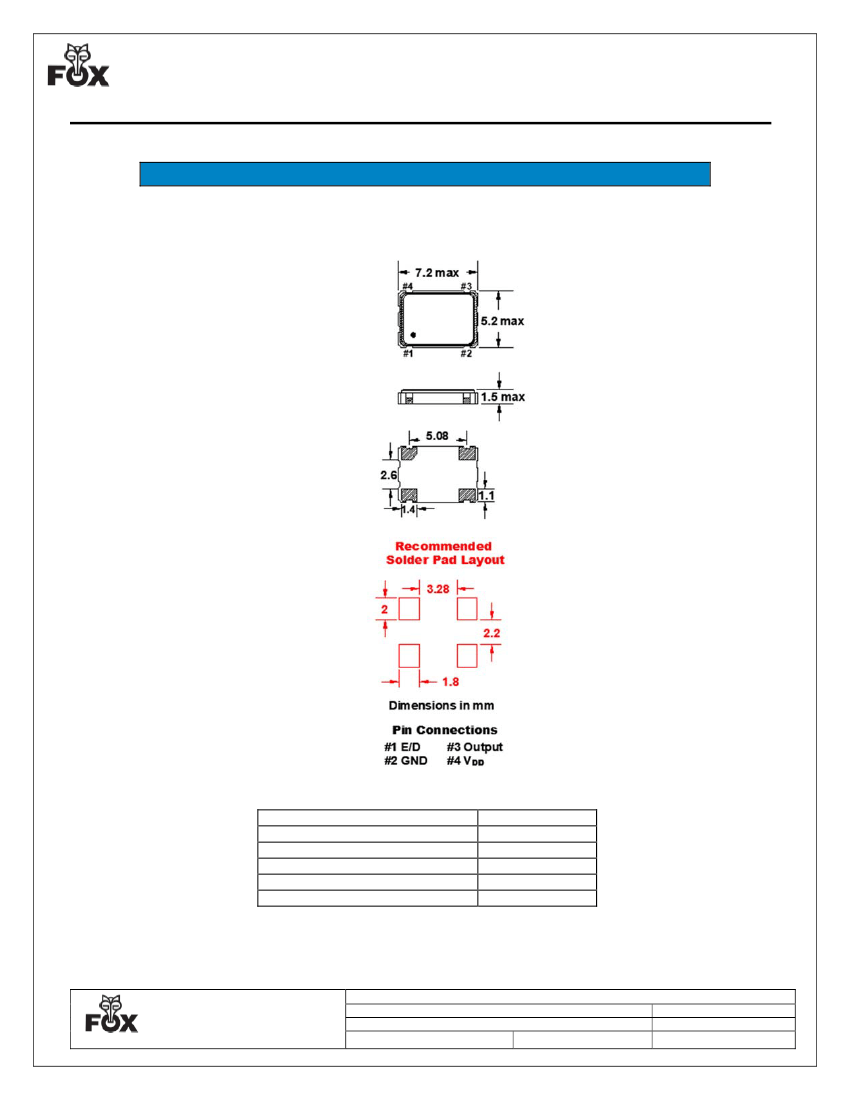

DIMENSIONS / MECHANICAL SPECIFICATIONS
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
Lead (Pb) Free
ROHS/REACH Compliant
260°C / 10 Seconds x 2
1
Au over Ni
Seam
Yes
Yes
Notes:
*A 0.01μF capacitor should be placed between V
DD
(Pin 4) and GND (Pin2) to minimize power supply line noise.
*Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary
Title / Description:
O7HA SERIES STANDARD SPECIFICATIONS
Drawing Number:
O7HA-DOC-1
Size: A
Part Number:
Cage:
61429
Draftsperson:
MAJ
Approved:
BEC
Revision Date:
07/03/2019
© Copyright 2019 Fox Electronics. All rights reserved
Page
4
of
5
HCMOS 7x5mm SMD Oscillator
A
Ø1.55

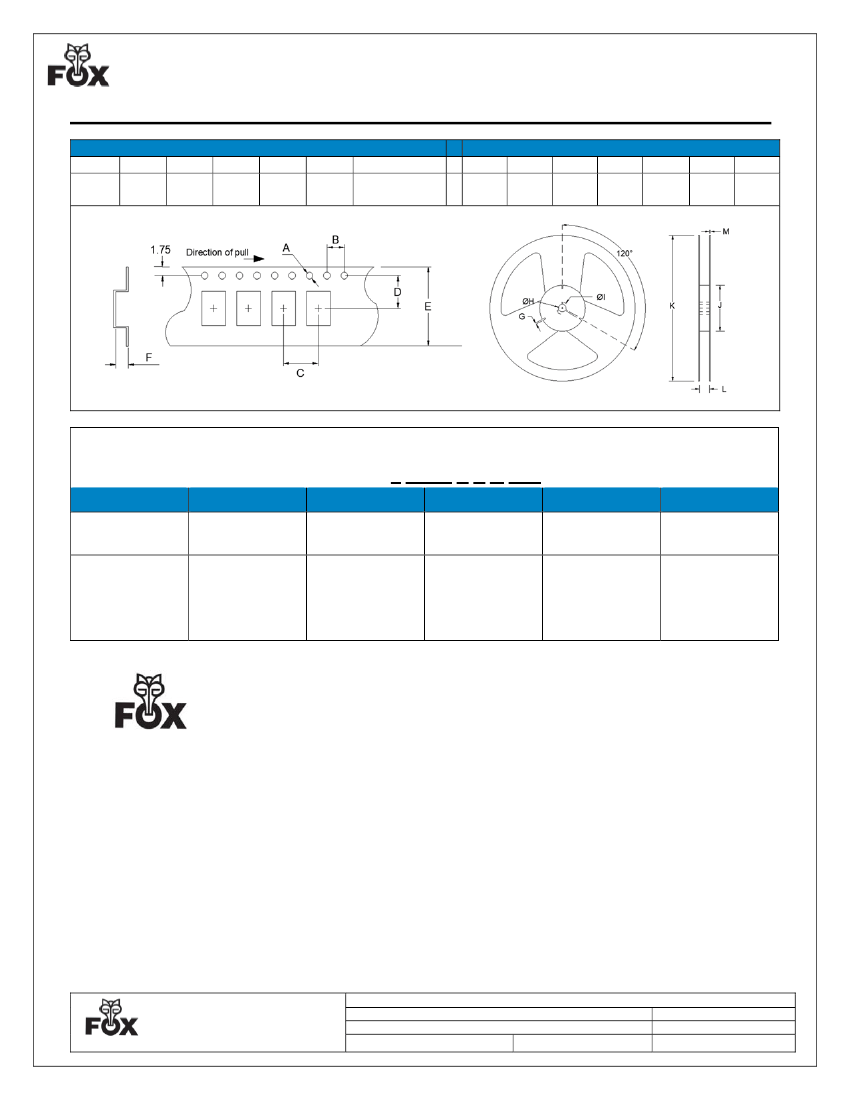

Tape Specifications (millimeters)
B
C
D
E
F
Reel Qty
4.0
8.0
7.5
16.0
2.15
-T2 = 2,000
-T1 = 1,000
G
2.0
O7HA
DATASHEET
(former FA4100, FA4400, FA4500 Series)
Reel Specifications (millimeters)
H
I
J
K
L
Ø13
Ø21
Ø80 Ø255 17.5
M
2.0
Available Options & Part Identification*
Example: F O7HA K A M 25.0
F
Fox
O7HA
Model Number
K
Voltage
K = 1.8V±5%
H = 2.5V±5%
C = 3.3V±10%
A
Stability
A = ±100 PPM
B = ±50 PPM
D = ±25 PPM
M
Operating
Temperature
M = -40 to +85°C
P = -40 to +105ºC
I = -40 to +125ºC
25.0
Frequency (MHz)
*Not all frequencies in the frequency range, or every combination of stability, temp range, and voltage available. See stabilities and op temps for each V
DD
.
Corporate Headquarters
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
1-888-GET-2-FOX (1-888-438-2369)
or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
Sales
http://www.FOXONLINE.com/email
Tech Support
Product use:
Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox Electronics'
sole discretion. All information in this document, including descriptions of product features and performance, is subject to change without notice.
Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or
warranty of any kind, whether express or implied, including, but not limited to, the suitability of Fox Electronics' products for any particular purpose,
an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide
and does not convey any license under intellectual property rights of Fox Electronics or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life support systems or
similar devices where the failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or
safety of users. Anyone using a Fox Electronics product in such a manner does so at their own risk, absent an express, written agreement by
Fox Electronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice.
Other trademarks and service marks used herein, including protected names, logos and designs, are the property of Fox Electronics or their
respective third-party owners.
© Copyright 2019 Fox Electronics. All rights reserved
Title / Description:
O7HA SERIES STANDARD SPECIFICATIONS
Drawing Number:
O7HA-DOC-1
Size: A
Part Number:
Cage:
61429
Draftsperson:
MAJ
Approved:
BEC
Revision Date:
07/03/2019
Page
5
of
5
