7x5mm Spread Spectrum SMD Oscillator
•
EMI Reduction
•
Temperature Ranges to
-40ºC
to +85ºC
•
Supply Voltage:
2.5V
S7BH
(former FSS72B Series)
DATASHEET
ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
O
)
Operating Temperature Range
Storage Temperature Range (T
STG
)
Supply Voltage
(V
DD
)
Frequency Stability
2
Input Current
(I
DD
)
1 ~ <50MHz
80 ~ <100MHz
100 ~ <166MHz
Output Symmetry (50% V
DD
level)
Rise/Fall Time (10%/90% V
DD
Levels) (T
R
/T
F
)
1 ~ <50MHz
50 ~ <80MHz
80 ~ 166MHz
Output Voltage
(V
OL
)
(V
OH
)
Spread Spectrum Function
Center Spread
Down Spread
Modulation Frequency
Output Load
(HCMOS)
Start-up Time
(T
S
)
Output Disable Time
1
Output Enable Time
1
ENABLE / DISABLE FUNCTION
Pin1
Output (pin 3)
1
Active
OPEN
Active
‘1’ Level V
IH
70%V
DD
High Z
‘0’ Level V
IL
30%V
DD
MAX (unless otherwise noted)
1 ~ 166MHz
-40 ~ +85ºC
-55 ~ +125°C
2.5V±5%
±50PPM (Standard)
20mA
25mA
30mA
40% ~ 60%
5nS
4nS
3nS
10% V
DD
90% V
DD
Min
±0.125% ~ ±2%
-0.5% ~ 4%
30 ~ 40kHz
15pF
10mS
100nS
2mS
•
Available Options by Stability & Operating Temp
Frequency
Stability
2
±50PPM
±25PPM
±25PPM
1
2
Operating
Temperature (ºC)
Frequency Range (MHz)
-40 ~ +85
0 ~ +70
-40 ~ +85
1 ~ 166.000
1 ~ 166.000
1 ~ 166.000
An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Inclusive of 25°C tolerance, operating temperature range.
© Copyright 2019 Fox Electronics. All rights reserved
Title / Description:
S7BH SERIES STANDARD SPECIFICATIONS
Drawing Number:
S7BH-DOC-1
Size:
A
Part Number:
Cage:
61429
Draftsperson:
BEC
Approved:
MAJ
Revision Date:
09/10/2019
Page
1
of
3
7x5mm Spread Spectrum SMD Oscillator
S7BH
(former FSS72B Series)
DATASHEET

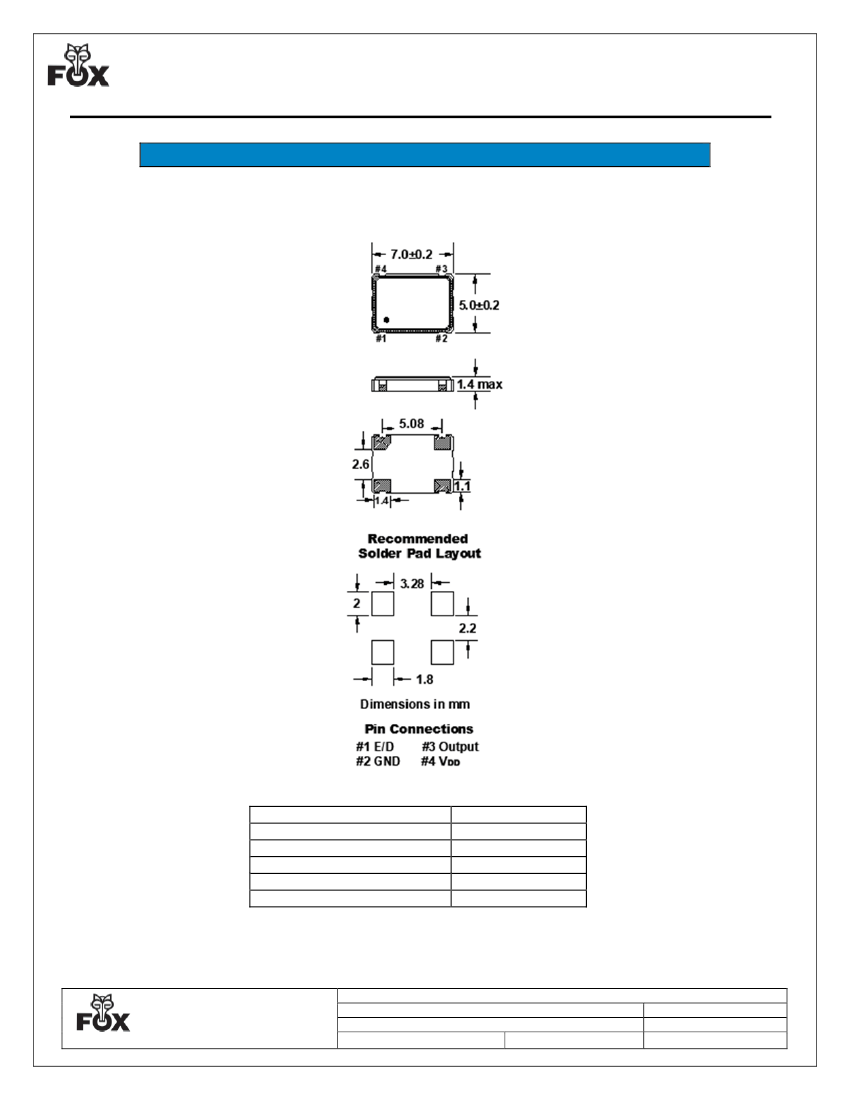

DIMENSIONS / MECHANICAL SPECIFICATIONS
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
Lead (Pb) Free
ROHS/REACH Compliant
260°C / 10 Seconds x 2
1
Au over Ni
Seam
Yes
Yes
Notes:
*A 0.01μF capacitor should be placed between V
DD
(Pin 4) and GND (Pin2) to minimize power supply line noise.
*Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary.
Title / Description:
S7BH SERIES STANDARD SPECIFICATIONS
Drawing Number:
S7BH-DOC-1
Size:
A
Part Number:
Cage:
61429
Draftsperson:
BEC
Approved:
MAJ
Revision Date:
09/10/2019
© Copyright 2019 Fox Electronics. All rights reserved
Page
2
of
3
7x5mm Spread Spectrum SMD Oscillator

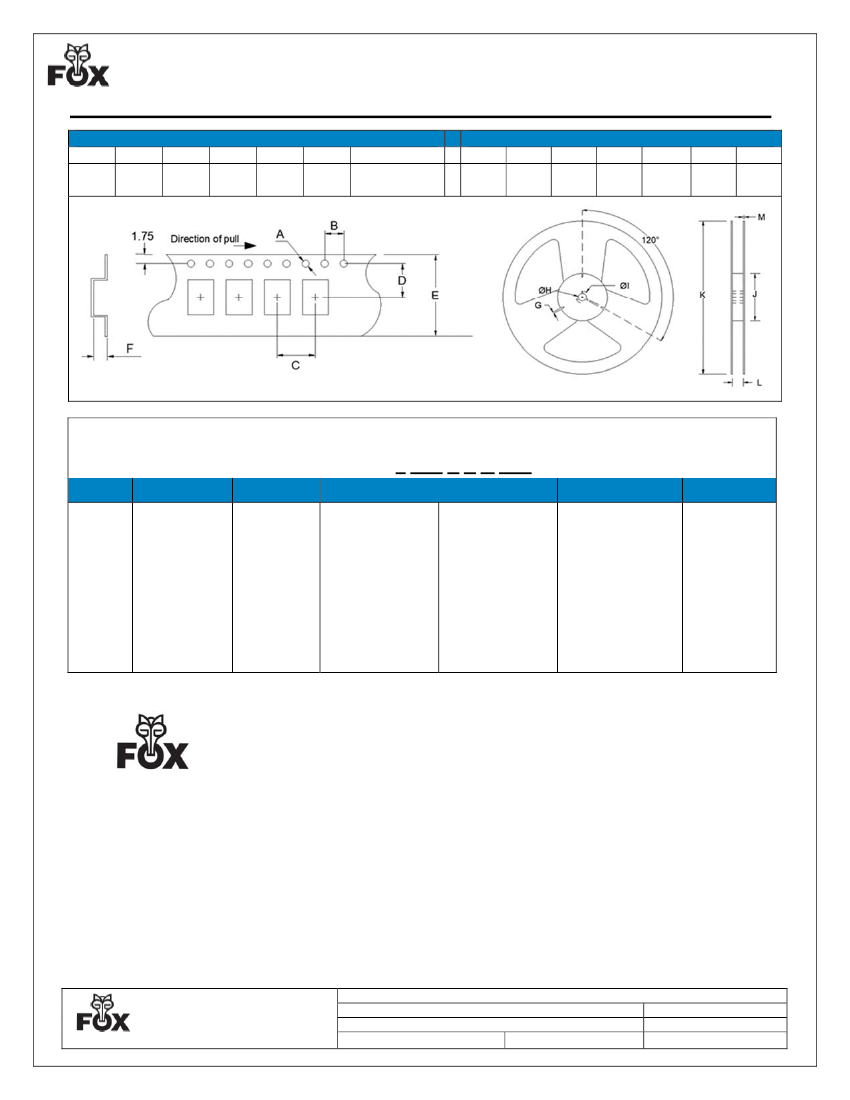

Tape Specifications (millimeters)
B
C
D
E
F
Reel Qty
4.0
8.0
7.5
16.0 2.15
-T1 = 1,000
-T2 = 2,000
S7BH
(former FSS72B Series)
DATASHEET
A
Ø1.5
G
2.0
Reel Specifications (millimeters)
H
I
J
K
L
Ø13 Ø21 Ø80 Ø255 17.5
M
2.0
Available Options & Part Identification*
Example: F S7B H B M 25.0
F
Fox
S7B
Model Number
H
Voltage
H = 2.5V±5%
B
Center Spread
N = ±0.125%
A = ±0.25%
B = ±0.5%
C = ±0.75%
D = ±1%
E = ±1.5%
F = ±2%
M
Down Spread
P = -0.25%
G = -0.5%
H = -1%
J = -1.5%
K = -2%
L = -3%
M = -4%
25.0
Frequency
Operating
Temperature
C = 0 to +70ºC
M = -40 to +85°C
*Not all frequencies in the frequency range available.
Corporate Headquarters
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
1-888-GET-2-FOX (1-888-438-2369)
or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
Sales
http://www.FOXONLINE.com/email
Tech Support
Product use:
Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox Electronics'
sole discretion. All information in this document, including descriptions of product features and performance, is subject to change without notice.
Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or
warranty of any kind, whether express or implied, including, but not limited to, the suitability of Fox Electronics' products for any particular purpose,
an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide
and does not convey any license under intellectual property rights of Fox Electronics or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life support systems or
similar devices where the failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or
safety of users. Anyone using a Fox Electronics product in such a manner does so at their own risk, absent an express, written agreement by
Fox Electronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice.
Other trademarks and service marks used herein, including protected names, logos and designs, are the property of Fox Electronics or their
respective third-party owners.
Title / Description:
S7BH SERIES STANDARD SPECIFICATIONS
Drawing Number:
S7BH-DOC-1
Size:
A
Part Number:
Cage:
61429
Draftsperson:
BEC
Approved:
MAJ
Revision Date:
09/10/2019
© Copyright 2019 Fox Electronics. All rights reserved
Page
3
of
3
