FT5755M datasheet, PDF - EEWORLD Datasheet

FT5755M: Description5A, 100V, 4 CHANNEL, NPN, Si, POWER TRANSISTOR, RM-65, 12 PIN; CategoryDiscrete semiconductor The transistor; File Size130KB，2 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric View All

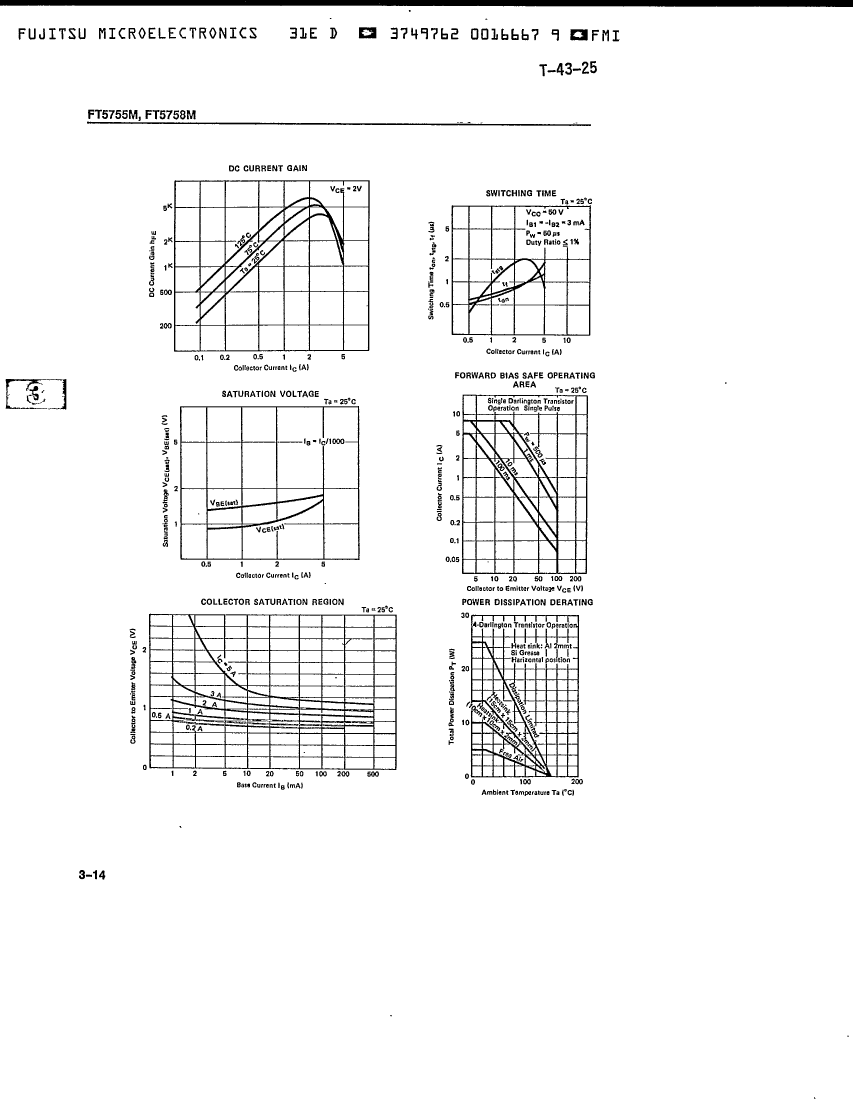

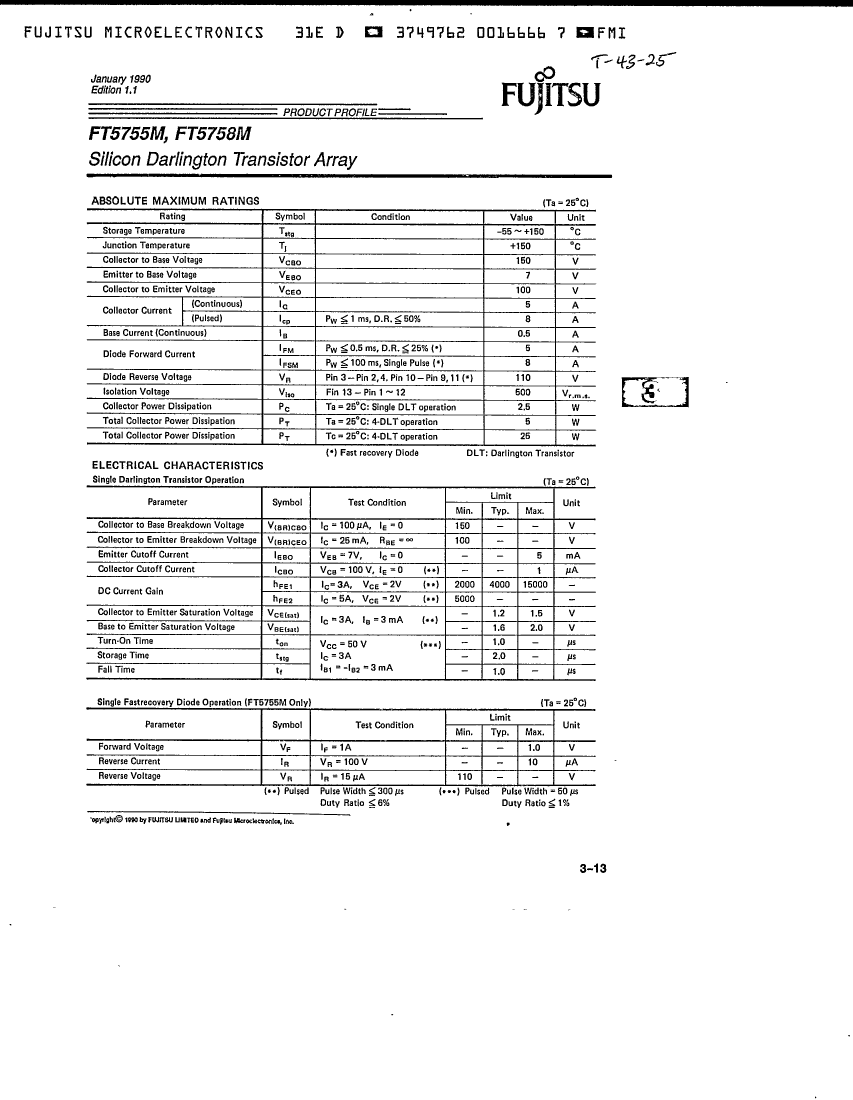

FT5755M Overview

5A, 100V, 4 CHANNEL, NPN, Si, POWER TRANSISTOR, RM-65, 12 PIN

Parameter Name	Attribute value
Maker	FUJITSU
package instruction	FLANGE MOUNT, R-PSFM-T12
Contacts	12
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	100 V
Configuration	COMPLEX
Minimum DC current gain (hFE)	5000
JESD-30 code	R-PSFM-T12
Number of components	4
Number of terminals	12
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	25 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
VCEsat-Max	1.5 V
