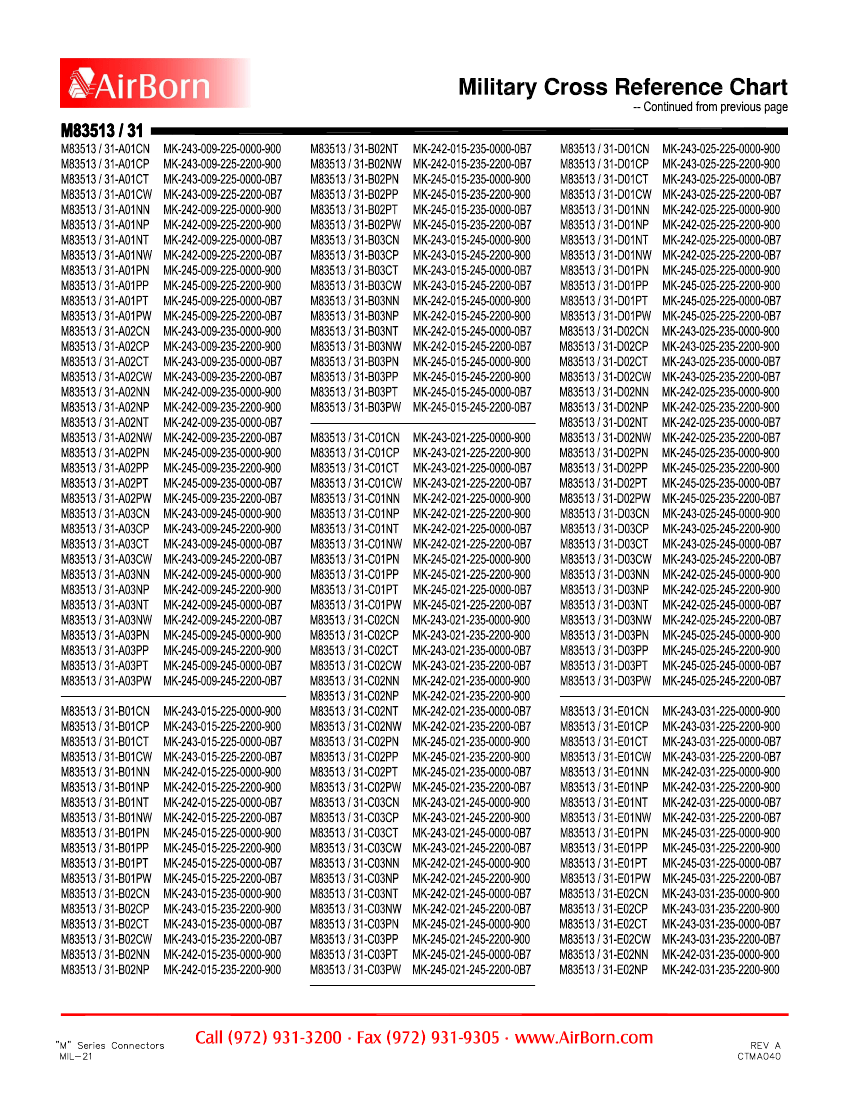

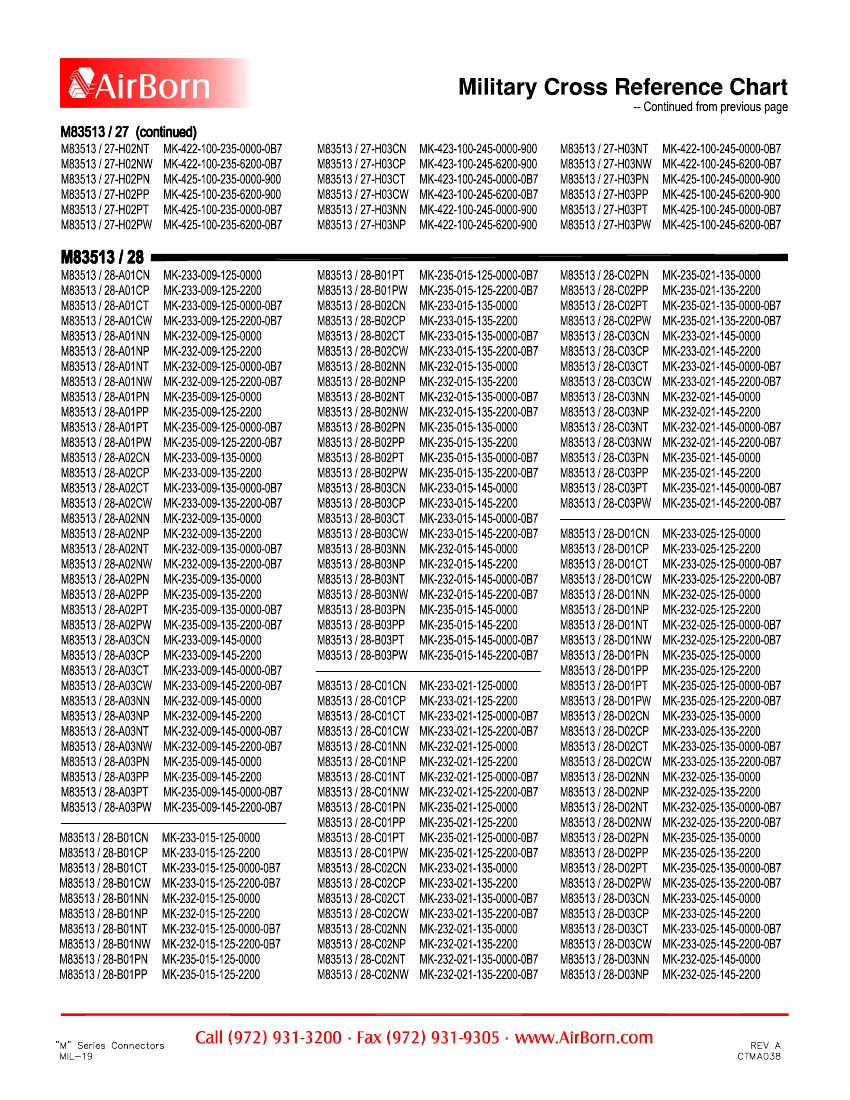

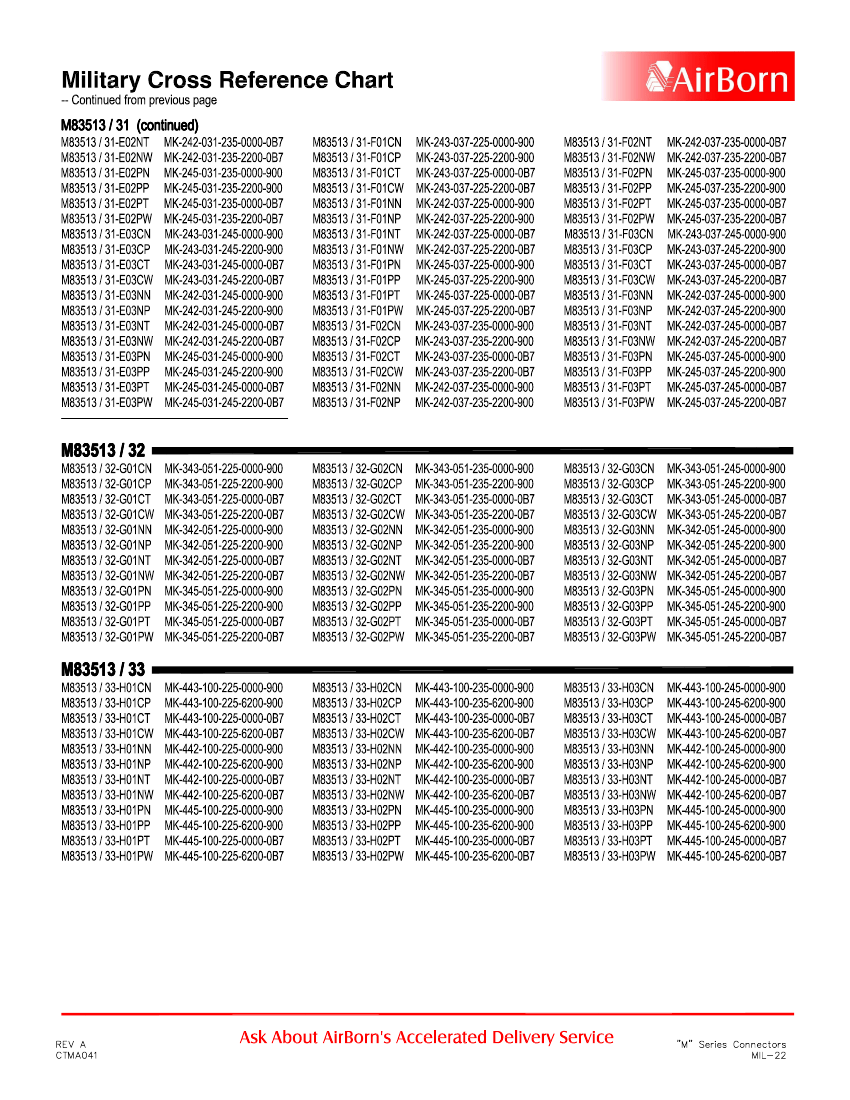

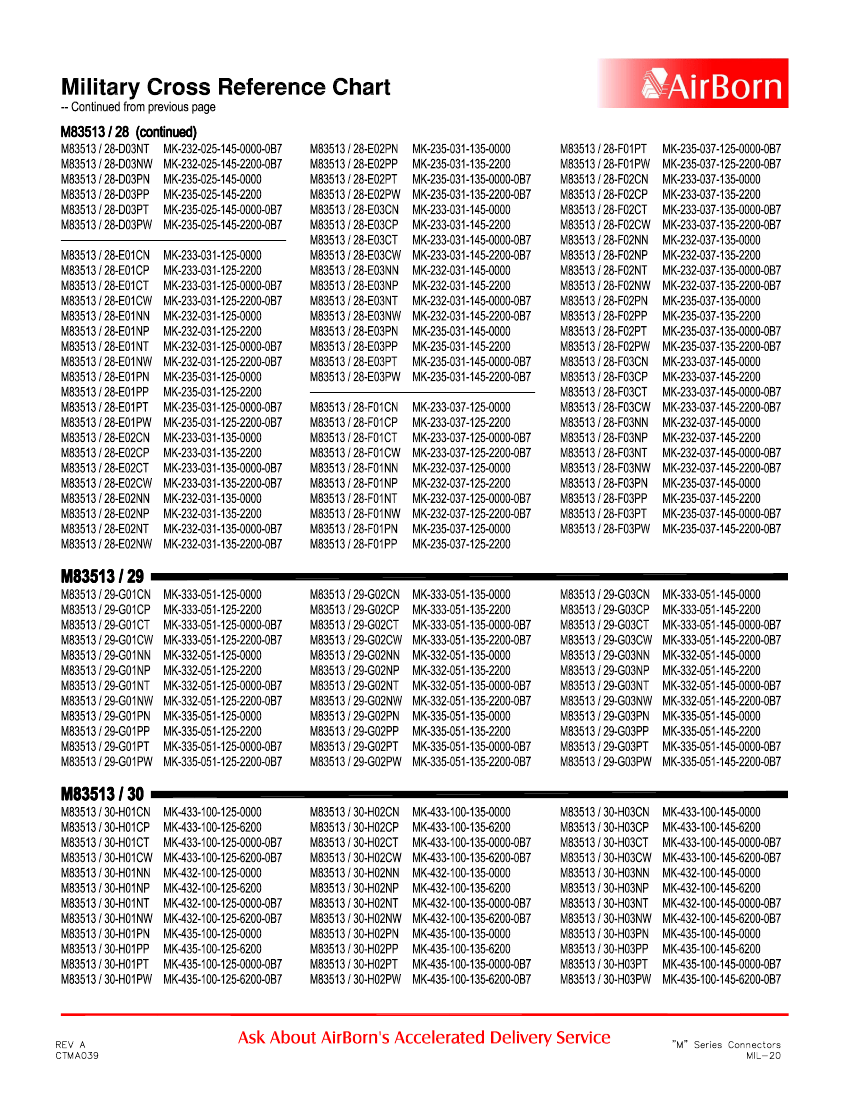

D Type Connector, 15 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Locking, Plug
| Parameter Name | Attribute value |
| Maker | AirBorn |
| Reach Compliance Code | compliant |
| Other features | STANDARD: MIL-DTL-83513 |
| Board mount options | HOLE.096 |
| body width | 0.31 inch |
| subject depth | 0.355 inch |
| body length | 0.935 inch |
| Body/casing type | PLUG |
| Connector type | D MICROMINIATURE CONNECTOR |
| Contact arrangement | S15P0 |
| Contact to complete cooperation | AU |
| Contact completed and terminated | TIN/LEAD |
| Contact point gender | MALE |
| Contact material | BERYLLIUM COPPER |
| contact mode | STAGGERED |
| Contact resistance | 8 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 600VAC V |
| Durability | 500 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.78 N |
| Insulation resistance | 5000000000 Ω |
| insulator material | POLYPHENYLENE SULFIDE |
| MIL compliance | YES |
| Plug contact pitch | 0.05 inch |
| Match contact row spacing | 0.043 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.91 mm |
| Plating thickness | 50u inch |
| Rated current (signal) | 3 A |
| Guideline | MIL |
| reliability | MIL-C-83513 |
| Shell material | METAL |
| Housing size | B |
| Terminal length | 0.14 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| Evacuation force-minimum value | 0.139 N |
