BODY
SERIES
CONTACTS
SIZE
OPTIONS
HARDWARE
MK

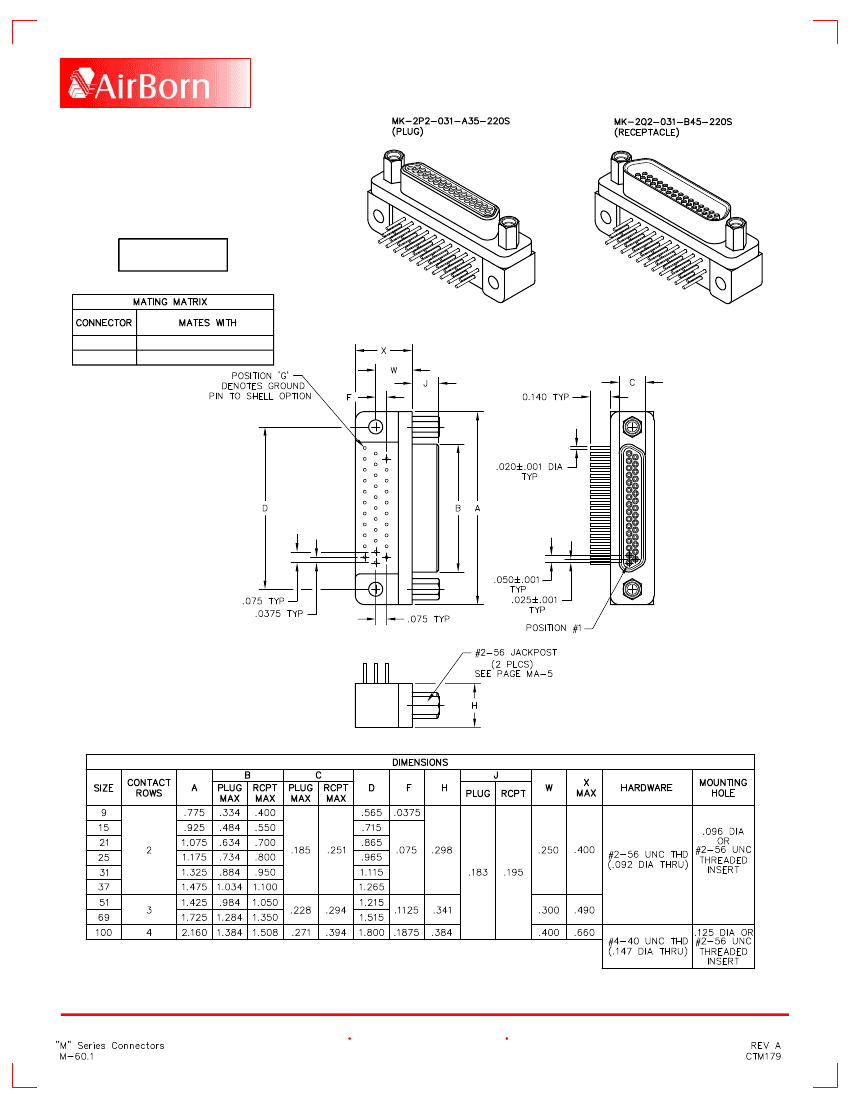

.050" Rugged Metal PC Board Mount Connector
MK
.050" Rugged Metal PC Board Mount Connector
2
3
4
P
2
3
4
5
2-Row (Sizes 9 thru 37)
3-Row (Size 51 & 69)
4-Row (Size 100)
BODY STYLE:
Plug, right angle, compressed footprint
BODY MATERIAL:
Electroless nickel shell w/ PPS insulator
Electrodeposited cadmium shell w/ PPS insulator
Hard anodized black shell w/ PPS insulator
Stainless steel shell w/ PPS insulator
2
3
4
Q
2
3
4
5
2-Row (Sizes 9 thru 37)
3-Row (Size 51 & 69)
4-Row (Size 100)
BODY STYLE:
Receptacle, right angle, compressed footprint
BODY MATERIAL:
Electroless nickel shell w/ PPS insulator
Electrodeposited cadmium shell w/ PPS insulator
Hard anodized black shell w/ PPS insulator
Stainless steel shell w/ PPS insulator
XXX 009, 015, 021, 025, 031, 037, 051, 069, 100
XXX 009, 015, 021, 025, 031, 037, 051, 069, 100
32
33
34
A2
A3
A4
3
5
7
TYPE CONTACTS/TERMINATIONS:
Pin, right angle, PCB leads, .109"
Pin, right angle, PCB leads, .140"
Pin, right angle, PCB leads, .172"
Pin, right angle, PCB leads, .109", w/ ground pin option
Pin, right angle, PCB leads, .140", w/ ground pin option
Pin, right angle, PCB leads, .172", w/ ground pin option
PLATING OPTIONS:
50 u" Au contacts: Au terminations
50 u" Au contacts: Sn/Pb alloy terminations
50 u" Au contacts: SAC305 terminations
43
44
45
B3
B4
B5
3
5
7
TYPE CONTACTS/TERMINATIONS:
Socket, right angle, PCB leads, .109"
Socket, right angle, PCB leads, .140"
Socket, right angle, PCB leads, .172"
Socket, right angle, PCB leads, .109", w/ ground pin option
Socket, right angle, PCB leads, .140", w/ ground pin option
Socket, right angle, PCB leads, .172", w/ ground pin option
PLATING OPTIONS:
50 u" Au contacts: Au terminations
50 u" Au contacts: Sn/Pb alloy terminations
50 u" Au contacts: SAC305 terminations
00
22
99
0S
STYLE OF HARDWARE:
None
Two fixed jacknuts (62*)
Keying hardware, see options below
POLARIZATION:
Standard body polarization
00
22
99
0S
STYLE OF HARDWARE:
None
Two fixed jacknuts (62*)
Keying hardware, see options below
POLARIZATION:
Standard body polarization
0B7
KPXX
Threaded inserts in mounting holes
Two fixed jacknuts (KN*)
900
0B7
KPXX
Interfacial sealing gasket
Threaded inserts in mounting holes and
interfacial sealing gasket
Two fixed jacknuts (KN*) and interfacial
sealing gasket
See page MA-6 for keying options
See page MA-6 for keying options
* = Use numbers in parenthesis when ordering size 100.
= Option not RoHS compliant
Ask About AirBorn's Accelerated Delivery Service
