WG104SAD7QSY-1 datasheet, PDF - EEWORLD Datasheet

WG104SAD7QSY-1: DescriptionBoard Connector, 104 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size740KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

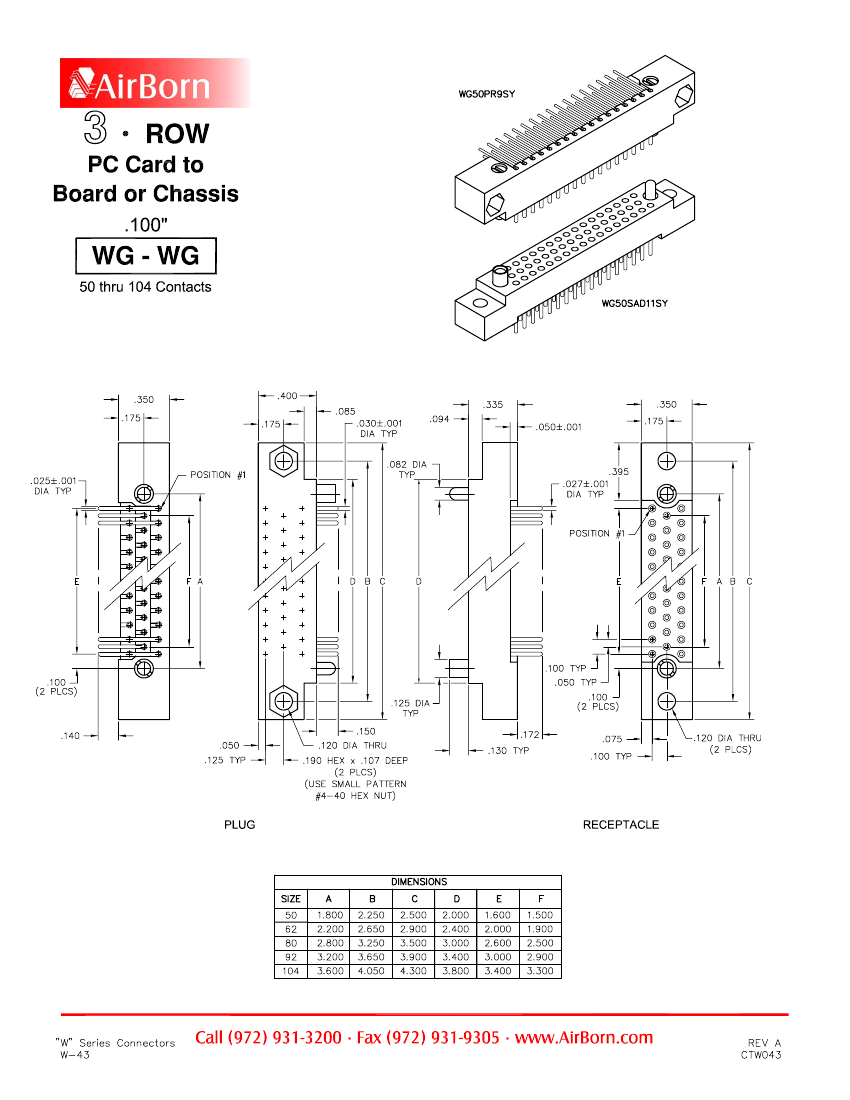

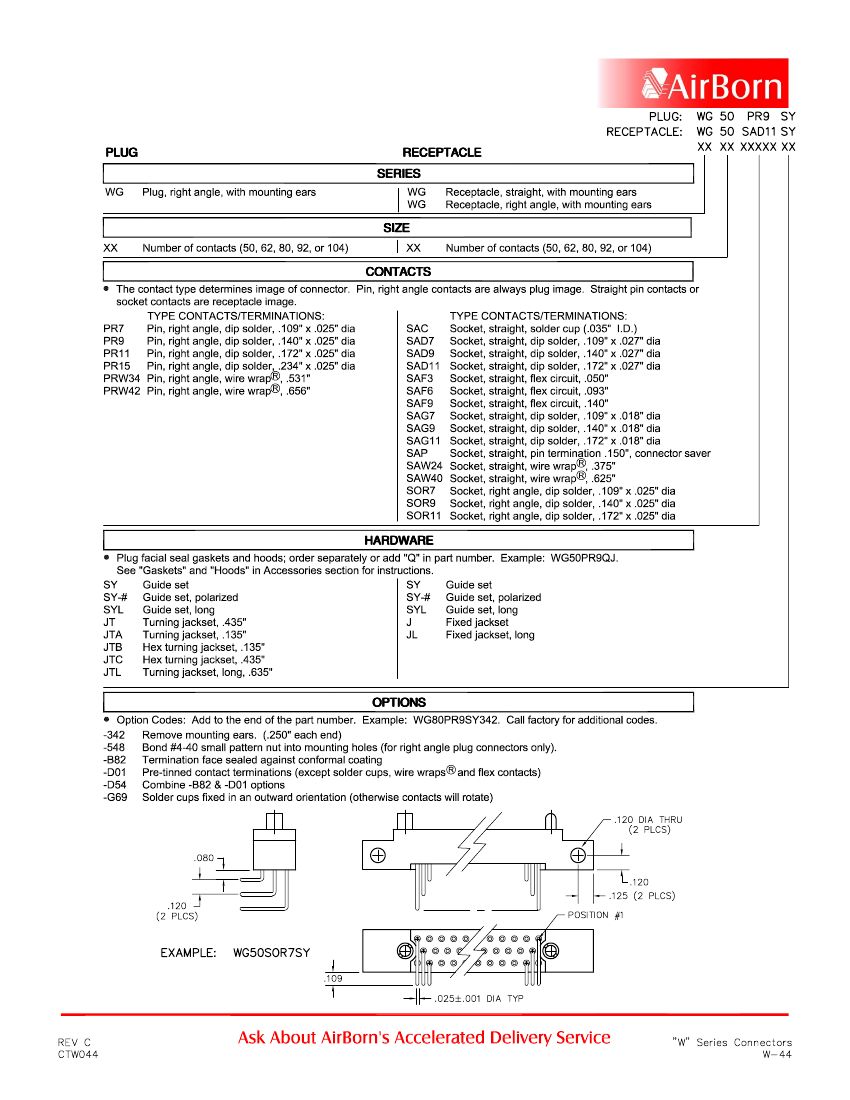

WG104SAD7QSY-1 Overview

Board Connector, 104 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle,

Parameter Name	Attribute value
Maker	AirBorn
Reach Compliance Code	compliant
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	104
