WG160SOR11SY datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> WG160SOR11SY

WG160SOR11SY: DescriptionBoard Connector, 160 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size103KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

WG160SOR11SY Overview

Board Connector, 160 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle,

WG160SOR11SY Parametric

Parameter Name	Attribute value
Maker	AirBorn
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	160

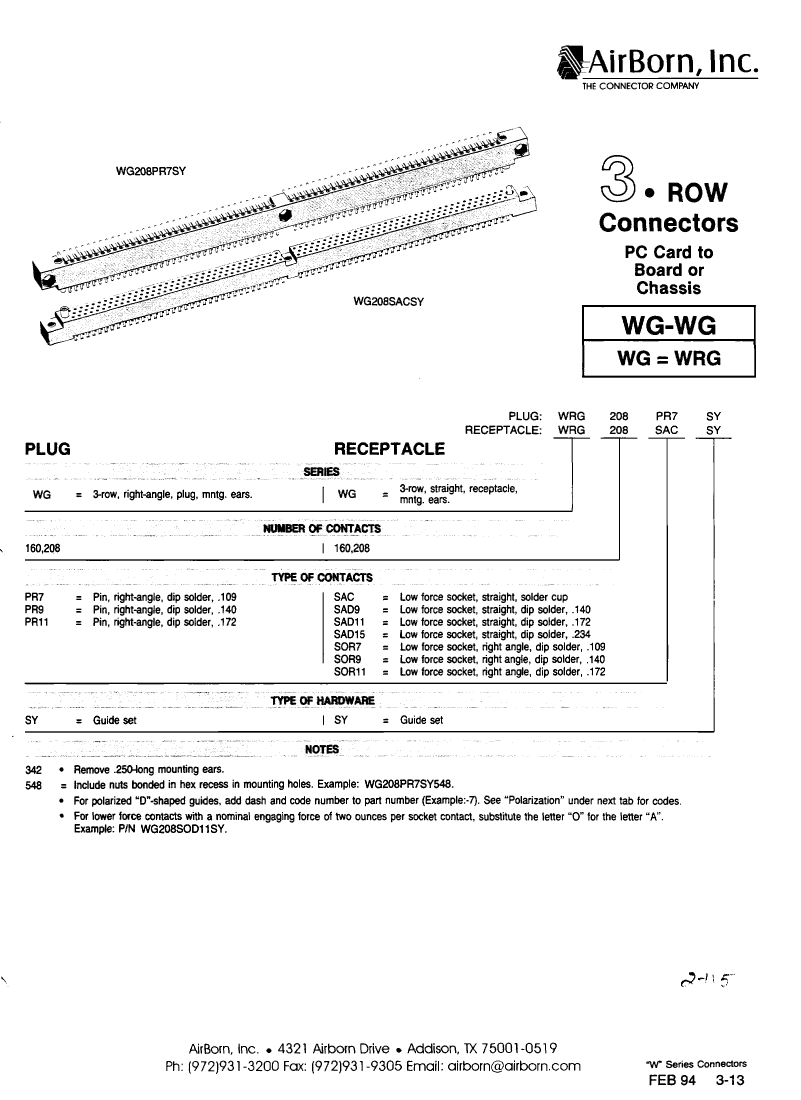

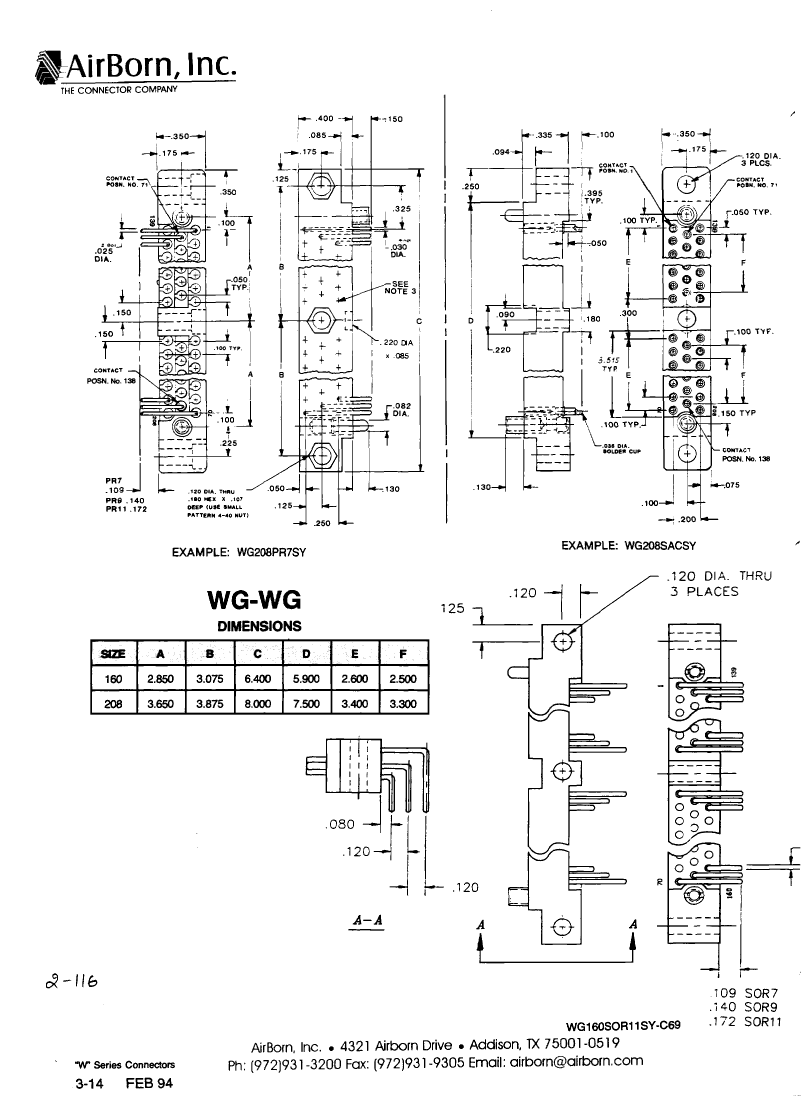

Preview

Download Datasheet

View All

WG160SOR11SY Related Products

	WG160SOR11SY	WG160SAD15	WG160SAD15SY	WG160SOR7SY	WG160SOR9SY	WG208SAD15	WG208SAD15SY	WG208SOR11SY	WG208SOR7SY	WG208SOR9SY
Description	Board Connector, 160 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle,	Board Connector, 160 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Connector, 160 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle,	Board Connector, 160 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle,	Board Connector, 160 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle,	Board Connector, 208 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 208 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle,	Board Connector, 208 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle,	Board Connector, 208 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle,	Board Connector, 208 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle,
Maker	AirBorn	AirBorn	AirBorn	AirBorn	AirBorn	AirBorn	AirBorn	AirBorn	AirBorn	AirBorn
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3	3	3	3	3
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	160	160	160	160	160	208	208	208	208	208
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
DIN compliance	NO	-	NO	NO	NO	-	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	-	NO	NO	NO	NO
MIL compliance	NO	-	NO	NO	NO	-	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
