WTB90SOR11JT datasheet, PDF - EEWORLD Datasheet

WTB90SOR11JT: DescriptionBoard Connector, 90 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size837KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

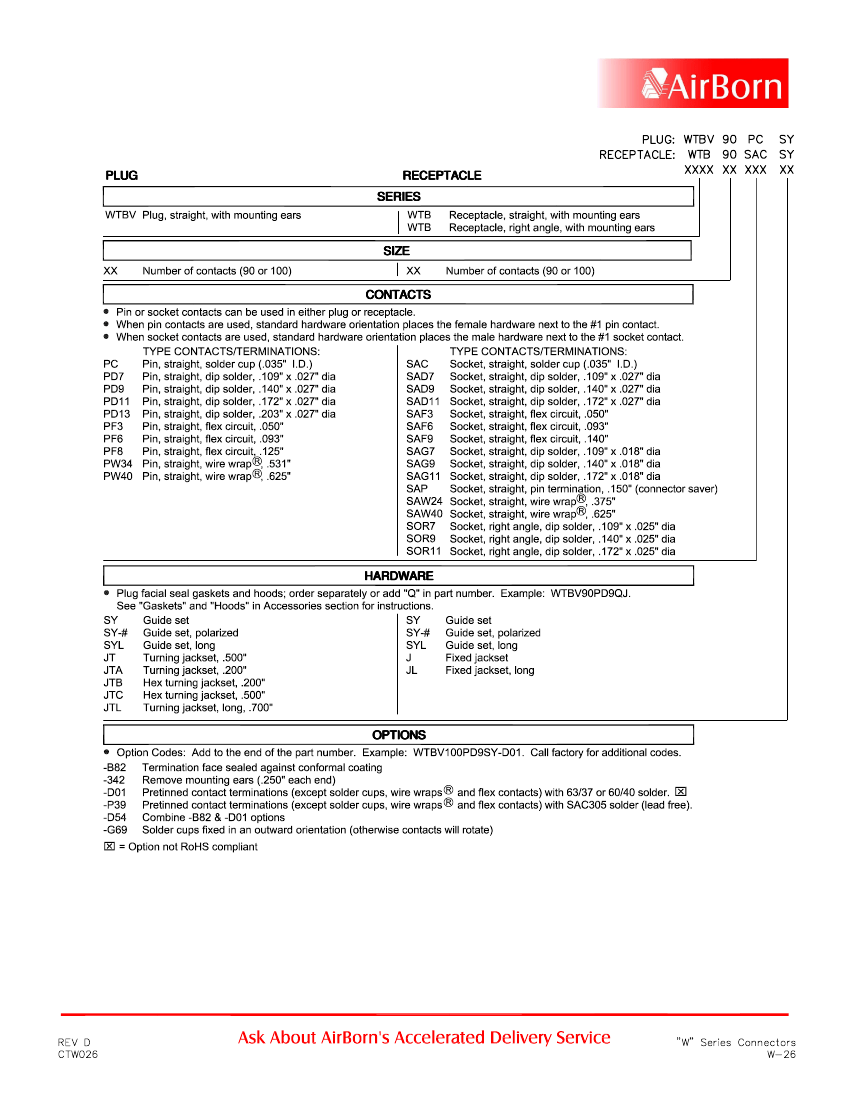

WTB90SOR11JT Overview

Board Connector, 90 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Maker	AirBorn
Reach Compliance Code	compliant

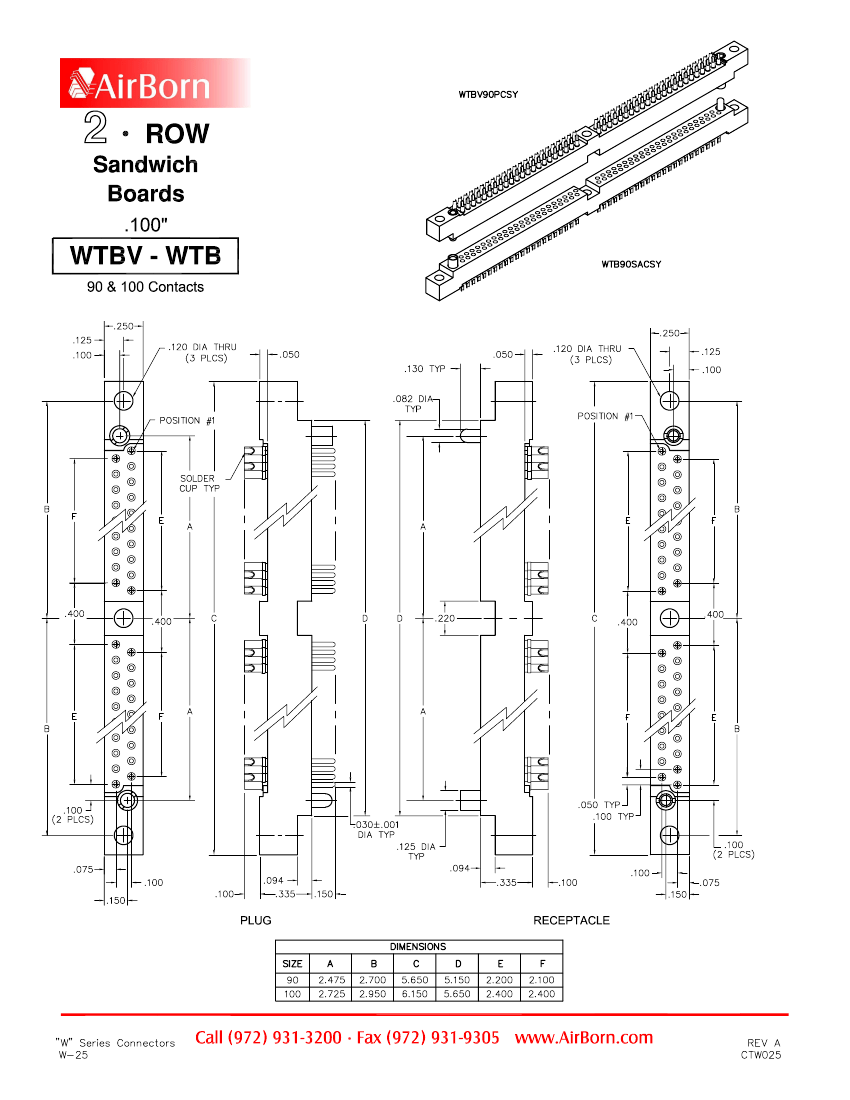

body width	0.25 inch
subject depth	0.335 inch
body length	5.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	90
