SN79Mxxx
3 Terminal 0.5A Negative Voltage Regulator
Semiconductor
http:// www.auk.co.kr
Description
The SN79Mxxx series are three-terminal Negative regulators providing
over 0.5A output current with internal current limiting, thermal
shutdown and safe area protection. These regulators are useful in
a wide range of applications. Although they are just fixed voltage
regulators, the SN79Mxxx series can be used with external components to
obtain adjustable voltages and Currents.
TO-252-3L
Application
◈
Consumer and personal electronics
◈
SMPS post-regulator / dc-to-dc modules
◈
High-efficiency linear power supplies
Features and Benefits
TO-220F-3L
◈
Output Current up to 1.0A
◈
Output Voltage : -5, -6, -8, -12, -15, -18, -24V
◈
Built in OVP, CLP circuit.
◈
Built in TSD Protection.
ORDERING INFORMATION
Product
SN79xxD
SN79xxPI
Marking
SN79MxxD
SN79MxxPI
Package
TO-252-3L
TO-220F-3L
◈
Output Transistor Safe Area Protection.
◈
Ultra High level of ESD [ Built in ESD Protection Cell ]
[ MM : 500V / HBM 5KV↑]

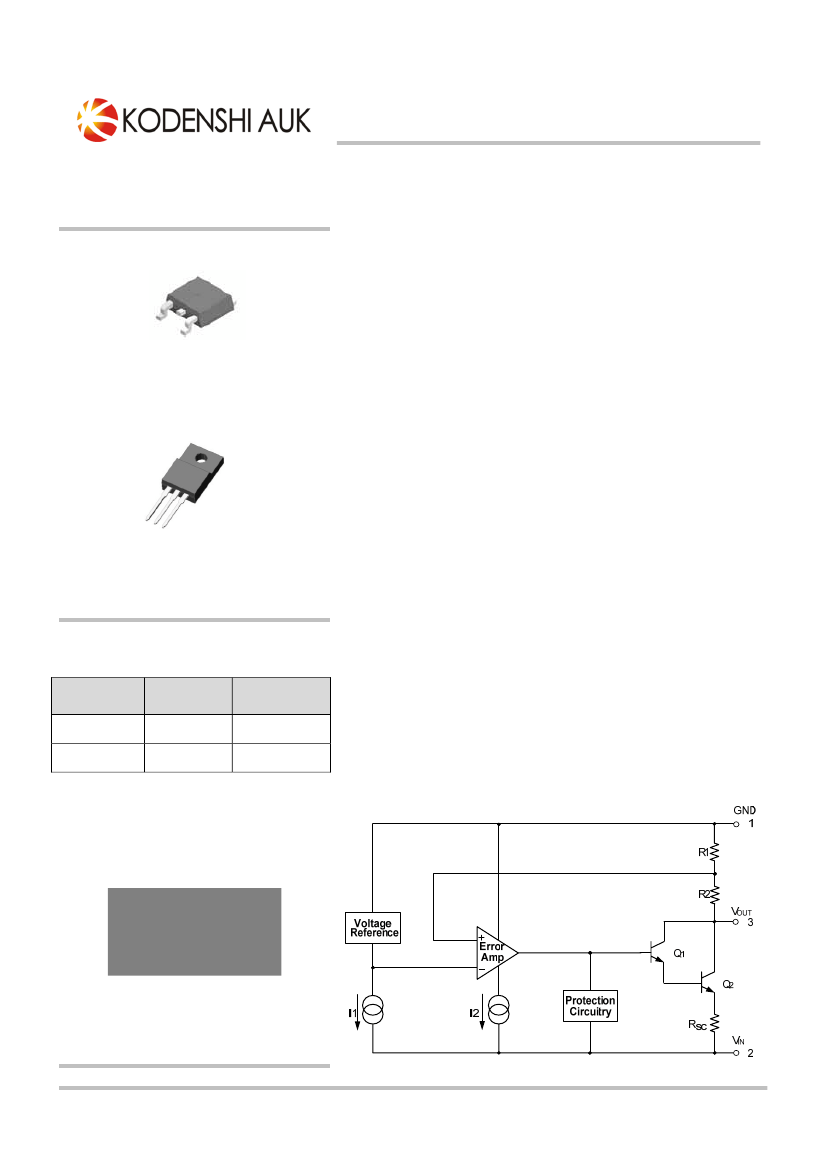

Equivalent Circuit
▲
Marking Detail Information
[ TO-220F-3L & TO-253-3L PKG Marking ]
AUK(①)
G△YWW (②)
SN79Mxxx (③)
①
AUK Logo
②
Grade & M Code & Year & Week Code
③
Device Code
KSD-I0O012-000
December, 2010 REV. 00
1
SN79Mxxx
◈
Pin Configuration
4
1
2
3
1
2
3
TO-252-3L
1: GND
2: V
IN
3: V
OUT
4: V
IN
TO-220F-3L
1: GND
2: V
IN
3: V
OUT
◈
Product Line-up
Product Name
SN79M05D
SN79M06D
SN79M08D
SN79M12D
SN79M15D
SN79M18D
SN79M24D
SN79M05PI
SN79M06PI
SN79M08PI
SN79M12PI
SN79M15PI
SN79M18PI
SN79M24PI
V
OUT
-5.0V
-6.0V
-8.0V
-12V
-15V
-18V
-24V
-5.0V
-6.0V
-8.0V
-12V
-15V
-18V
-24V
Operating
Temperature
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
-40~125℃
Package
TO-252-3L
TO-252-3L
TO-252-3L
TO-252-3L
TO-252-3L
TO-252-3L
TO-252-3L
TO-220F-3L
TO-220F-3L
TO-220F-3L
TO-220F-3L
TO-220F-3L
TO-220F-3L
TO-220F-3L
KSD-I0O012-000
December, 2010 REV. 00
2
SN79Mxxx
◈
Absolute Maximum Ratings ( Ta = 25℃ )
Limits
Parameter
Symbol
TO-220F-3L
TO-252-3L
-40.0 ( V
O
=-24V )
Input Voltage
V
IN
-35.0 ( V
O
=-5 to -18V )
Power Dissipation
Thermal Resistance Junction to Case
Thermal Resistance Junction to Air
Junction Temperature
Operate Temperature Range
Storage Temperature Range
P
d
R
ΘJC
R
ΘJA
T
J
T
opr
T
stg
2.0
5
65
150
-40 ~ +125
-55 ~ +150
1.3
5
92
W
°C/W
°C/W
℃
℃
℃
V
Unit
Absolute maximum ratings indicate limits beyond which damage to the component may occur. Electrical
specifications do not apply when operating the device outside of its operating ratings. The maximum
allowable power dissipation is a function of the maximum junction temperature, T
J(max)
,
the junction-to-ambient thermal resistance,
θ
JA
, and the ambient temperature, TA.
The maximum allowable power dissipation at any ambient temperature is calculated using:
PD(max) = (T
J(max)
– T
A
) ÷
θ
JA
. Exceeding the maximum allowable power dissipation will result in
excessive die temperature, and the regulator will go into thermal shutdown.
KSD-I0O012-000
December, 2010 REV. 00
3
SN79Mxxx
◈
Electrical characteristics
( V
IN
=-10V, C
IN
= 0.33uF, C
OUT
= 0.1uF, I
OUT
= 350mA, T
J
=0℃~125℃ ; unless otherwise specified )
SN79M05x
Characteristic
Symbol
Test Condition*
Min.
T
J
=25℃
Output Voltage**
V
O
-7.0V
≤
V
IN
≤
-25.0V
5.0mA
≤
I
O
≤
350mA
-7.0V
≤
V
IN
≤
-25.0V
Line Regulation
V
O(
△
VI)
-8.0V
≤
V
IN
≤
-25.0V
Load Regulation
Quiescent Current
V
O(
△
IL)
I
QC
5.0mA
≤
I
O
≤
500mA
T
J
=25℃
-8.0V
≤
V
IN
≤
-25V, I
O
=200mA
Quiescent Current Change
∆I
QC
5.0mA
≤
I
O
≤
350mA
Ripple Rejection
Dropout Voltage
Output Noise Voltage
Short Circuit Current
Temperature coefficient of
Output voltage
RR
V
DROP
V
N
I
SC
-8.0V
≤
V
IN
≤
-18.0V
f=120Hz
I
O
=500mA
10Hz
≤
f
≤
100kHz
V
I
=-35V
I
O
=5.0mA
T
J
=25℃
T
A
=25℃
T
A
=25℃
54
-
-
-
-
-
60
1.1
40
140
-0.5
0.4
-
-
-
-
-
dB
V
uV/ V
O
mA
mV/℃
T
J
=25℃
T
J
=25℃
-
-
-
-
2.0
30
3.0
-
30
100
6.0
0.4
mA
mV
mA
-4.80
-4.75
-
Typ.
-5.0
-5.0
7.0
Max.
-5.20
V
-5.25
50
mV
Unit
△
V
O
/
△
Temp
Pulse testing techniques are used to maintain the junction temperature as close to the ambient
temperature as possible. Thermal effects must be taken into separately.
** This specification applies only for dc power dissipation permitted by absolute maximum ratings.
*
KSD-I0O012-000
December, 2010 REV. 00
4
SN79Mxxx
◈
Electrical characteristics
( V
IN
=-11V, C
IN
= 0.33uF, C
OUT
= 0.1uF, I
OUT
= 350mA, T
J
=0
℃
~125
℃
; unless otherwise specified )
SN79M06x
Characteristic
Symbol
Test Condition*
Min.
T
J
=25℃
Output Voltage**
V
O
-8.0V
≤
V
IN
≤
-25V
5.0mA
≤
I
O
≤
350mA
-8.0V
≤
V
IN
≤
-25.0V
Line Regulation
V
O(
△
VI)
-9.0V
≤
V
IN
≤
-19.0V
Load Regulation
Quiescent Current
V
O(
△
IL)
I
QC
5.0mA
≤
I
O
≤
500mA
T
J
=25℃
-8.0V
≤
V
IN
≤
-25.0V
Quiescent Current Change
∆I
QC
5.0mA
≤
I
O
≤
350mA
Ripple Rejection
Dropout Voltage
Output Noise Voltage
Short Circuit Current
Temperature coefficient of
Output voltage
RR
V
DROP
V
N
I
SC
-9.0V
≤
V
IN
≤
-19.0V
f=120Hz
I
O
=500mA
10Hz
≤
f
≤
100kHz
V
I
=-35V
I
O
=5.0mA
T
J
=25℃
T
A
=25℃
T
A
=25℃
-
54
-
-
-
-
-
60
1.1
50
140
-0.5
0.4
-
-
-
-
-
dB
V
uV/ V
O
mA
mV/℃
T
J
=25℃
T
J
=25℃
-
-
-
-
2.0
30
3.0
-
40
120
6.0
0.4
mA
mV
mA
-5.75
-5.70
-
Typ.
-6.0
-6.0
7.0
Max.
-6.25
V
-6.30
60
mV
Unit
△
V
O
/
△
Temp
Pulse testing techniques are used to maintain the junction temperature as close to the ambient
temperature as possible. Thermal effects must be taken into separately.
** This specification applies only for dc power dissipation permitted by absolute maximum ratings.
*
KSD-I0O012-000
December, 2010 REV. 00
5
