Conduit and
Conduit
Adapters
Anti-Rotation
Device
A Thread
(Table II)

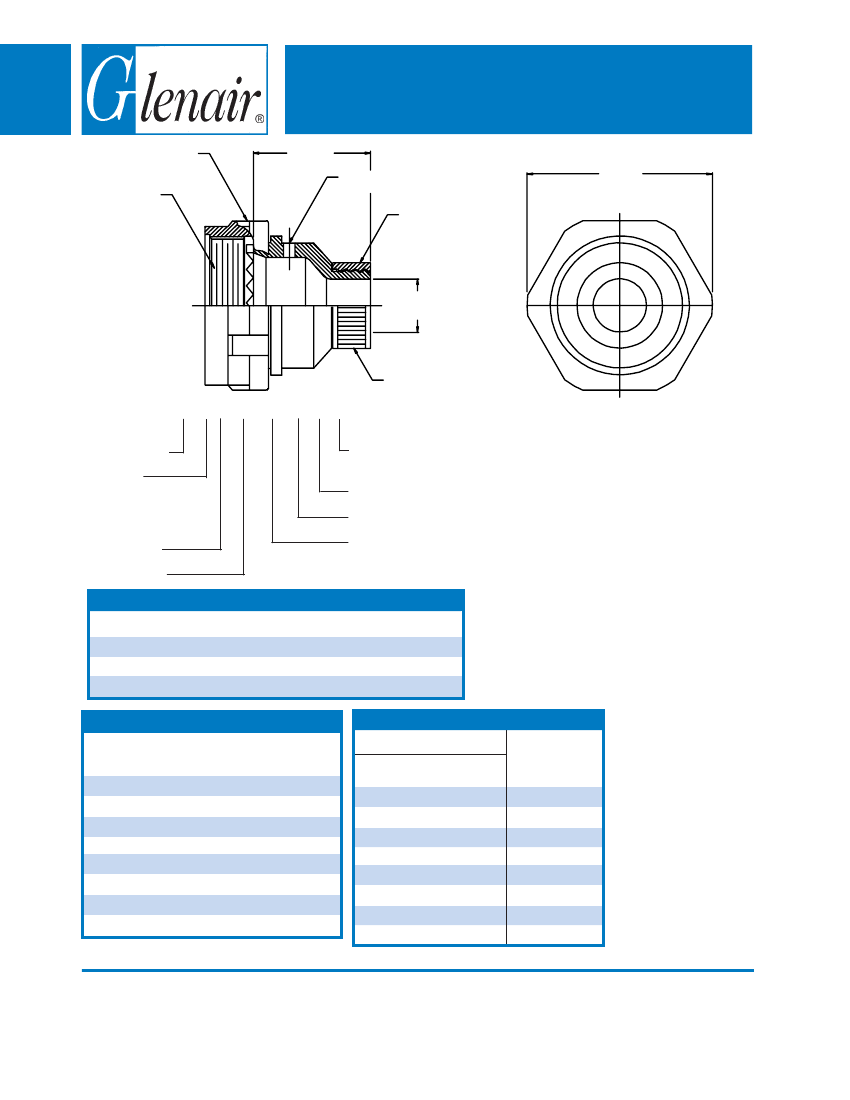

Composite Connector Backshell Adapter for
MIL-DTL-38999 Series lll and IV Fiber Optic Connectors
712-416 - Straight, PEEK Only
2.00
(50.8)
Max
.125 (3.2) Dia Drain Hole Option
(See Part Number Development)
Compression Nut
for PEEK Conduit
B Max
C Entry
Diameter
712 H S 416 XO 17 16 D
Product Series
Connector
Designator,
MIL-DTL-38999,
Series III & IV
Configuration
Basic Number
TABLE I: FINISH
Symbol
XM
XW
XO
Finish Description
Electroless Nickel
Cadmium Olive Drab over Electroless Nickel
No Plating - Base
TABLE II: SHELL SIZE
NOTES:
1. Metric dimensions (mm) are in paren-
theses and are for reference only.
D = Drain Hole
2. Material:
(Omit for none)
Adapter, Coupling and Compression
Conduit Size (See Table III)
Nuts - High-Grade Engineering Thermo-
plastic.
Shell Size (See Table II)
O-Ring - Fluorosilicone or Silicone.
Anti-Rotation Device: Corrosion Resis-
Finish (See Table I)
tant Material.
3. Unless otherwise specified, the
backshell body to be supplied finished
per Table I.
All other components to be supplied
without plating.
Flute Style
Manufacturer's
Option
TABLE III: TUBING SIZE
PEEK Conduit Size
Dash
No.
06
09
12
16
20
24
28
32
Fractional
Size
3/16
9/32
3/8
1/2
5/8
3/4
7/8
1
C
Entry
Dia.
.100 (2.5)
.171 (4.2)
.265 (6.7)
.390 (9.6)
.515 (12.6)
.640 (15.7)
.765 (18.7)
.890 (21.8)
Printed in U.S.A.
Shell
Size
11
13
15
17
19
21
23
25
A Thread
ISO Metric
M15 x 1 - 6H
M18 x 1 - 6H
M22 x 1 - 6H
M25 x 1 - 6H
M28 x 1 - 6H
M31 x 1 - 6H
M34 x 1 - 6H
M37 x 1 - 6H
.98
1.16
1.28
1.41
1.52
1.64
1.77
1.89
B
Max
(24.0)
(28.4)
(32.5)
(35.8)
(38.6)
(41.7)
(43.4)
(48.0)
© 2002 Glenair, Inc.
CAGE Codes 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-8
Custom Conduit Assemblies
Wired, Terminated and Tested–Ready for Use

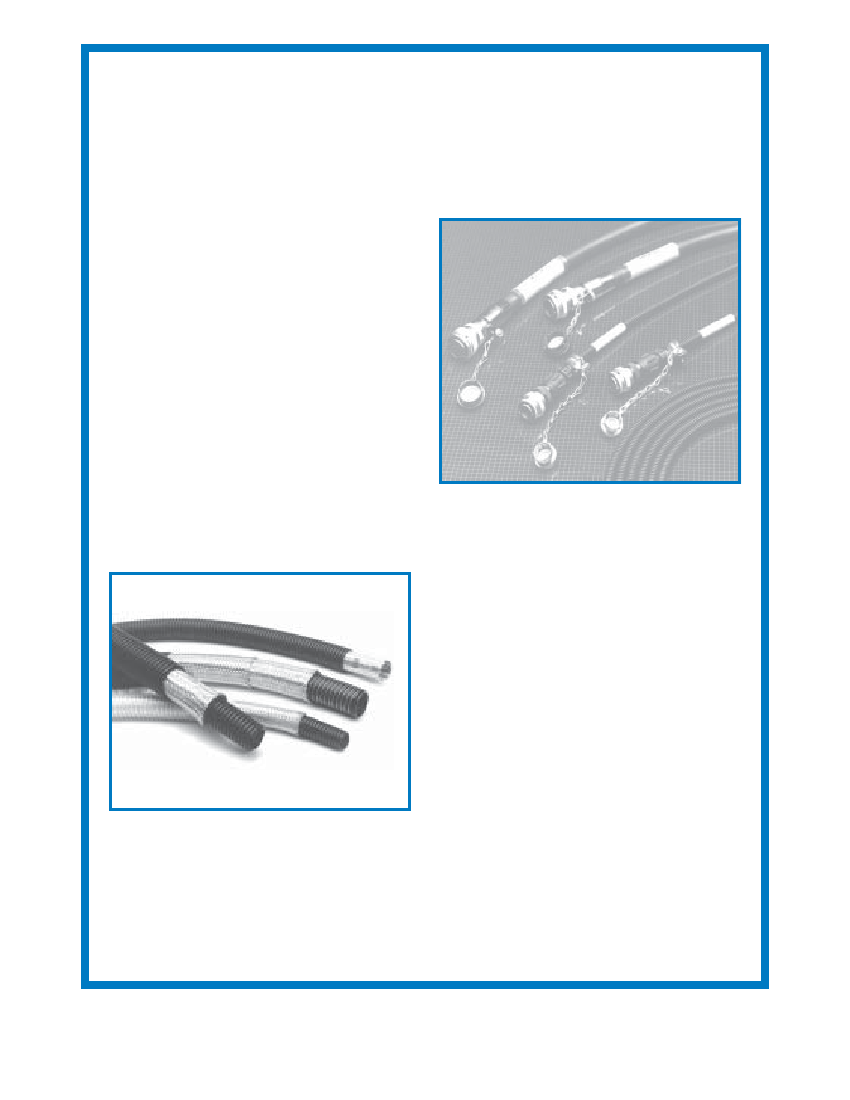

Glenair Custom
Fiber Optic Conduit
Assemblies
Glenair's complete capability in intercon-
nect systems extends to the design, manufac-
ture and test of custom conduit assemblies -
built to your exact specifications. Our turn-key
service includes everything from engineering
and design assistance to the on-time delivery
of completely wired, terminated and tested
assemblies—ready for immediate use.
Glenair's has established an enviable repu-
tation for consistently high quality. Regard-
less of simplicity or complexity, or whether
quantities are large or small, the same high
standards of quality assurance are applied
uniformily. Our zero-defect quality systems
source inspection.
Glenair has built electrical, optical and
hybrid assemblies for military, commercial
and industrial customers since the 1950's.
Our expertise extends from simple point to
point assemblies to complex multi-branch
and fiber optic systems. Today, we're build-
ing everything from overmolded fiber optic
assemblies for marine use, to wheel-well
assemblies for the world's leading aircraft
manufacturers.
Our in-house braiding and sleeving
capabilites enable us to build both repairable
and non-repairable assemblies suitable for
use in harsh electromagnetic and environ-
mental conditions. We offer a complete range
of jacketing, shielding and braided protective
covering options including NBC (nuclear, bio-
logical, chemical) materials.
From unique, one-of-a-kind conduit system,
to high volume mass production needs, Glenair
can provide you with consistent quality, reli-
able service and cost-effective wire media
protection solutions.
and strict adherance to military and commer-
cial testing standards ensures each conduit
assembly is throughly inspected at each stage
of the assembly process. Each system under-
goes a final inspection process which includes
appearance, identification, dielectric, conti-
nuity, and insulation tests conducted on a
100% basis in preparation for final customer
