SDB1060DI
Schottky Barrier Rectifier
DUAL COMMON CATHODE SCHOTTKY RECTIFIER
Features
Low forward voltage drop and leakage current
Low power loss and High efficiency
High surge capability
Dual common cathode rectifier
“Green” device and RoHS compliant device

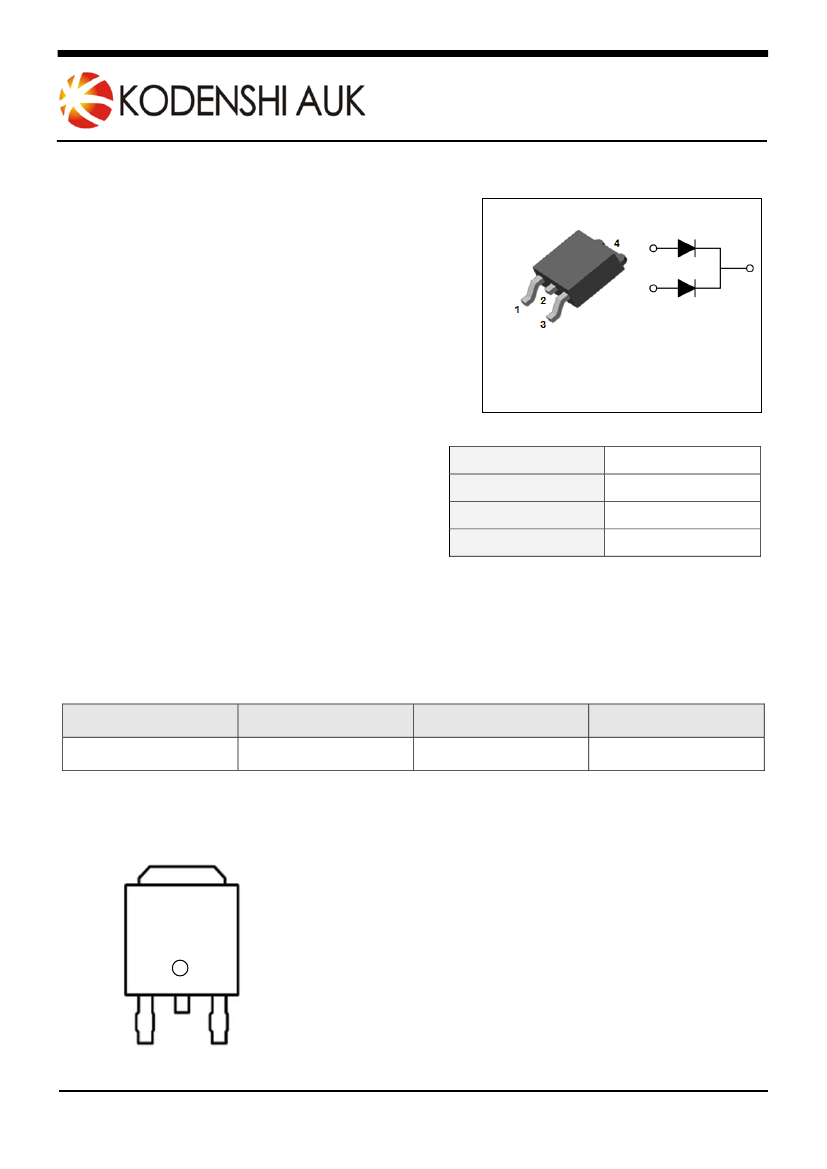

Pin Configuration
Pin 1, 3: Anode
Pin 2, 4: Cathode
3
1
2, 4
Applications
Power supply - Output rectification
Converter
Free-wheeling diode
Reverse battery protection
Power inverters
TO-252
TO-252
Product Characteristics
I
F(AV)
V
RRM
V
FM
at 125℃
I
FSM
2 X 5A
60V
0.55V
60A
Description
The SDB1060DI has two schottky barriers arranged in a common cathode configuration. Typical
applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery
protection.
Ordering Information
Device
SDB1060DI
Marking Code
SDB1060DI
Package
TO-252
Packaging
Tape & Reel
Marking Information
SDB1060DI = Specific Device Code
SDB1060DI
YWW
YWW = Year & Week Code Marking
-. Y = Year Code
-. WW = Week Code
KSD-D6O008-004
1
SDB1060DI
Absolute Maximum Ratings
(Limiting Values)
Characteristic
Maximum repetitive reverse voltage
Maximum working peak reverse voltage
Maximum DC blocking voltage
per diode
Maximum average forward rectified current
total device
Peak forward surge current 8.3ms single half sine-wave
superimposed on rated load per diode
Storage temperature range
Maximum operating junction temperature
I
F(AV)
Symbol
V
RRM
V
RWM
V
R
Value
60
5
A
10
60
-45℃ to +150℃
150
A
℃
℃
Unit
V
I
FSM
T
stg
T
j
Thermal Characteristics
Characteristic
per diode
Maximum thermal resistance junction to case
total device
R
th(j-c)
Symbol
Value
6.0
5.6
Unit
℃/W
Electrical Characteristics
(Per Diode)
Characteristic
Symbol
Test Condition
I
FM
= 3A
Peak forward voltage drop
V
FM
(1)
Min.
-
-
-
-
-
-
-
Typ.
-
-
-
-
-
-
180
Max.
0.55
0.50
0.65
0.55
0.5
50
-
Unit
V
V
V
V
mA
mA
pF
T
j
=25℃
T
j
=125℃
T
j
=25℃
T
j
=125℃
T
j
=25℃
T
j
=125℃
I
FM
= 5A
Reverse leakage current
Junction capacitance
I
RM (1)
C
j
V
R
= V
RRM
V
R
= 5V
DC
, f=1MHz
Note :
(1) Pulse test :
t
P
≤380
㎲,
Duty cycle≤2%
To evaluate the conduction losses use the following equation: P
F
= 0.36 I
F(AV)
+ 0.043 I
F2(RMS)
I
FM
Forward Voltage : V
FM
= V
to
+ rd I
FM
2 I
F(AV)
rd
Conduction Loss : P
F
= V
to
I
F(AV)
+ rd
I
F2(RMS)
I
F(AV)
V
FM
V
to
KSD-D6O008-004
2
SDB1060DI

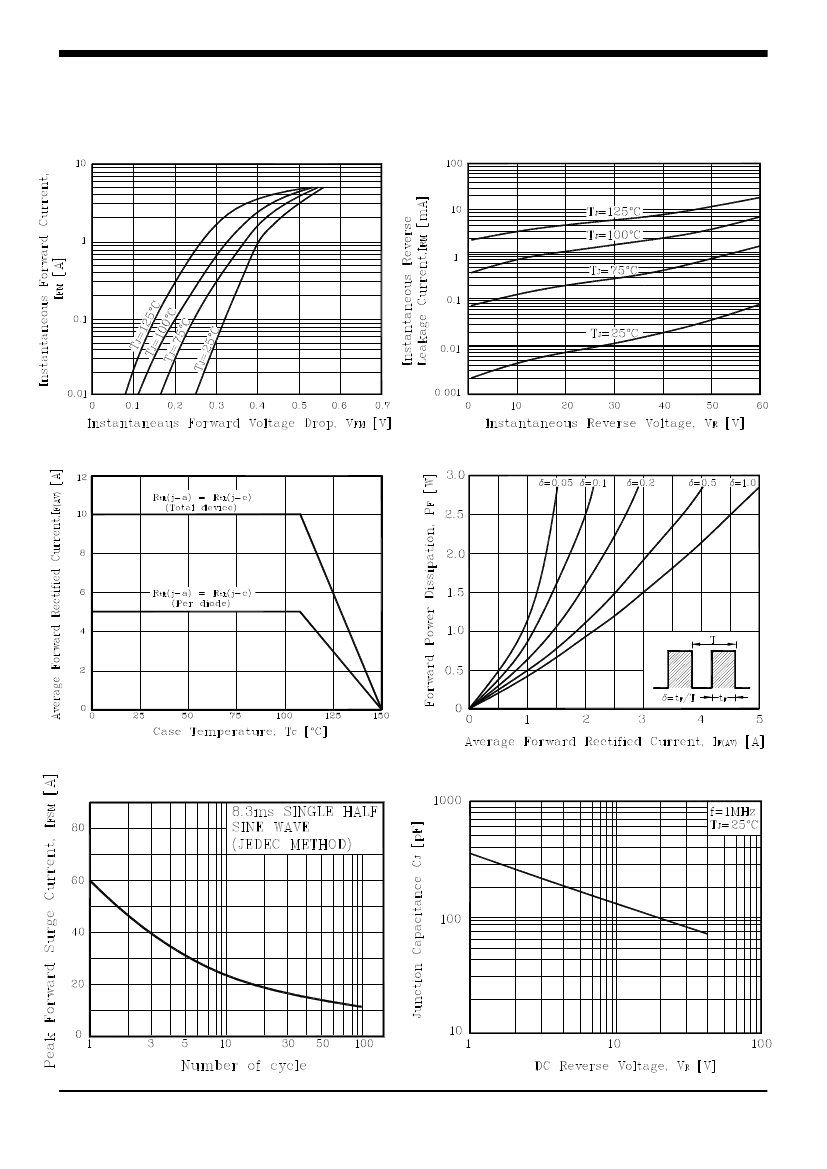

Rating and Characteristic Curves
Fig. 1) Typical Forward Characteristics
(Per diode)
Fig. 2) Typical Reverse Characteristics
(Per diode)
Fig. 3) Maximum Forward Derative Curve
Fig. 4) Forward Power Dissipation
(Per diode)
Fig. 5) Maximum Non-Repetitive Peak Forward
Surge Current
(Per diode)
Fig. 6) Typical Junction Capacitance
(Per diode)
KSD-D6O008-004
3
SDB1060DI
Package Outline Dimension
※
Recommended Land Pattern [unit: mm]
7.00
1.50
4.60
2.50
7.00
KSD-D6O008-004
4
SDB1060DI
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-D6O008-004
