800-013-03: DescriptionCircular Connector, Stainless Steel, Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size188KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

800-013-03 Overview

Circular Connector, Stainless Steel, Male, Solder Terminal, Receptacle

800-013-03 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	POLARIZED, MAX CONTACTS (SERIES)=37
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	800-013
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	5; 6; 7; 8; 9; 10; 12
Termination type	SOLDER

Preview

Download Datasheet

View All

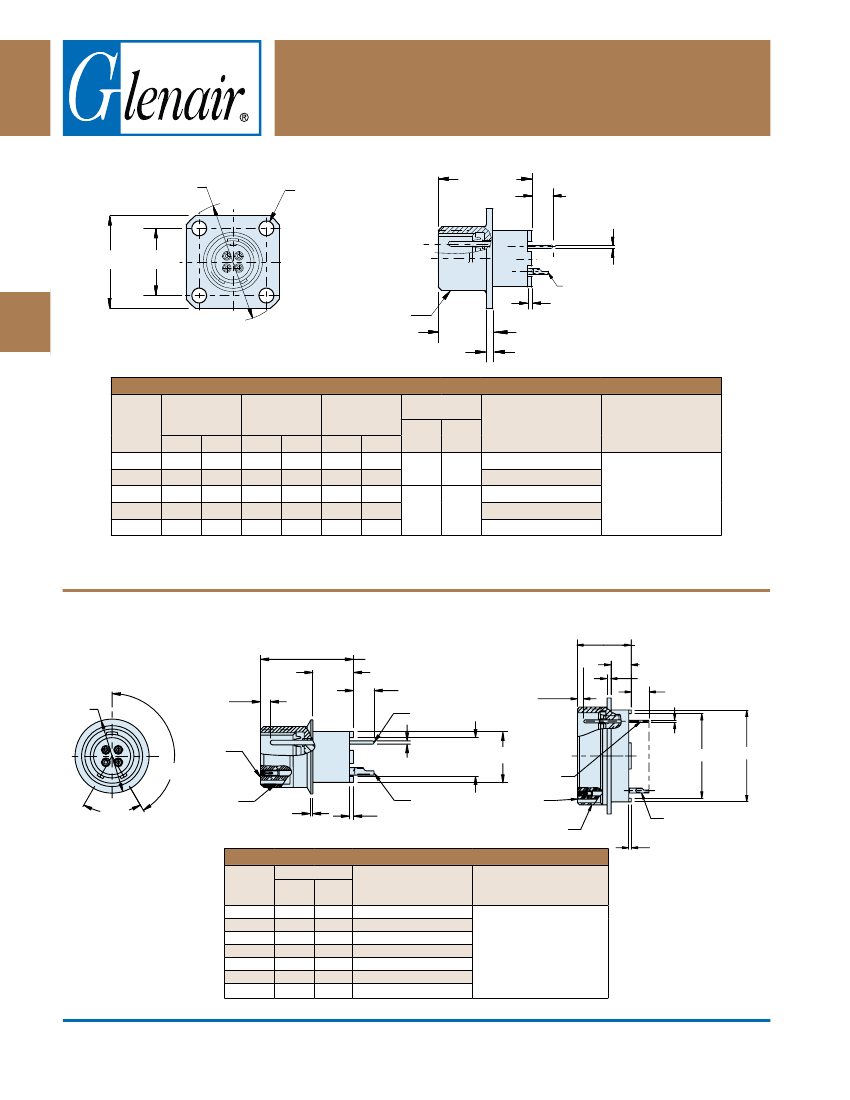

800-013-02 and 800-013-03

Series 800 Mighty Mouse Hermetic Receptacles

Square Flange Mount with UN Mating Thread

Connector Dimensions

.725 (18.4)

MAX

Series 80

Mighty Mouse

ØC

A SQ

B BSC

800-013-02 square Flange Dimensions

4X Ø D

THRU HOLE

.125 (3.2) MIN

ØF

SOLDER CUP

C

shell

size

7

8

9

10

12

A sq

In.

mm.

.650

.710

.938

1.031

16.51

18.03

23.83

26.19

E THREAD

.039 (.10) SHELL SIZE 5 & 6

.050 (1.27) SHELL SIZE 7 THRU 12

4X .025 (.64) STANDOFF

.320 (8.1) SHELL SIZE 5 & 6

.460 (11.7) SHELL SIZE 7 THRU 12

800-013-02 squARE FLANGE hERMETIC RECEPTACLE DIMENsIoNs

B BsC

In.

mm.

.483

.542

.719

.812

Ø C

In.

mm.

21.08

23.83

31.75

34.93

Ø D

± .005 ± 0.13

.096

.091

.130

.126

2.44

2.31

3.30

3.20

In.

mm.

E Threads

Mating

.4375-28 UNEF-2A

.5000-32 UN-2A

.5625-32 UN-2A

.6250-32 UN-2A

.7500-28 UN-2A

Ø F

PC TAIL DIA.

± .002 (0.05)

size #23

.020 (0.51)

size #20

.026 (0.66)

size #16

.062 (1.57)

size #12

.094 (2.34)

12.27

.830

13.77

.938

18.26 1.250

20.62 1.375

800-013-03 solder Mount Dimensions

shell size 5 and 6

.180

(4.6)

ØM

1

4

2

3

shell size 7 thru 12

.575 (14.6) MAX PIN

.675 (17.1) MAX SOCKET

.125 (3.2) MIN

PC TAIL

ø DD

.060 (1.5)

PIN CONTACT

LOCATION

.060 (1.5)

PIN CONTACT

LOCATION

150°

SOCKET

INSERT

B THREAD

.525 (13.3) MAX PINS

.650 (16.5) MAX SOCKETS

.180 (4.6)

.039 (1.0)

.125 (3.2)

MIN

.022

ø .018

(0.6) ø DD

(0.5)

ø .022/.018 (0.6/0.5)

SOLDER CUP

.025 (0.6) HEIGHT

4X 080 WIDTH

ø CC

PC TAIL

CONTACT

SOCKET

INSERT

B THREAD

ø CC

60°

.013 (0.3)

SOLDER CUP CONTACT

4X .025 HEIGHT

4X 080 WIDTH

shell

size

5

6

7

8

9

10

12

Ø A

In.

mm.

DIMENsIoNs

B Threads

Ø C PC TAIL DIA.

± .002 (0.05)

.400 10.16 .3125-28 UN-2A

size #22

.020 (0.51)

.455 11.56 .3750-28 UN-2A

size #20

.520 13.21 .4375-28 UNEF-2A

.026 (0.66)

.650 16.51 .5000-32 UN-2A

size #16

.764 19.41 .5625-32 UN-2A

.062 (1.57)

.775 19.69 .6250-32 UN-2A

size #12

.858

.094

notice.

Dimensions in

21.79

(millimeters)

UN-2A

Inches

.7500-28

are subject to change without

(2.34)

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

C-26

E-Mail: sales@glenair.com

800-013-03 Related Products

	800-013-03	800-013-02
Description	Circular Connector, Stainless Steel, Male, Solder Terminal, Receptacle	Circular Connector, Stainless Steel, Male, Solder Terminal, Receptacle
Maker	Glenair	Glenair
Reach Compliance Code	compliant	compliant
Other features	POLARIZED, MAX CONTACTS (SERIES)=37	POLARIZED, MAX CONTACTS (SERIES)=37
Back shell type	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	MALE	MALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
empty shell	NO	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT	CORROSION RESISTANT; ENVIRONMENT RESISTANT
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	800-013	800-013
Mixed contacts	NO	NO
Installation type	PANEL	PANEL
Options	HERMETIC	HERMETIC
Shell surface	NICKEL PLATED	NICKEL PLATED
Shell material	STAINLESS STEEL	STAINLESS STEEL
Housing size	5; 6; 7; 8; 9; 10; 12	5; 6; 7; 8; 9; 10; 12
Termination type	SOLDER	SOLDER
