Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105
long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty
SPECIFICATION
MODEL
OUTPUT NUMBER
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
RD-125A
CH1
5V
7.7A
Note.6
2 ~ 15A
Note.6
130.9W
RD-125B
CH2
12V
7.7A
0.5 ~ 10A
120mVp-p
7.0%
2.0%
4.0%
1200ms, 30ms/115VAC at full load
248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
85%
30ms/115VAC at full load
CH1
5V
4.6A
2 ~ 10A
133.4W
80mVp-p
CH1: 4.75 ~ 5.5V
5.0%
1.0%
3.0%
120mVp-p
7.0%
2.0%
4.0%
CH2
24V
4.6A
0.4 ~ 5A
RIPPLE & NOISE (max.)
Note.2
80mVp-p
CH1: 4.75 ~ 5.5V
VOLTAGE TOLERANCE
Note.3
5.0%
Note.4
Note.5
1.0%
3.0%
500ms, 20ms/230VAC
25ms/230VAC
47 ~ 63Hz
82%
3A/115VAC
2A/230VAC
COLD START 40A/230VAC
<2mA / 240VAC
110 ~ 150% rated output power
88 ~ 132VAC / 176 ~ 264VAC selected by switch
Protection type : Hiccup mode, recovers automatically after fault condition is removed
CH1: 5.75 ~ 6.75V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
-25 ~ +70
(Refer to output load derating curve)
20 ~ 90% RH non-condensing
-40 ~ +85 , 10 ~ 95% RH
0.03%/ (0 ~ 50 )on CH1 output
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1 approved
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
/ 70% RH
SAFETY &
EMC
(Note 7)
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
EMI CONDUCTION & RADIATION
Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT
EMS IMMUNITY
MTBF
Compliance to EN61000-3-2,-3
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
232.4Khrs min. MIL-HDBK-217F (25
199*98*38mm (L*W*H)
0.7Kg; 20pcs/15Kg/0.8CUFT
)
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
6. Each output can work within current range. But total output power can't exceed rated output power.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
File Name:RD-125-SPEC 2010-10-18

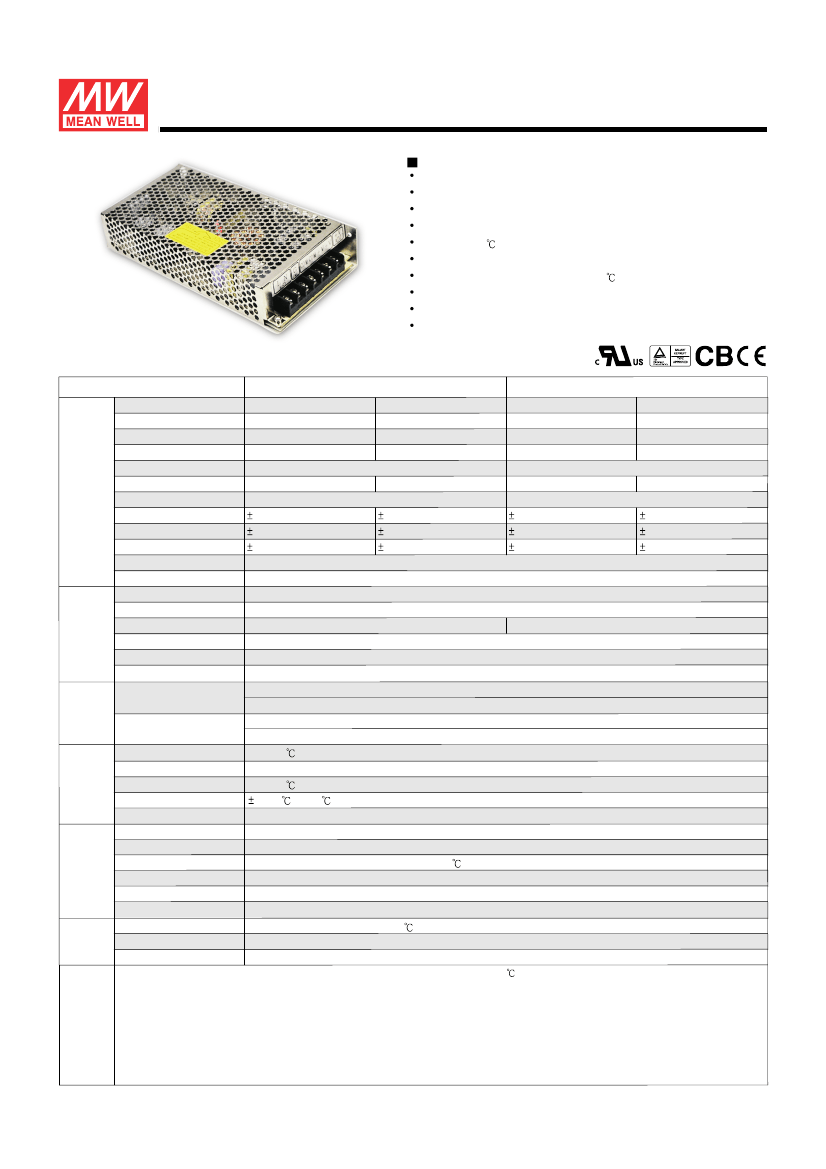

125W Dual Output Switching Power Supply
Features :
RD-125
series
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105
long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty
SPECIFICATION
MODEL
OUTPUT NUMBER
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
RD-125-1224
CH1
12V
3.7A
Note.6
1 ~ 7A
Note.6
133.2W
RD-125-1248
CH2
24V
3.7A
0.4 ~ 5A
200mVp-p
+8,-5%
1.0%
5.0%
CH1
12V
2.3A
1 ~ 7A
138W
120mVp-p
CH1: 11.4 ~ 13.2V
2.0%
0.5%
1.0%
240mVp-p
+8,-5%
1.0%
5.0%
CH2
48V
2.3A
0.2 ~ 2.5A
RD-125-2448
CH1
24V
2A
0.5 ~ 4A
144W
200mVp-p
CH1: 22.8 ~ 26.4V
1.0%
0.5%
1.0%
240mVp-p
4.0%
1.0%
3.0%
CH2
48V
2A
0.2 ~ 2.5A
RIPPLE & NOISE (max.)
Note.2
120mVp-p
CH1: 11.4 ~ 13.2V
VOLTAGE TOLERANCE
Note.3
2.0%
Note.4
Note.5
0.5%
1.0%
500ms, 20ms/230VAC
25ms/230VAC
47 ~ 63Hz
85%
1200ms, 30ms/115VAC at full load
248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
86%
30ms/115VAC at full load
88 ~ 132VAC / 176 ~ 264VAC selected by switch
86%
3A/115VAC
2A/230VAC
COLD START 40A/230VAC
<2mA / 240VAC
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
CH1: 13.8 ~ 16.2V
CH1: 13.8 ~ 16.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
-25 ~ +70
(Refer to output load derating curve)
20 ~ 90% RH non-condensing
-40 ~ +85 , 10 ~ 95% RH
0.03%/ (0 ~ 50 )on CH1 output
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1 approved
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
/ 70% RH
CH1: 27.6 ~ 32.4V
SAFETY &
EMC
(Note 7)
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
EMI CONDUCTION & RADIATION
Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT
EMS IMMUNITY
MTBF
Compliance to EN61000-3-2,-3
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
218.2Khrs min. MIL-HDBK-217F (25
199*98*38mm (L*W*H)
0.7Kg; 20pcs/15Kg/0.8CUFT
)
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
6. Each output can work within current range. But total output power can't exceed rated output power.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
File Name:RD-125-SPEC 2010-10-18
125W Dual Output Switching Power Supply
Features :
RD-125
series
Protections:Short circuit/Overload/Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105
long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty
SPECIFICATION
MODEL
OUTPUT NUMBER
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
VOLTAGE TOLERANCE
Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
Note.4
Note.5
RD-125-2412
CH1
24V
3.7A
Note.6
0.5 ~ 5A
Note.6
133.2W
RD-125-4812
CH2
12V
3.7A
1 ~ 7A
120mVp-p
10%
1.0%
5.0%
30ms/115VAC at full load
CH1
48V
2.3A
0.3 ~ 2.5A
138W
240mVp-p
CH1: 45.6 ~ 52.8V
2.0%
0.5%
1.0%
120mVp-p
10%
1.0%
5.0%
CH2
12V
2.3A
1 ~ 7A
RD-125-4824
CH1
48V
2A
0.3 ~ 2.5A
144W
240mVp-p
CH1: 45.6 ~ 52.8V
1.0%
0.5%
1.0%
240mVp-p
8.0%
1.0%
5.0%
CH2
24V
2A
0.5 ~ 4A
RIPPLE & NOISE (max.)
Note.2
200mVp-p
CH1: 22.8 ~ 26.4V
2.0%
0.5%
1.0%
500ms, 20ms/230VAC
25ms/230VAC
47 ~ 63Hz
85%
1200ms, 30ms/115VAC at full load
248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
86%
88 ~ 132VAC / 176 ~ 264VAC selected by switch
86%
3A/115VAC
2A/230VAC
COLD START 40A/230VAC
<2mA / 240VAC
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
CH1: 55.2 ~ 64.8V
CH1: 27.6 ~ 32.4V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
-25 ~ +70
(Refer to output load derating curve)
20 ~ 90% RH non-condensing
-40 ~ +85 , 10 ~ 95% RH
0.03%/ (0 ~ 50 )on CH1 output
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1 approved
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
/ 70% RH
CH1: 55.2 ~ 64.8V
SAFETY &
EMC
(Note 7)
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
EMI CONDUCTION & RADIATION
Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT
EMS IMMUNITY
MTBF
Compliance to EN61000-3-2,-3
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
232.4Khrs min. MIL-HDBK-217F (25
199*98*38mm (L*W*H)
0.7Kg; 20pcs/15Kg/0.8CUFT
)
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
6. Each output can work within current range. But total output power can't exceed rated output power.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.

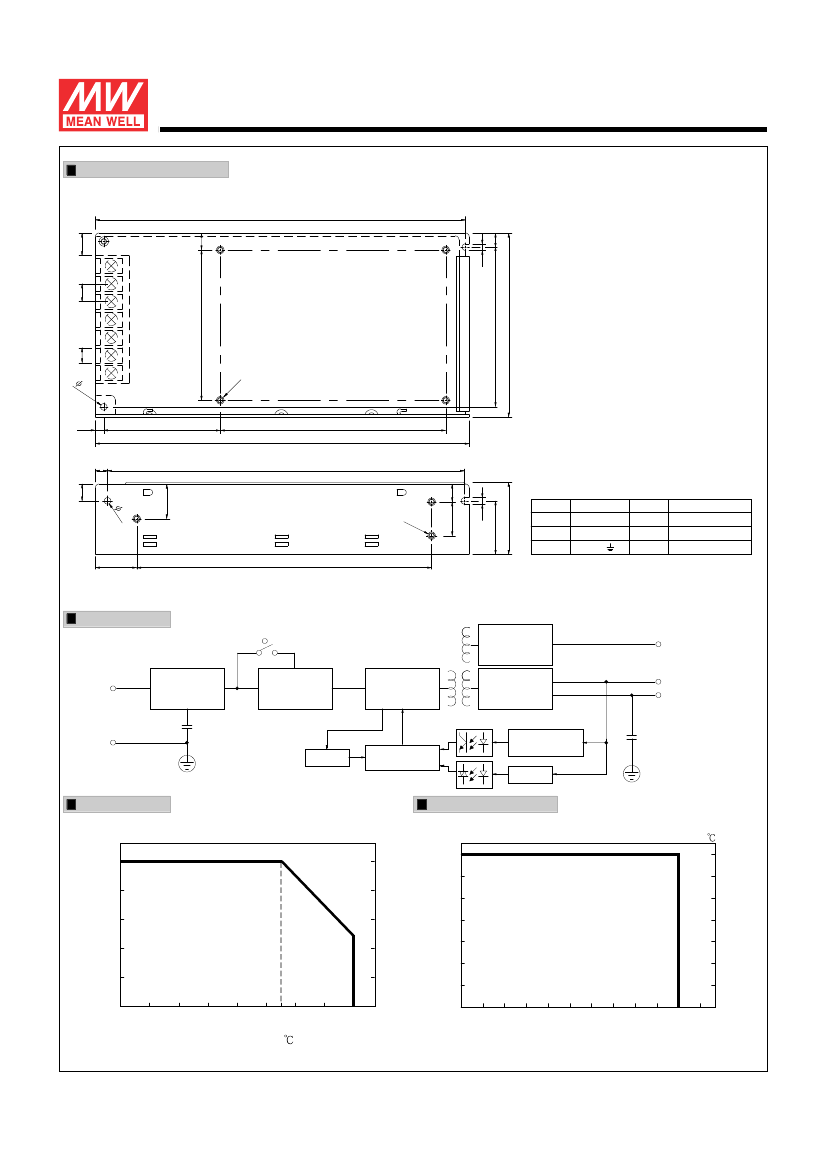

This is a program for an AC signal square wave generator written in PIC. There is a circuit diagram. I hope it will be helpful to you. In addition, there is a paragraph:
DECF OPTION_REG
MOV F07H
AND W...
Any attempt to change your biological clock will leave your body with inexplicable diseases. It will be too late to regret it 20 or 30 years later. 1. 9-11 pm is the time for the immune system (lymp...
I am a beginner. I read a book about WINCE, but I still have many questions. The first question is, what is PB4.2 used for? What are its application steps? The second question is, how to rotate WINCE ...
This is a pair of very strange shoes, with four "long legs" added to the ordinary sole. These four long legs are made of very hard materials. Of course, this kind of shoes is not designed for ordinary...
Breaking News: Get your free copy of " Keithley's 2012 Test and Measurement Products Catalog CD (English Version) " !Keithley's 2012 Test and Measurement Products Catalog CD (English version) contains...
The core of a machine vision system is image acquisition and processing. All information comes from images, and image quality is crucial to the entire vision system. A good image can improve the st...[Details]
There are many different ways of human-computer interaction. The more common ones are listed below:
Mouse interaction: Using a mouse to operate a computer and interact was the most common human...[Details]
Flip-chip and ball grid array (BGA) are two widely used packaging technologies in the electronics industry. Each has its own advantages and limitations, and in some cases, they can complement each ...[Details]
EtherCAT (Ethernet for Control Automation Technology) is a real-time industrial fieldbus communication protocol based on an Ethernet-based development framework. EtherCAT is one of the fastest indu...[Details]
Is electromagnetic radiation from electric vehicles harmful to the human body? Recently, the issue of electromagnetic radiation from electric vehicles has garnered widespread attention. However, pu...[Details]
ISP devices, such as field programmable devices (FPGAs and CPLDs), do not require a programmer. Using programming kits provided by the device manufacturer, they employ a top-down modular design app...[Details]
What is "Car Electronic Fence"
Fleet managers can define a graphical area (regular or irregular) or divide it into administrative zones in Yamei Technology's vehicle backend management system ...[Details]
Today's security industry has entered the era of massive networking. Many enterprises, especially financial institutions, have established multi-level video surveillance networking platforms. Lever...[Details]
Definition of interactive projection system:
Interactive projection systems, also known as multimedia interactive projection, are available in floor, wall, and tabletop interactive projection....[Details]
With the rapid adoption of smart electric vehicles, automotive chips are evolving from auxiliary control units to the foundation of the entire vehicle's intelligence. Their applications extend from...[Details]
According to foreign media reports, BMW has just been granted a patent for a screen that could cover the entire roof. BMW hopes to transform at least a portion of the vehicle's headliner into a dis...[Details]
Recently, Tesla released the "Tesla Car Voice Assistant Terms of Use", announcing that the car voice assistant will be connected to the Doubao large model (Skylark large model) and DeepSeek Chat pr...[Details]
The automotive industry in 2025 is undergoing a thorough intelligent reshuffle.
Geely wants to make changes in the field of AI cockpits: in the future, there will be no traditional smart...[Details]
As the scale and business applications of national e-government networks continue to expand, the data and services transmitted over them are becoming increasingly sensitive and critical. To protect...[Details]
Spark plugs are an indispensable device for engines. As the saying goes, without spark plugs, the engine cannot work properly. The serious consequence is that when driving at high speeds, the engin...[Details]
Microchip MCU
京公网安备 11010802033920号
EEWORLD
