SBT3904U
NPN Silicon Transistor
Descriptions
•
Small signal application
•
Switching application

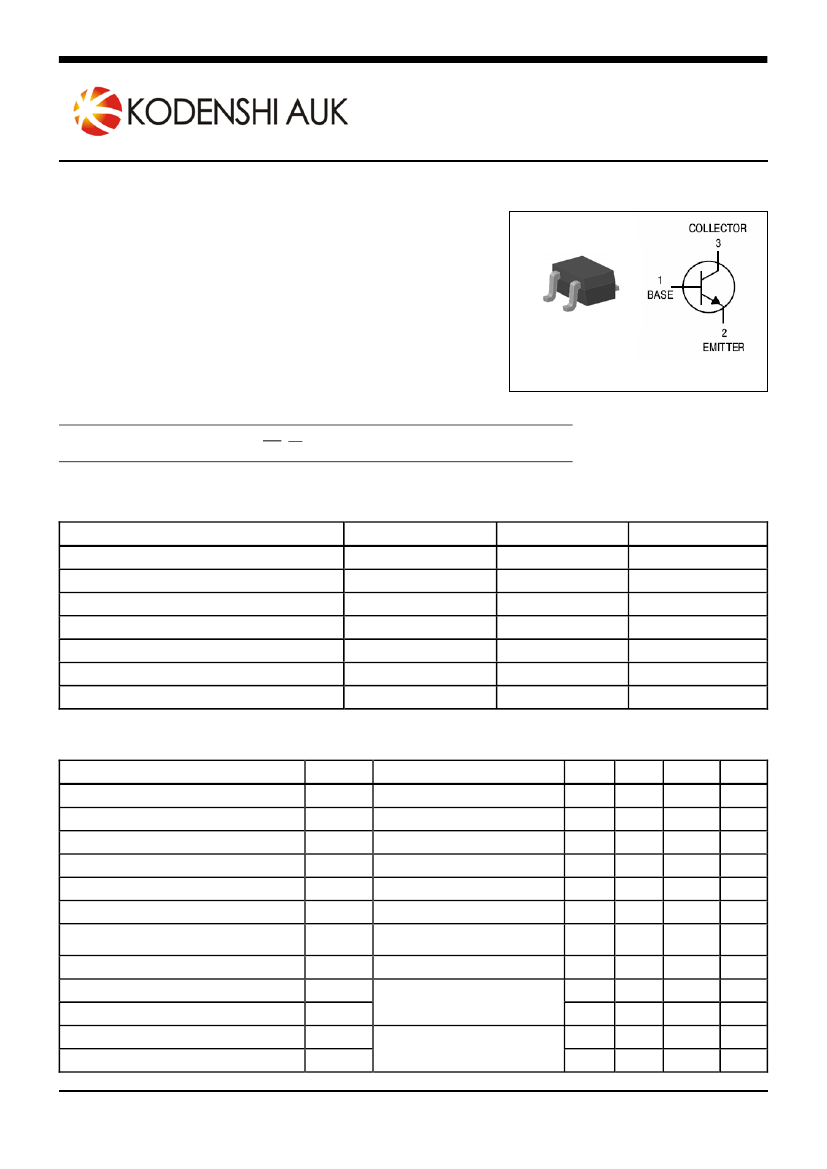

PIN Connection
Features
•
Low V
CE(SAT)
: 0.3V max @ I
C
=50
㎃
•
High speed switching : t
f
=50
㎱
max @ I
C
=10
㎃
•
Complementary pair with SBT3906U
1
2
3
Ordering Information
Type NO.
SBT3904U
Marking
1A
□
① ②
①Device
Code
②
Year&Week Code

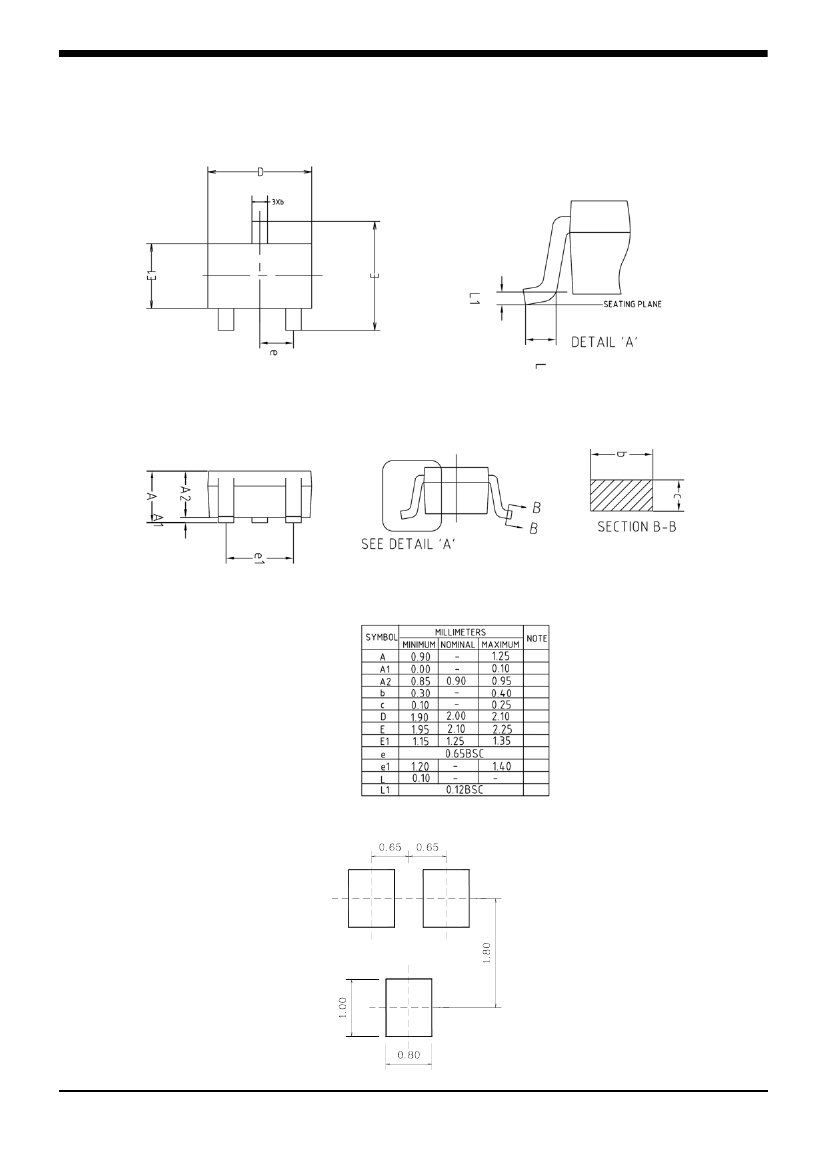

SOT-323
Package Code
SOT-323
Absolute maximum ratings
Characteristic
Collector-Base voltage
Collector-Emitter voltage
Emitter-base voltage
Collector current
Collector Power dissipation
Junction temperature
Storage temperature range
Ta=25°C
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C*
T
J
T
stg
Rating
60
40
6
200
350
150
-55~150
Unit
V
V
V
㎃
½
℃
℃
* : Device mounted on 99.5% alumina 10×8×0.6mm
Electrical Characteristics
Characteristic
Collector-Base breakdown voltage
Collector-Emitter breakdown voltage
Emitter-Base breakdown voltage
Collector cut-off current
DC current gain
Collector-Emitter saturation voltage
Transition frequency
Collector output capacitance
Turn on delay time
Rise time
Storage time
Fall Time
Ta=25°C
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CEX
h
FE
V
CE(sat)
f
T
C
ob
t
d
t
r
t
s
t
f
Test Condition
I
C
=10μA, I
E
=0
I
C
=1mA, I
B
=0
I
E
=10μA, I
C
=0
V
CE
=30V, V
BE
=-3V
V
CE
=1V, I
C
=10mA
I
C
=50mA, I
B
=5mA
V
CE
=20V, I
C
=10mA,
f=100MHz
V
CB
=5V, I
E
=0, f=1MHz
V
CC
=3V, V
BE(off)
=0.5V
I
C
=10mA, I
B1
=1mA
V
CC
=3V,I
C
=10mA,
I
B1
=-I
B2
=1mA
Min. Typ. Max.
60
40
6
-
100
-
300
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
50
300
0.3
-
4
35
35
200
50
Unit
V
V
V
㎁
-
V
㎒
㎊
㎱
㎱
㎱
㎱
KSD-T5D005-000
1

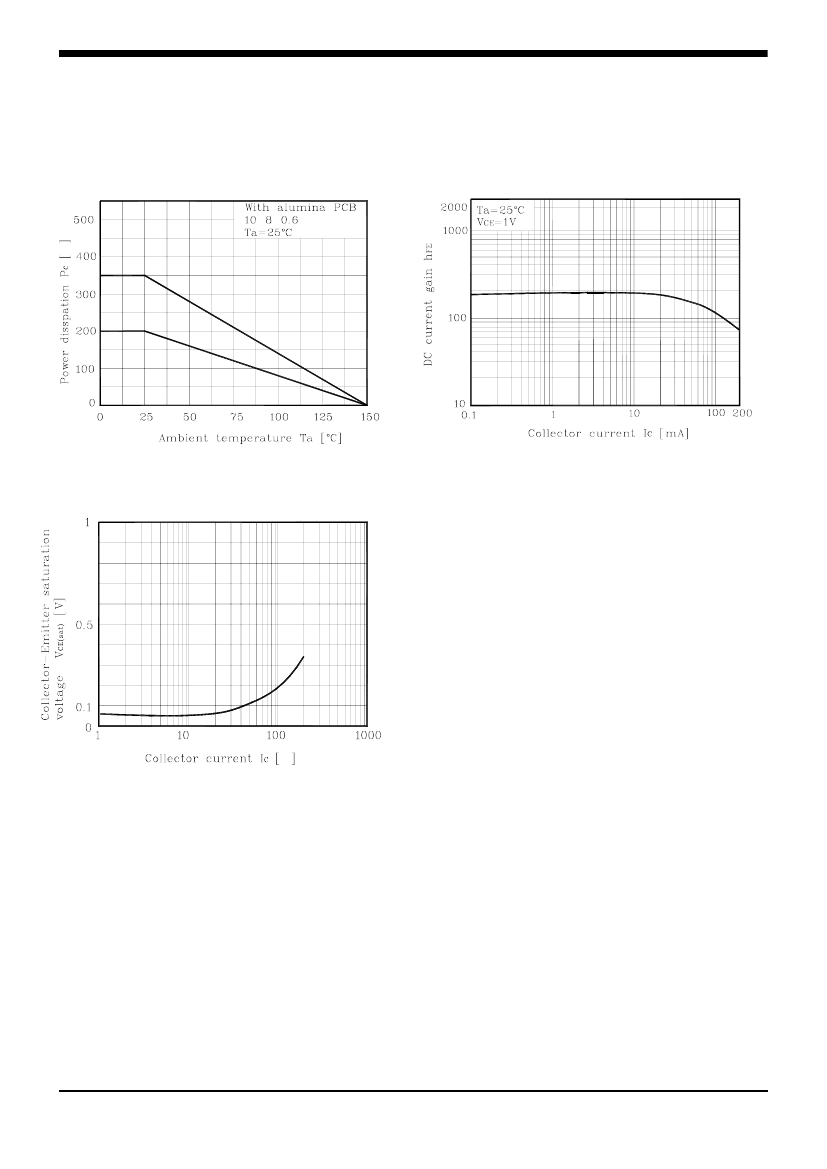

SBT3904U
These AUK products are intended for usage in general electronic equipment(Office and
communication equipment, measuring equipment, domestic electrification, etc.).
Please make sure that you consult with us before you use these AUK products in equipm-
ents which require high quality and/or reliability, and in equipments which could have
major impact to the welfare of human life(atomic energy control, airplane, spaceship, traffic
signal, combustion central, all types of safety device, etc.).
AUK cannot accept liability to any damage which may occur in case these AUK products
were used in the mentioned equipments without prior consultation with AUK.
KSD-T5D005-000
