3308L-P08-R: DescriptionDUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size234KB，6 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric Compare View All

3308L-P08-R Overview

DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8

3308L-P08-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD
Parts packaging code	SOIC
package instruction	TSSOP, TSSOP8,.25
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.5 µA
Maximum bias current (IIB) at 25C	0.5 µA
Nominal Common Mode Rejection Ratio	90 dB
frequency compensation	YES
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDSO-G8
length	4.4 mm
low-dissonance	NO
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Nominal slew rate	1 V/us
Maximum slew rate	5 mA
Supply voltage upper limit	15 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1300 kHz
Minimum voltage gain	25110
width	3.05 mm

Preview

Download Datasheet

View All

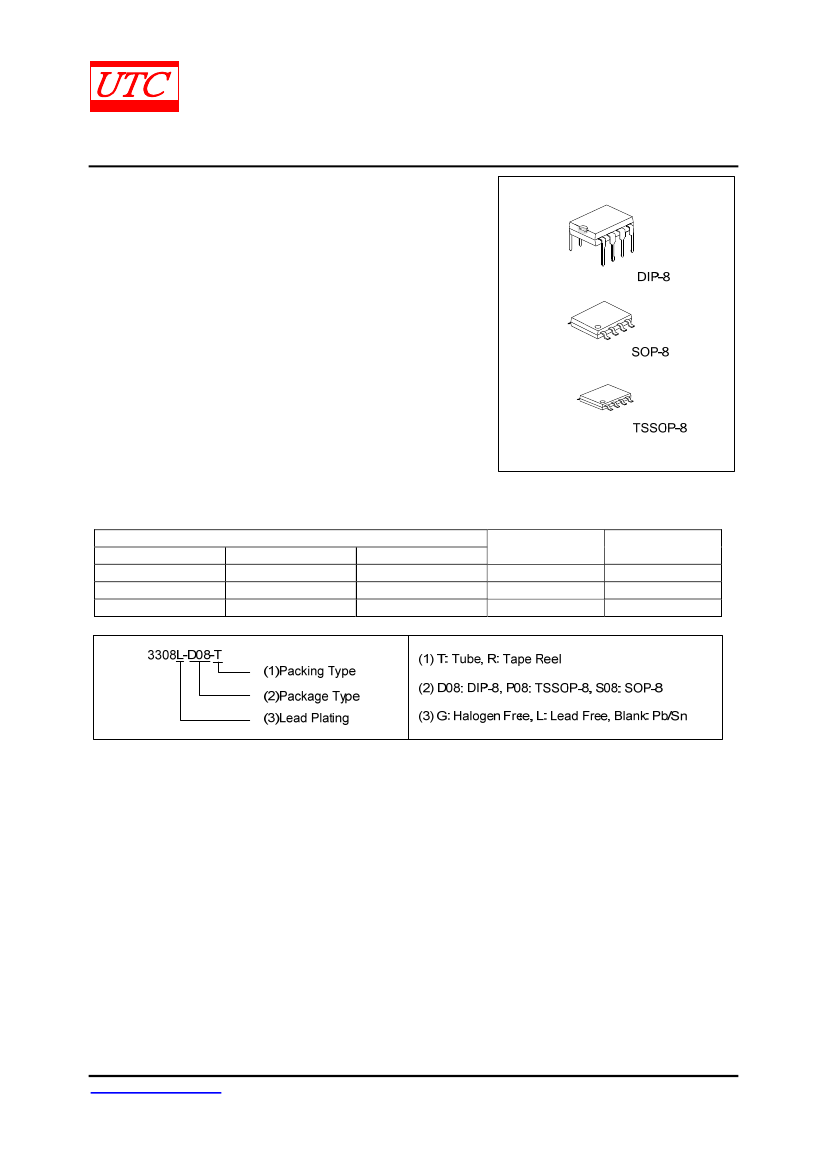

UNISONIC TECHNOLOGIES CO., LTD

3308

DUAL HIGH CURRENT

OPERATIONAL AMPLIFIER

DESCRIPTION

The UTC

3308

integrated circuit is a high gain, high output

current, high output voltage swing dual operational amplifier

capable of driving 150mA, specially for CD ROM, DVD devices.

LINEAR INTEGRATED CIRCUIT

FEATURES

*Single Supply

*Operating Voltage

(+3V~+15V) (±1.5V~±7.5V)

*High Output Current (150mA)

*High Frequency Noise Rejection

*Internal Enhanced Frequency Compensation

ORDERING INFORMATION

Normal

3308-D08-T

3308-P08-R

3308-S08-R

Ordering Number

Lead Free Plating

3308L-D08-T

3308L-P08-R

3308L-S08-R

Halogen Free

3308G-D08-T

3308G-P08-R

3308G-S08-R

Package

DIP-8

TSSOP-8

SOP-8

Packing

Tube

Tape Reel

www.unisonic.com.tw

1 of 6

QW-R105-012,F

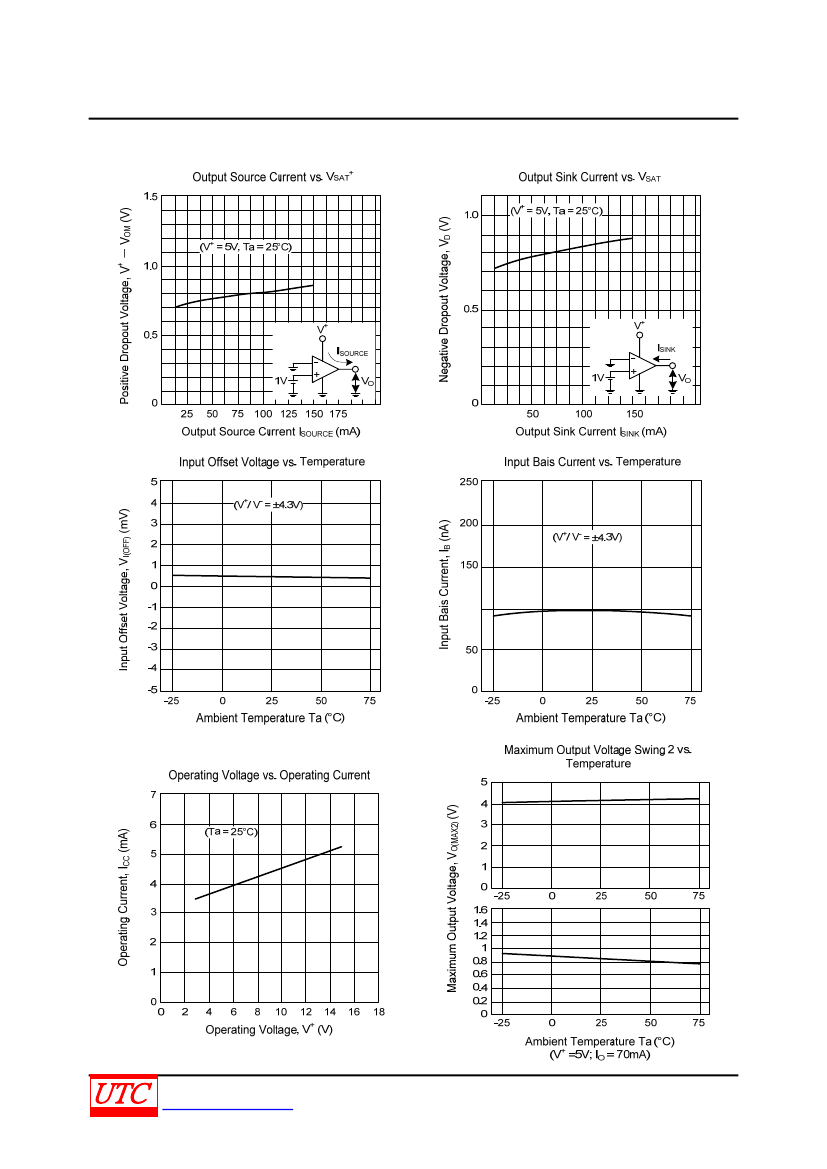

3308L-P08-R Related Products

	3308L-P08-R	3308	3308-D08-T	3308-P08-R	3308-S08-R	3308L-S08-R	3308_09
Description	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, DIP8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, DIP8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, DIP8
Is it Rohs certified?	conform to	-	incompatible	incompatible	incompatible	conform to	-
Maker	UNISONIC TECHNOLOGIES CO.,LTD	-	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	-
Parts packaging code	SOIC	-	DIP	SOIC	SOIC	SOIC	-
package instruction	TSSOP, TSSOP8,.25	-	DIP, DIP8,.3	TSSOP, TSSOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	-
Contacts	8	-	8	8	8	8	-
Reach Compliance Code	compli	-	compli	compli	compli	compli	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	-
Amplifier type	OPERATIONAL AMPLIFIER	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	-
Architecture	VOLTAGE-FEEDBACK	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	-
Maximum average bias current (IIB)	0.5 µA	-	0.5 µA	0.5 µA	0.5 µA	0.5 µA	-
Maximum bias current (IIB) at 25C	0.5 µA	-	0.5 µA	0.5 µA	0.5 µA	0.5 µA	-
Nominal Common Mode Rejection Ratio	90 dB	-	90 dB	90 dB	90 dB	90 dB	-
frequency compensation	YES	-	YES	YES	YES	YES	-
Maximum input offset voltage	5000 µV	-	5000 µV	5000 µV	5000 µV	5000 µV	-
JESD-30 code	R-PDSO-G8	-	R-XDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	-
length	4.4 mm	-	9.2 mm	4.4 mm	4.92 mm	4.92 mm	-
low-dissonance	NO	-	NO	NO	NO	NO	-
Number of functions	2	-	2	2	2	2	-
Number of terminals	8	-	8	8	8	8	-
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-20 °C	-	-20 °C	-20 °C	-20 °C	-20 °C	-
Package body material	PLASTIC/EPOXY	-	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	TSSOP	-	DIP	TSSOP	SOP	SOP	-
Encapsulate equivalent code	TSSOP8,.25	-	DIP8,.3	TSSOP8,.25	SOP8,.25	SOP8,.25	-
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	-	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	-
method of packing	TAPE AND REEL	-	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5 V	-	5 V	5 V	5 V	5 V	-
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	1.2 mm	-	4.31 mm	1.2 mm	1.96 mm	1.96 mm	-
Nominal slew rate	1 V/us	-	1 V/us	1 V/us	1 V/us	1 V/us	-
Maximum slew rate	5 mA	-	5 mA	5 mA	5 mA	5 mA	-
Supply voltage upper limit	15 V	-	15 V	15 V	15 V	15 V	-
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V	5 V	-
surface mount	YES	-	NO	YES	YES	YES	-
technology	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-
Temperature level	OTHER	-	OTHER	OTHER	OTHER	OTHER	-
Terminal form	GULL WING	-	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	-
Terminal pitch	0.65 mm	-	2.54 mm	0.65 mm	1.27 mm	1.27 mm	-
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Nominal Uniform Gain Bandwidth	1300 kHz	-	1300 kHz	1300 kHz	1300 kHz	1300 kHz	-
Minimum voltage gain	25110	-	25110	25110	25110	25110	-
width	3.05 mm	-	7.62 mm	3.05 mm	3.95 mm	3.95 mm	-
